# Why JSX?

GenSX uses JSX for workflow composition because it's a natural fit for the programming model. Most people think of React and frontend when JSX is mentioned, so choosing it for a backend workflow orchestration framework may seem surprising.

This page explains why JSX is a perfect fit for anyone building LLM applications, whether it be simple linear workflows or complex cyclical agents. At the end of the day, building agents and workflows is all about constructing a dataflow graph. And agents in particular need to dynamically branch and execute conditionally at runtime. This is exactly what GenSX excels at.

Read the full blog post on [why a React-like model perfect for building agents and workflows](/blog/why-react-is-the-best-backend-workflow-engine).

## Why not graphs?

Graph APIs are the standard for LLM frameworks. They provide APIs to define nodes, edges between those nodes, and a global state object that is passed around the workflow.

A workflow for writing a blog post might look like this:

```tsx
const graph = new Graph()
  .addNode("hnCollector", collectHNStories)
  .addNode("analyzeHNPosts", analyzePosts)
  .addNode("trendAnalyzer", analyzeTrends)
  .addNode("pgEditor", editAsPG)
  .addNode("pgTweetWriter", writeTweet);

graph
  .addEdge(START, "hnCollector")
  .addEdge("hnCollector", "analyzeHNPosts")
  .addEdge("analyzeHNPosts", "trendAnalyzer")
  .addEdge("trendAnalyzer", "pgEditor")
  .addEdge("pgEditor", "pgTweetWriter")
  .addEdge("pgTweetWriter", END);
```

Can you easily read this code and visualize the workflow?

On the other hand, the same workflow with GenSX and JSX reads top to bottom like a normal programming language:

```tsx
<HNCollector limit={postCount}>
  {(stories) => (
    <AnalyzeHNPosts stories={stories}>
      {({ analyses }) => (
        <TrendAnalyzer analyses={analyses}>
          {(report) => (
            <Editor content={report}>
              {(editedReport) => (
                <TweetWriter
                  context={editedReport}
                  prompt="Summarize the HN trends in a tweet"
                />
              )}
            </Editor>
          )}
        </TrendAnalyzer>
      )}
    </AnalyzeHNPosts>
  )}
</HNCollector>
```

As you'll see in the next section, trees are just another kind of graph and you can express all of the same things.

## Graphs, DAGs, and trees

Most workflow frameworks use explicit graph construction with nodes and edges. This makes sense - workflows are fundamentally about connecting steps together, and graphs are a natural way to represent these connections.

Trees are just a special kind of graph - one where each node has a single parent. At first glance, this might seem more restrictive than a general graph. But JSX gives us something powerful: the ability to express _programmatic_ trees.

Consider a cycle in a workflow:

```tsx
const AgentWorkflow = gensx.Component<{}, AgentWorkflowOutput>(
  "AgentWorkflow",
  <AgentStep>
    {(result) =>
      result.needsMoreWork ? (
        <AgentWorkflow /> // Recursion creates AgentWorkflow -> AgentStep -> AgentWorkflow -> etc.
      ) : (
        result
      )
    }
  </AgentStep>,
);
```

This tree structure visually represents the workflow, and programmatic JSX and typescript allow you to express cycles through normal programming constructs. This gives you the best of both worlds:

- Visual clarity of a tree structure
- Full expressiveness of a graph API
- Natural control flow through standard TypeScript
- No explicit edge definitions needed

JSX isn't limited to static trees. It gives you a way to express dynamic, programmatic trees that can represent any possible workflow.

## Pure functional components

GenSX uses JSX to encourage a functional component model, enabling you to compose your workflows from discrete, reusable steps.

Functional and reusable components can be published and shared on `npm`, and it's easy to test and evaluate them in isolation.

Writing robust evals is the difference between a prototype and a high quality AI app. Usually you start with end to end evals, but as workflows grow these become expensive, take a long time to run, and it can be difficult to isolate and understand the impact of changes in your workflow.

By breaking down your workflow into discrete components, you can write more focused evals that are easier to run, faster to complete, and test the impact of specific changes in your workflow.

## Nesting via child functions

Standard JSX allows you to nest components to form a tree:

```tsx
<div>
  <button>Click me</button>
</div>
```

GenSX extends this with the ability to nest components via child functions. The output of any component can be accessed as a child function, giving a simple pattern to chain workflow steps together:

{/* prettier-ignore-start */}
```tsx
<StepOne>
    {(result) => <StepTwo input={result} />}
</StepOne>
```
{/* prettier-ignore-end */}

## Programming language native

JSX with TypeScript gives you everything you expect from a modern programming language:

- Conditionals via `if`, `??`, and other standard primitives
- Looping via `for` and `while`
- Vanilla function calling
- Type safety

No DSL required, just standard TypeScript.

## Familiar mental model

If you've used React, GenSX will feel familiar even though there are some differences.

- The tree structure is the same.
- Elements can be composed and nested.
- It uses a similar `Provider` and `Context` pattern for passing minimal configuration where necessary.
- Familiar syntax and type safety.

# TypeScript Compatibility

GenSX is designed to be compatible with TypeScript. This page has some tips and tricks for using GenSX with TypeScript.

## Minimum TypeScript Version

GenSX requires TypeScript version 5.1 or higher.

## TypeScript Configuration

- `target` should be set to at least `es6`
- `module` should be set to at least `es6`
- `jsx` should be set to `react-jsx`
- `jsxImportSource` should be set to `@gensx/core`

### JSX Pragmas

If you are unable to change the `jsx` or `jsxImportSource` settings in your TypeScript configuration, you can use the following pragmas to enable GenSX:

```tsx
/** @jsxRuntime automatic */
/** @jsxImportSource @gensx/core */
```

## JavaScript Compatibility

GenSX is bundled with builds for both CommonJS and ESM. This means that you can use GenSX in any environment that supports either of these module formats.

When using GenSX in a TypeScript project that targets CommonJS, you may need to configure the paths so that the TypeScript compiler can properly resolve the GenSX types.

```json
{
  "compilerOptions": {
    "paths": {
      "@gensx/core/jsx-runtime": [
      "./node_modules/@gensx/core/dist/cjs/jsx-runtime"
      ],
      "@gensx/core/jsx-dev-runtime": [
        "./node_modules/@gensx/core/dist/cjs/jsx-dev-runtime",
      ],
    },
  },
};
```

# Quickstart

In this quickstart, you'll learn how to get up and running with GenSX. GenSX is a simple typescript framework for building complex LLM applications using JSX. If you haven't already, check out the [basic concepts](/docs/basic-concepts) to learn more about how GenSX works.

## Prerequisites

Before getting started, make sure you have the following:

- [Node.js](https://nodejs.org/) version 20 or higher installed
- An [OpenAI API key](https://platform.openai.com/api-keys) with access to the required models
- A package manager of your choice ([npm](https://www.npmjs.com/), [yarn](https://yarnpkg.com/), or [pnpm](https://pnpm.io/))

## Install the `gensx` CLI

You can install the `gensx` CLI using your package manager of choice:

```bash
# For a global installation
npm i -g gensx

# or prefix every command with npx
npx gensx
```

## Login to GenSX Cloud (optional)

If you want to be able to visualize your workflows and view traces, you'll need to login to GenSX Cloud:

![blog writing trace](/quickstart/blog-trace.png)

Run the following command to log into GenSX Cloud:

```bash
# If you installed the CLI globally
gensx login

# Using npx
npx gensx login
```

Now traces will automatically be saved to the cloud so you can visualize and debug workflow executions, but this step is optional and you can skip it for now if you prefer.

![gensx login](/quickstart/gensx-login.png)

Hit enter and your browser will open the login page.

![console login](/quickstart/login.png)

Once you've logged in, you'll see the following success message:

![login success](/quickstart/login-success.png)

Now you're ready to create a new workflow! Return to your terminal for the next steps.

## Create a new workflow

To get started, run the following command with your package manager of choice in an empty directory. This will create a new GenSX workflow to get you started.

```bash
# If you installed the CLI globally
gensx new .

# Using npx
npx gensx new .
```

When creating a new project, you'll be prompted to select IDE rules to add to your project. These rules help AI assistants like Claude, Cursor, Cline, and Windsurf understand your GenSX project better, providing more accurate code suggestions and help.

You can also specify IDE rules directly using the `--ide-rules` flag:

```bash
# Install Cline and Windsurf rules
gensx new . --ide-rules cline,windsurf

# Skip IDE rule selection
gensx new . --skip-ide-rules
```

You can also install or update these rules later using npx:

```bash
# Install Claude.md template
npx @gensx/claude-md

# Install Cursor rules
npx @gensx/cursor-rules

# Install Cline rules
npx @gensx/cline-rules

# Install Windsurf rules
npx @gensx/windsurf-rules
```

This will create a new started project, ready for you to run your first workflow:

![create project](/quickstart/gensx-new.png)

In `index.tsx`, you'll find a simple OpenAI chat completion component:

```tsx
import * as gensx from "@gensx/core";
import { OpenAIProvider, ChatCompletion } from "@gensx/openai";

interface RespondProps {
  userInput: string;
}
type RespondOutput = string;

const Respond = gensx.Component<RespondProps, RespondOutput>(
  "Respond",
  async ({ userInput }) => {
    return (
      <ChatCompletion
        model="gpt-4o-mini"
        messages={[
          {
            role: "system",
            content:
              "You are a helpful assistant. Respond to the user's input.",
          },
          { role: "user", content: userInput },
        ]}
      />
    );
  },
);

const WorkflowComponent = gensx.Component<{ userInput: string }, string>(
  "Workflow",
  ({ userInput }) => (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <Respond userInput={userInput} />
    </OpenAIProvider>
  ),
);

const workflow = gensx.Workflow("MyGSXWorkflow", WorkflowComponent);

const result = await workflow.run({
  userInput: "Hi there! Say 'Hello, World!' and nothing else.",
});

console.log(result);
```

The component is executed through `gensx.Workflow.run()`, which processes the JSX tree from top to bottom. In this example:

1. First, the `OpenAIProvider` component is initialized with your API key
2. Then, the `Respond` component receives the `userInput` prop
3. Inside `Respond`, a `ChatCompletion` component is created with the specified model and messages
4. The result flows back up through the tree, ultimately returning the response from gpt-4o-mini.

Components in GenSX are pure functions that take props and return outputs, making them easy to test and compose. The JSX structure makes the data flow clear and explicit - each component's output can be used by its children through standard TypeScript/JavaScript.

### Running the workflow

To run the workflow, you'll need to set the `OPENAI_API_KEY` environment variable.

```bash
# Set the environment variable
export OPENAI_API_KEY=<your-api-key>

# Run the project
pnpm dev
```

![run project](/quickstart/gensx-run.png)

If you chose to log in, you can now view the trace for this run in GenSX Cloud by clicking the link:

![trace](/quickstart/trace.png)

The trace shows a flame graph of your workflow, including every component that executed with inputs and outputs.

Some components will be hidden by default, but you can click the carat to expand them. Clicking on a component will show you details about it's input props and outputs.

For longer running workflows, this view will update in real time as the workflow executes.

## Combining components

The example above is a simple workflow with a single component. In practice, you'll often want to combine multiple components to create more complex workflows.

Components can be nested to create multi-step workflows with each component's output being passed through a child function. For example, let's define two components: a `Research` component that gathers information about a topic, and a `Writer` component that uses that information to write a blog post.

```tsx
// Research component that gathers information
const Research = gensx.Component<{ topic: string }, string>(
  "Research",
  async ({ topic }) => {
    return (
      <ChatCompletion
        model="gpt-4o-mini"
        messages={[
          {
            role: "system",
            content:
              "You are a research assistant. Provide key facts about the topic.",
          },
          { role: "user", content: topic },
        ]}
      />
    );
  },
);

// Writer component that uses research to write content
const WriteArticle = gensx.Component<
  { topic: string; research: string },
  string
>("WriteArticle", async ({ topic, research }) => {
  return (
    <ChatCompletion
      model="gpt-4o-mini"
      messages={[
        {
          role: "system",
          content:
            "You are a content writer. Use the research provided to write a blog post about the topic.",
        },
        { role: "user", content: `Topic: ${topic}\nResearch: ${research}` },
      ]}
    />
  );
});
```

Now you can combine these components using a child function:

```tsx
// Combine components using child functions
const ResearchAndWrite = gensx.Component<{ topic: string }, string>(
  "ResearchAndWrite",
  ({ topic }) => (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <Research topic={topic}>
        {(research) => <WriteArticle topic={topic} research={research} />}
      </Research>
    </OpenAIProvider>
  ),
);

const workflow = gensx.Workflow("ResearchAndWriteWorkflow", ResearchAndWrite, {
  printUrl: true,
});
```

In this example, the `Research` component gathers information about the topic which then passes the information to the `WriteArticle` component. The `WriteArticle` component uses that information to write an article about the topic which is then returned as the `result`.

### Streaming

One common challenge with LLM workflows is handling streaming responses. Any given LLM call can return a response as a string or as a stream of tokens. Typically you'll want the last component of your workflow to stream the response.

To take advantage of streaming, all you need to do is update the `WriteArticle` component to use `StreamComponent` and set the `stream` prop to `true` in the `ChatCompletion` component.

```tsx
interface WriterProps {
  topic: string;
  research: string;
  stream?: boolean;
}

const Writer = gensx.StreamComponent<WriterProps>(
  "Writer",
  async ({ topic, research, stream }) => {
    return (
      <ChatCompletion
        stream={stream ?? false}
        model="gpt-4o-mini"
        messages={[
          {
            role: "system",
            content:
              "You are a content writer. Use the research provided to write a blog post about the topic.",
          },
          { role: "user", content: `Topic: ${topic}\nResearch: ${research}` },
        ]}
      />
    );
  },
);

const ResearchAndWrite = gensx.Component<{ topic: string }, string>(
  "ResearchAndWrite",
  ({ topic }) => (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <Research topic={topic}>
        {(research) => (
          <Writer
            topic="latest quantum computing chips"
            research={research}
            stream={true}
          />
        )}
      </Research>
    </OpenAIProvider>
  ),
);

const workflow = gensx.Workflow("ResearchAndWriteWorkflow", ResearchAndWrite);
const stream = await workflow.run(
  { topic: "latest quantum computing chips" },
  { printUrl: true },
);

// Print the streaming response
for await (const chunk of stream) {
  process.stdout.write(chunk);
}
```

Now we can see our research step running before the write step:

![streaming](/quickstart/writer-trace.png)

While this is nice, the real power of streaming components comes when you expand or refactor your workflow. Now you could easily add an `<EditArticle>` component to the workflow that streams the response to the user with minimal changes. There's no extra plumbing needed besides removing the `stream={true}` prop on the `WriteArticle` component.

```tsx
const ResearchAndWrite = gensx.Component<{ topic: string }, string>(
  "ResearchAndWrite",
  ({ topic }) => (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <Research topic={topic}>
        {(research) => (
        <WriteArticle topic={topic} research={research}>
          {(content) => <EditArticle content={content} stream={true}/>}
        </WriteArticle>
      )}
    </Research>
  </OpenAIProvider>,
);

const workflow = gensx.Workflow("ResearchAndWriteWorkflow", ResearchAndWrite, { printUrl: true });
const stream = await workflow.run({ topic: "latest quantum computing chips" });
```

![blog writing trace](/quickstart/blog-trace.png)

## Running the dev server

Now that you've built your workflows, you can easily turn them into REST APIs.

GenSX provides a local development server with local REST APIs that match the shape of workflows deployed to GenSX Cloud. You can run the dev server from the CLI:

```bash
# Start the development server
gensx start src/workflows.tsx
```

The development server provides several key features:

- **Hot reloading**: Changes to your code are automatically detected and recompiled
- **API endpoints**: Each workflow is exposed as a REST endpoint
- **Swagger UI**: Interactive documentation for your workflows at `http://localhost:1337/swagger-ui`
- **Local storage**: Built-in support for blob storage and databases

You'll see something like this when you start the server:

```bash
🔍 Starting GenSX Dev Server...
ℹ Starting development server...
✔ Compilation completed
✔ Generating schema

📋 Available workflows:
- ResearchAndWriteWorkflow: http://localhost:1337/workflows/ResearchAndWriteWorkflow

✅ Server is running. Press Ctrl+C to stop.
```

You can now test your workflow by sending requests to the provided URL using any HTTP client, or using the built-in Swagger UI at `http://localhost:1337/swagger-ui`.

## Deploying your project to GenSX Cloud

Now that you've tested your APIs locally, you can deploy them to the cloud. GenSX Cloud provides serverless deployment with zero configuration:

```bash
# Deploy your project to GenSX Cloud
gensx deploy src/workflows.tsx -ev OPENAI_API_KEY
```

This command:

1. Builds your TypeScript code for production
2. Bundles all dependencies
3. Uploads the package to GenSX Cloud
4. Creates REST API endpoints for each workflow
5. Configures serverless infrastructure

For production deployments, you can target a specific environment:

```bash
# Deploy to production environment
gensx deploy src/index.ts --env production
```

### Running a workflow from the CLI

Once deployed, you can execute your workflows directly from the command line:

```bash
# Run a workflow synchronously
gensx run ResearchAndWriteWorkflow --input '{"topic":"quantum computing"}'

# Save the output to a file
gensx run ResearchAndWriteWorkflow --input '{"topic":"quantum computing"}' --output result.json
```

The CLI makes it easy to test your workflows and integrate them into scripts or automation.

### Running a workflow from the GenSX console

The GenSX Cloud console provides a visual interface for managing and executing your workflows:

1. Log in to [app.gensx.com](https://app.gensx.com)
2. Navigate to your project and environment
3. Select the workflow you want to run
4. Click the "Run" button and enter your input
5. View the results directly in the console

![Running a workflow in the console](/cloud/console-playground.png)

The console also provides API documentation and code snippets for your workflows as well as execution history and tracing for all previous workflow runs.

## Adding persistence with storage

Now that you've deployed your first workflow, you can add in storage so you can build more sophisticated workflows. GenSX offers three types of builtin storage: blob storage, sql database storage and, full text and vector search storage.

### Blob storage

Use the `useBlob` hook to store and retrieve unstructured data:

```tsx
import { BlobProvider, useBlob } from "@gensx/storage";

const ChatWithMemory = gensx.Component<
  { userInput: string; threadId: string },
  string
>("ChatWithMemory", async ({ userInput, threadId }) => {
  // Load chat history from cloud storage
  const blob = useBlob<ChatMessage[]>(`chat-history/${threadId}.json`);
  const history = (await blob.getJSON()) ?? [];

  // Add user message and get AI response
  // ...

  // Save updated history
  await blob.putJSON(updatedHistory);

  return response;
});

// Wrap your workflow with BlobProvider
const WorkflowComponent = gensx.Component<
  { userInput: string; threadId: string },
  string
>("Workflow", ({ userInput, threadId }) => (
  <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
    <BlobProvider>
      <ChatWithMemory userInput={userInput} threadId={threadId} />
    </BlobProvider>
  </OpenAIProvider>
));
```

### SQL database

Use the `useDatabase` hook for structured data:

```tsx
import { DatabaseProvider, useDatabase } from "@gensx/storage";

const SqlCopilot = gensx.Component<{ question: string }, string>(
  "SqlCopilot",
  async ({ question }) => {
    const db = await useDatabase("baseball");

    // Set up schema if needed
    await db.executeMultiple(`
      CREATE TABLE IF NOT EXISTS baseball_stats (
        player TEXT PRIMARY KEY,
        team TEXT,
        batting_avg REAL
      )
    `);

    // Execute query
    const result = await db.execute("SELECT * FROM baseball_stats LIMIT 5");

    // Use the result to inform your LLM response
    // ...

    return response;
  },
);

// Wrap your workflow with DatabaseProvider
const WorkflowComponent = gensx.Component<{ question: string }, string>(
  "DatabaseWorkflowComponent",
  ({ question }) => (
    <DatabaseProvider>
      <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
        <SqlCopilot question={question} />
      </OpenAIProvider>
    </DatabaseProvider>
  ),
);
```

### Full-text and vector search

Use the `useSearch` hook for semantic search and RAG applications:

```tsx
import { SearchProvider, useSearch } from "@gensx/storage";
import { OpenAIEmbedding } from "@gensx/openai";

const SemanticSearch = gensx.Component<{ query: string }, any[]>(
  "SemanticSearch",
  async ({ query }) => {
    // Access a vector search namespace
    const namespace = await useSearch("documents");

    // Generate an vector embedding for the query
    const embedding = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: query,
    });

    // Search for similar documents
    const results = await namespace.query({
      vector: embedding.data[0].embedding,
      topK: 5,
      includeAttributes: true,
    });

    return results;
  },
);

// Wrap your workflow with SearchProvider
const WorkflowComponent = gensx.Component<{ query: string }, any[]>(
  "SearchWorkflow",
  ({ query }) => (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <SearchProvider>
        <SemanticSearch query={query} />
      </SearchProvider>
    </OpenAIProvider>
  ),
);
```

## Learning more

Explore these resources to dive deeper into GenSX:

- [Serverless Deployments](/docs/cloud/serverless-deployments): Deploy and manage your workflows in the cloud
- [Local Development](/docs/cloud/local-development): Set up a productive local environment
- [Storage Components](/docs/component-reference/storage-components): Persistent storage for your workflows
- [Observability & Tracing](/docs/cloud/observability): Debug and monitor your workflows
- [Projects & Environments](/docs/cloud/projects-environments): Organize your deployments

Check out these example projects to see GenSX in action:

- [Blog Writer](https://github.com/gensx-inc/gensx/tree/main/examples/blogWriter)
- [Chat with Memory](https://github.com/gensx-inc/gensx/tree/main/examples/chat-memory)
- [Text to SQL](https://github.com/gensx-inc/gensx/tree/main/examples/text-to-sql)
- [RAG](https://github.com/gensx-inc/gensx/tree/main/examples/rag)

# GenSX Overview

GenSX is a simple TypeScript framework for building complex LLM applications. It’s a workflow engine designed for building agents, chatbot APIs, and more using common patterns like RAG and reflection. In addition, GenSX Cloud offers serverless hosting, cloud storage, and tracing and observability to build production-ready agents and workflows.

It uses `jsx` to define and orchestrate workflows with functional, reusable components:

{/* prettier-ignore-start */}

```tsx
const WriteBlog = gensx.Component<WriteBlogProps, string>(
  "WriteBlog",
  async ({ prompt }) => {
    return (
      <WriteDraft prompt={prompt}>
        {(blog) => (
          <EditDraft draft={blog}>
        {(draft) => console.log(draft)}
      </WriteDraft>
    )}
  </WriteBlog>,
);

const workflow = gensx.Workflow("WriteBlogWorkflow", WriteBlog);
const result = await workflow.run({ prompt: "Write a blog post about AI developer tools" });
```

{/* prettier-ignore-end */}

Most LLM frameworks are graph oriented, inspired by popular python tools like Airflow. You express nodes, edges, and a global state object for your workflow. While graph APIs are highly expressive, they are also cumbersome:

- Building a mental model and visualizing the execution of a workflow from a node/edge builder is difficult.
- Global state makes refactoring difficult.
- All of this leads to low velocity when experimenting with and evolving your LLM workflows.

LLM workflows are fundamentally about function composition and data flow - exactly what JSX was designed to express. There is no need for a graph DSL. GenSX expresses control flow, loops, and recursion using plain old typescript language primitives. To learn more about why GenSX uses JSX, read [Why JSX?](docs/why-jsx).

While GenSX uses JSX, it does not share the same execution model as React, and has zero dependencies.

## GenSX Cloud

[GenSX Cloud](/docs/cloud) provides everything you need to ship production grade agents and workflow including a serverless runtime designed for long-running workloads, cloud storage to build stateful workflows and agents, and tracing and observability.

### Serverless deployments

Deploy any workflow to a hosted API endpoint with a single command. The GenSX cloud platform handles scaling, infrastructure management, and API generation automatically:

```bash
# Deploy your workflow to GenSX Cloud
$ gensx deploy ./src/workflows.tsx
```

```bash
✔ Building workflow using Docker
✔ Generating schema

✔ Successfully built project

ℹ Using project name from gensx.yaml: support-tools
✔ Deploying project to GenSX Cloud (Project: support-tools)

✔ Successfully deployed project to GenSX Cloud

Dashboard: https://app.gensx.com/gensx/support-tools/default/workflows

Available workflows:
- ChatAgent
- TextToSQLWorkflow
- RAGWorkflow
- AnalyzeDiscordWorkflow

Project: support-tools
Environment: default
```

The platform is optimized for AI workloads with millisecond-level cold starts and support for long-running executions up to an hour.

### Tracing and observability

GenSX Cloud provides comprehensive tracing and observability for all your workflows and agents.

![Workflow component tree](/cloud/trace.png)

Inputs and outputs are recorded for every component that executes in your workflows, including prompts, tool calls, and token usage. This makes it easy to debug hallucinations, prompt upgrades, and monitor costs.

![Component trace](/cloud/component-trace.png)

### Cloud Storage

Build stateful AI applications with zero configuration using built-in storage primitives that provide managed blob storage, SQL databases, and full-text + vector search:

```tsx
const ChatWithMemory = gensx.Component<ChatWithMemoryProps, string>(
  "ChatWithMemory",
  async (props) => {
    const { userInput, threadId } = props;

    // Load chat history from blob storage
    const blob = useBlob<ChatMessage[]>(`chat-history/${threadId}.json`);
    const history = await blob.getJSON();

    // Add new message and run LLM
    // ...

    // Save updated history
    await blob.putJSON(updatedHistory);

    return response;
  },
);
```

For more details about GenSX Cloud see the [complete cloud reference](/docs/cloud).

## Reusable by default

GenSX components are pure functions, depend on zero global state, and are _reusable_ by default. Components accept `props` and return an output.

```tsx
interface ResearchTopicProps {
  topic: string;
}
type ResearchTopicOutput = string;
const ResearchTopic = gensx.Component<ResearchTopicProps, ResearchTopicOutput>(
  "ResearchTopic",
  async ({ topic }) => {
    console.log("📚 Researching topic:", topic);
    const systemPrompt = `You are a helpful assistant that researches topics...`;

    return (
      <ChatCompletion
        model="gpt-4o-mini"
        temperature={0}
        messages={[
          { role: "system", content: systemPrompt },
          { role: "user", content: topic },
        ]}
      />
    );
  },
);
```

Because components are pure functions, they are easy to test and eval in isolation. This enables you to move quickly and experiment with the structure of your workflow.

A second order benefit of reusability is that components can be _shared_ and published to package managers like `npm`. If you build a functional component, you can make it available to the community - something that frameworks that depend on global state preclude by default.

## Composition

All GenSX components support nesting, a pattern to access component outputs via a child function. This creates a natural way to pass data between steps:

```tsx
export const WriteBlog = gensx.StreamComponent<WriteBlogProps>(
  "WriteBlog",
  async ({ prompt }) => {
    return (
      <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
        <Research prompt={prompt}>
          {(research) => (
            <WriteDraft prompt={prompt} research={research.flat()}>
              {(draft) => <EditDraft draft={draft} stream={true} />}
            </WriteDraft>
          )}
        </Research>
      </OpenAIProvider>
    );
  },
);
```

There is no need for a DSL or graph API to define the structure of your workflow. More complex patterns like cycles and agents can be encapsulated in components that use standard loops and conditionals. Typescript and JSX unifies workflow definition and execution in plain old typescript, with the ability to express all of the same patterns.

## Visual clarity

Workflow composition with JSX reads naturally from top to bottom like a standard programming language.

```tsx
<FetchHNPosts limit={postCount}>
  {(stories) => (
    <AnalyzeHNPosts stories={stories}>
      {({ analyses }) => (
        <GenerateReport analyses={analyses}>
          {(report) => (
            <EditReport content={report}>
              {(editedReport) => (
                <WriteTweet
                  context={editedReport}
                  prompt="Summarize the HN trends in a tweet"
                />
              )}
            </EditReport>
          )}
        </GenerateReport>
      )}
    </AnalyzeHNPosts>
  )}
</FetchHNPosts>
```

Contrast this with graph APIs, where you need to build a mental model of the workflow from a node/edge builder:

```tsx
const graph = new Graph()
  .addNode("fetchHNPosts", fetchHNPosts)
  .addNode("analyzeHNPosts", analyzePosts)
  .addNode("generateReport", generateReport)
  .addNode("editReport", editReport)
  .addNode("writeTweet", writeTweet);

graph
  .addEdge(START, "fetchHNPosts")
  .addEdge("fetchHNPosts", "analyzeHNPosts")
  .addEdge("analyzeHNPosts", "generateReport")
  .addEdge("generateReport", "editReport")
  .addEdge("editReport", "writeTweet")
  .addEdge("writeTweet", END);
```

Nesting makes dependencies explicit, and it is easy to see the data flow between steps. No graph DSL required.

## Streaming baked in

LLMs are unique in that any given call can return a stream or a prompt response, but streaming is typically applied to just the last step. You shouldn't have to touch the innards of your components to experiment with the shape of your workflow.

GenSX makes this easy to handle with `StreamComponent`.

A single component implementation can be used in both streaming and non-streaming contexts by setting the `stream` prop:

```tsx
const EditDraft = gensx.StreamComponent<EditDraftProps>(
  "EditDraft",
  async ({ draft }) => {
    console.log("🔍 Editing draft");
    const systemPrompt = `You are a helpful assistant that edits blog posts...`;

    return (
      <ChatCompletion
        stream={true}
        model="gpt-4o-mini"
        temperature={0}
        messages={[
          { role: "system", content: systemPrompt },
          { role: "user", content: draft },
        ]}
      />
    );
  },
);
```

From there you can use the component in a streaming context:

```tsx
const stream = await gensx
  .Workflow("EditDraftWorkflow", EditDraft)
  .run({ draft, stream: true });

for await (const chunk of stream) {
  process.stdout.write(chunk);
}
```

And you can use the component in a non-streaming context:

```tsx
const result = await gensx
  .Workflow("EditDraftWorkflow", EditDraft)
  .run({ draft, stream: false });

console.log(result);
```

## Designed for velocity

The GenSX programming model is optimized for speed of iteration in the long run.

The typical journey building an LLM application looks like:

1. Ship a prototype that uses a single LLM prompt.
2. Add in evals to measure progress.
3. Add in external context via RAG.
4. Break tasks down into smaller discrete LLM calls chained together to improve quality.
5. Add advanced patterns like reflection, and agents.

Experimentation speed depends on the ability to refactor, rearrange, and inject new steps. In our experience, this is something that frameworks that revolve around global state and a graph model slow down.

The functional component model in GenSX support an iterative loop that is fast on day one through day 1000.

# Basic concepts

GenSX is a simple typescript framework for building complex LLM applications. It's built around functional, reusable components that are composed using JSX to create and orchestrate workflows.

## Components

Components are the building blocks of GenSX applications; they're pure TypeScript functions that:

- Accept props as input
- Produce an output that can be used by other components or returned as the result of the workflow
- Don't depend on global state
- Are strongly typed using TypeScript

When you define a component, you need to include four things:

1. The input type, or props, for the component
2. The output type for the component
3. The name of the component that's used for telemetry, tracing, visualization, and caching
4. The function that produces the component's output

Here's an example of a simple component:

```tsx
interface GreetUserProps {
  name: string;
}
type GreetUserOutput = string;

const GreetUser = gensx.Component<GreetUserProps, GreetUserOutput>(
  "GreetUser",
  async ({ name }) => {
    return `Hello, ${name}!`;
  },
);
```

Components can return data as well as other components. Here's an example of a component that returns another component:

```tsx
const GreetUser = gensx.Component<GreetUserProps, GreetUserOutput>(
  "GreetUser",
  async ({ name }) => {
    return (
      <ChatCompletion
        model="gpt-4o-mini"
        messages={[
          {
            role: "system",
            content: "You are a friendly assistant that greets people warmly.",
          },
          { role: "user", content: `Write a greeting for ${name}.` },
        ]}
      />
    );
  },
);
```

Components can also return arrays and structured objects containing other components. The pattern also works with array operations like `map` for processing items in parallel.

```tsx
const AnalyzePosts = gensx.Component<AnalyzePostsProps, AnalyzePostsOutput>(
  "AnalyzePosts",
  ({ posts }) => ({
    analyses: posts.map((post) => ({
      summary: <PostSummarizer post={post} />,
      commentAnalysis: (
        <CommentsAnalyzer postId={post.id} comments={post.comments} />
      ),
    })),
  }),
);
```

In this example, `AnalyzePosts` will produce an array of objects that contains the `summaries` and `commentAnalysis` for each post. GenSX handles resolving all of the nested components and collects them into a final value for you.

## JSX and data flow

GenSX uses JSX to compose components into workflows. The output of a parent component can be passed to a child component through a child function. This pattern enables you to create chains of components where each step's output feeds into the next component's input.

When components are combined, they will return the value of the innermost component.

```tsx
// Parent receives output from ChildComponent through the child function
<ParentComponent input="some data">
  {(parentResult) => <ChildComponent data={parentResult} />}
</ParentComponent>
```

Unlike React's concurrent rendering model, GenSX evaluates your workflow as a dependency graph. Components execute in parallel whenever possible, while automatically ensuring that all required inputs are available before a component starts executing.

While GenSX uses a [tree-based structure with JSX](https://gensx.com/docs/why-jsx/#graphs-dags-and-trees), it still supports all the capabilities you'd expect from graph-based workflows including representing cyclic and agentic patterns.

## Component types

GenSX provides two main types of components:

1. **Components** (`gensx.Component`) - Components that produce an output value and can handle both synchronous and asynchronous operations
2. **Streaming Components** (`gensx.StreamComponent`) - Components designed to handle responses from LLMs, working in both streaming and non-streaming contexts

The power of a `StreamComponent` is that a single implementation can be used interchangeably in both streaming and non-streaming contexts without any code changes - you just toggle the `stream` prop:

```tsx
// Returns a string when executed
<MyStreamingComponent input="some data" stream={false} />

// Returns a stream when executed
<MyStreamingComponent input="some data" stream={true} />
```

## Running workflows

Workflows and components are synonymous in GenSX. You'll often design workflows that are composed of multiple components, but they can also just be a single component. Regardless, you'll need to define a top level component that will be used to run the workflow. You can then use `gensx.Workflow().run(props)` to run the workflow:

```tsx
const result = await gensx
  .Workflow("MyWorkflow", MyComponent)
  .run({ input: "some data" });
```

When components are run via a workflow, GenSX processes the JSX tree from top to bottom while executing components in parallel wherever possible.

Because workflows are just components, you can run and evaluate them in isolation, making it easy to debug and verify individual steps of your workflow. This is particularly valuable when building complex LLM applications that need robust evaluation.

Rather than having to run an entire workflow to test a change to a single component, you can test just that component, dramatically speeding up your dev loop. This isolation also makes unit testing more manageable, as you can create specific test cases without having to worry about the rest of the workflow.

## Executing sub-workflows

In some cases, you may need to run a sub-workflow within a larger workflow. You can do this using the `run()` method on a component:

```tsx
const result = await MyComponent.run({ input: "some data" });
```

This allows you to work with a component in TypeScript without having to drop into the JSX layer. When used inside a component, `Component.run()` preserves the current context and maintains the component hierarchy so the calls will integrate naturally with the rest of the workflow.

Sub-workflows are especially useful for more complex operations like map/reduce:

```tsx
const AnalyzeReviews = gensx.Component<
  AnalyzeReviewsProps,
  AnalyzeReviewsOutput
>("AnalyzeReviews", async ({ reviews }) => {
  // Map: Extract topics from each review in parallel using the <GetTopic> component
  const topics = reviews.map((r) => GetTopic.run({ review: r }));

  // Reduce: Count frequency of each topic
  return topics.reduce(
    (counts, topic) => ({ ...counts, [topic]: (counts[topic] || 0) + 1 }),
    {},
  );
});
```

You can also use `gensx.execute()` to execute a sub-workflow. One benefit of this is that you can execute a tree without assigning it to a component:

```tsx
const result = await gensx.execute(
  <Parent input="some data">
    {(parentResult) => <Child data={parentResult} />}
  </Parent>,
);
```

## Contexts

Contexts provide a way to share data across components without explicitly passing them through props. They're similar to React's Context API but adapted for GenSX workflows. Contexts are particularly useful for:

- Sharing configuration across multiple components
- Providing dependencies to deeply nested components
- Managing state that needs to be accessed by multiple components

Here's how to create and use a context:

```tsx
interface GreetUserProps {
  name: string;
}

// Create a context with a default value
const UserContext = gensx.createContext({ name: "" });

// Use the context in a component
const GreetUser = gensx.Component<{}, string>("GreetUser", () => {
  const user = gensx.useContext(UserContext);
  return `Hello, ${user.name}!`;
});

// Provide a value to the context
const ContextExample = gensx.Component<{}, string>("ContextExample", () => (
  <UserContext.Provider value={{ name: "John" }}>
    <GreetUser />
  </UserContext.Provider>
));
```

Contexts are a useful way to pass configuration without prop drilling. However, they do make your components less reusable so we recommend that you use them sparingly.

For more details on providers, see the [Context and Providers](/docs/concepts/context) page.

## Providers

Providers are a specialized use of contexts that focus on managing configuration and dependencies for your workflow. They're built using the context system described above, but provide a more focused API for configuration management.

The main provider available today is the `OpenAIProvider`, which manages your OpenAI API key:

```tsx
const BasicChat = gensx.Component<BasicChatProps, string>(
  "BasicChat",
  async ({ prompt }) => {
    return (
      <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
        <ChatCompletion
          model="gpt-4o-mini"
          messages={[{ role: "user", content: prompt }]}
        />
      </OpenAIProvider>
    );
  },
);
```

For more details on providers, see the [Context and Providers](/docs/concepts/context) page.

# Using tools with GenSX

Using tools provides a powerful and flexible way to extend the capabilities of an LLM. GenSX offers several different ways for you to work with tools:

- Using the `GSXChatCompletion` component from [@gensx/openai](../component-reference/openai.mdx) or [@gensx/anthropic](../component-reference/anthropic.mdx) for fully automated tool calling
- Using the `OpenAIChatCompletion` or `AnthropicChatCompletion` components from [@gensx/openai](../component-reference/openai.mdx) or [@gensx/anthropic](../component-reference/anthropic.mdx) and following the same pattern as described in the [OpenAI](https://platform.openai.com/docs/guides/function-calling?api-mode=responses) and [Anthropic](https://docs.anthropic.com/en/docs/build-with-claude/tool-use/overview) docs
- Using tools with the [Vercel AI SDK](https://sdk.vercel.ai/docs/ai-sdk-core/tools-and-tool-calling) via the [@gensx/vercel-ai-sdk](../component-reference/vercel-ai.mdx) package

This guide will focus on the first option: using `GSXTool` and the `GSXChatCompletion` component for automated tool calling. The examples below show how to work with the [@gensx/openai](../component-reference/openai.mdx) package but you can follow a similar pattern with the [@gensx/anthropic](../component-reference/anthropic.mdx) package.

## Defining a tool

Start by defining the tool. A `GSXTool` contains four main pieces:

- `name`: The name of the tool
- `description`: A description of the tool
- `schema`: The schema of the tool, defined as a Zod object
- `run`: The function that will be called when the tool is invoked by an LLM

Here's an example of a basic weather tool with mocked functionality:

```tsx
import { GSXTool } from "@gensx/openai";
import { z } from "zod";

// Define the schema as a Zod object
const weatherSchema = z.object({
  location: z.string(),
});

// Use z.infer to get the type for our parameters
type WeatherParams = z.infer<typeof weatherSchema>;

// Create the tool with the correct type - using the schema type, not the inferred type
const weatherTool = new GSXTool({
  name: "get_weather",
  description: "get the weather for a given location",
  schema: weatherSchema,
  run: async ({ location }: WeatherParams) => {
    console.log("getting weather for", location);
    const weather = ["sunny", "cloudy", "rainy", "snowy"];
    return Promise.resolve({
      weather: weather[Math.floor(Math.random() * weather.length)],
    });
  },
});
```

You can also define tools using `gensx.GSXToolProps` which allows you to create a tool independent of the @gensx/openai and @gensx/anthropic packages:

```tsx
import * as gensx from "@gensx/core";

const weatherToolProps: gensx.GSXToolProps = {
  name: "get_weather",
  // rest of the tool definition
};
```

## Using a tool

Now that the tool is defined, you can pass it to the `GSXChatCompletion` component in the `tools` prop.

If the model chooses to call the tool, GenSX will execute the tool on your behalf and return the response to the LLM to continue the conversation.

```tsx
const WeatherAssistant = gensx.Component<{}, ChatCompletionOutput>(
  "WeatherAssistant",
  () => (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <GSXChatCompletion
        messages={[
          {
            role: "system",
            content: "You're a helpful, friendly weather assistant.",
          },
          {
            role: "user",
            content: `Will it be sunny in San Diego today?`,
          },
        ]}
        model="gpt-4o-mini"
        temperature={0.7}
        tools={[weatherTool]}
      />
    </OpenAIProvider>
  ),
);

const workflow = gensx.Workflow("WeatherAssistantWorkflow", WeatherAssistant);

const result = await workflow.run({});

console.log(result.choices[0].message.content);
```

`GSXChatCompletion` also returns the full message history, including the tool calls, so you can see the sequence of events leading up to the response.

```tsx
console.log(JSON.stringify(result.messages, null, 2));
```

## Resources

For more examples of using tools with GenSX, see the following examples:

- [Anthropic tools example](https://github.com/gensx-inc/gensx/blob/main/examples/anthropic)
- [OpenAI tools example](https://github.com/gensx-inc/gensx/blob/main/examples/gsxChatCompletion)

# Structured outputs

Workflows regularly require getting structured outputs (JSON) from LLMs. GenSX supports an easy way to get structured outputs from an LLM by using the `GSXChatCompletion` component and Zod. However, you can also use the `response_format` prop to get a structured output from OpenAI models without using GenSX helpers, just like you would when using the OpenAI SDK or API.

This guide shows how to use structured outputs both with and without the helpers that GenSX provides. You can find the complete example code in the [structured outputs example](https://github.com/gensx-inc/gensx/tree/main/examples/structuredOutputs).

## Structured outputs with GSXChatCompletion

When using the `GSXChatCompletion` component, you can define the Zod schema for the output format you want and GenSX will handle the rest.

Start by defining the Zod schema for the output format you want:

```ts
import { z } from "zod";

const ExtractEntitiesSchema = z.object({
  people: z.array(z.string()),
  places: z.array(z.string()),
  organizations: z.array(z.string()),
});
```

Then define the input and output types for the component that will be used to get the structured output:

```tsx
interface ExtractEntitiesProps {
  text: string;
}

type ExtractEntitiesOutput = z.infer<typeof ExtractEntitiesSchema>;
```

Finally, define the component and set the `outputSchema` prop on the `GSXChatCompletion` component to get the output matching that schema:

```tsx
const ExtractEntities = gensx.Component<
  ExtractEntitiesProps,
  ExtractEntitiesOutput
>("ExtractEntities", ({ text }) => {
  const prompt = `Please review the following text and extract all the people, places, and organizations mentioned.

  <text>
  ${text}
  </text>

  Please return json with the following format:
  {
    "people": ["person1", "person2", "person3"],
    "places": ["place1", "place2", "place3"],
    "organizations": ["org1", "org2", "org3"]
  }`;
  return (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <GSXChatCompletion
        model="gpt-4o-mini"
        messages={[
          {
            role: "user",
            content: prompt,
          },
        ]}
        outputSchema={ExtractEntitiesSchema}
      ></GSXChatCompletion>
    </OpenAIProvider>
  );
});
```

The `GSXChatCompletion` component will return the structured output directly matching the type of the `ExtractEntitiesSchema` with no extra parsing required.

### Structured output strategies

When using structured outputs with OpenAI models, GenSX uses the `response_format` parameter to return a structured output. However, not all models support structured outputs out of the box. For non-OpenAI models, structured outputs are handled by converting the schema into a tool and forcing the model to call that tool.

GenSX looks at the `baseURL` of the OpenAIProvider to determine which approach to use but you can manually control this behavior by setting the `structuredOutputStrategy` prop. There are three available options:

- `default`: Picks the best strategy based on the `baseURL` of the OpenAIProvider.
- `tools`: Converts the schema into a tool to return a structured output.
- `response_format`: Uses the `response_format` parameter to return a structured output.

### Retries

In the case that the model doesn't return valid JSON matching the schema, the task will be retried up to 3 times by default. You can change this behavior by setting the `retry` prop.

```tsx
<GSXChatCompletion
  model="gpt-4o-mini"
  messages={[
    {
      role: "user",
      content: prompt,
    },
  ]}
  outputSchema={ExtractEntitiesSchema}
  retry={{
    maxAttempts: 1,
  }}
></GSXChatCompletion>
```

## Structured outputs without GenSX helpers

You can also use the `response_format` prop to get a structured output from OpenAI models without using GenSX helpers, just like you would when using the OpenAI SDK or API. The main difference is that you will need to parse the response yourself.

Using the same `ExtractEntitiesSchema` from the previous example, you can define the component and set the `response_format` prop to the `ExtractEntitiesSchema` using the `zodResponseFormat` helper.

```tsx
import { zodResponseFormat } from "openai/helpers/zod";

const ExtractEntitiesWithoutHelpers = gensx.Component<
  ExtractEntitiesProps,
  ExtractEntitiesOutput
>("ExtractEntitiesWithoutHelpers", ({ text }) => {
  const prompt = `Please review the following text and extract all the people, places, and organizations mentioned.

  <text>
  ${text}
  </text>

  Please return json with the following format:
  {
    "people": ["person1", "person2", "person3"],
    "places": ["place1", "place2", "place3"],
    "organizations": ["org1", "org2", "org3"]
  }`;
  return (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <ChatCompletion
        model="gpt-4o-mini"
        messages={[
          {
            role: "user",
            content: prompt,
          },
        ]}
        response_format={zodResponseFormat(ExtractEntitiesSchema, "entities")}
      >
        {(response: string) => {
          return ExtractEntitiesSchema.parse(JSON.parse(response));
        }}
      </ChatCompletion>
    </OpenAIProvider>
  );
});
```

This example uses the `ChatCompletion` component which always returns a string but you could also use the `GSXChatCompletion` component or `OpenAIChatCompletion` component which returns the full response object from OpenAI.

## Running the example

You can run the examples above using the following code:

```tsx
const workflow = gensx.Workflow("ExtractEntitiesWorkflow", ExtractEntities);

const result = await workflow.run({
  text: "John Doe is a software engineer at Google.",
});

console.log(result);
```

This will output the following:

```json
{
  "people": ["John Doe"],
  "places": [],
  "organizations": ["Google"]
}
```

# Self-reflection

Self-reflection is a common prompting technique used to improve the outputs of LLMs. With self-reflection, an LLM is used to evaluate it's own output and then improve it, similar to how a humans would review and edit their own work.

Self-reflection works well because it's easy for LLMs to make mistakes. LLMs are simply predicting tokens one after the next so a single bad token choice can create a cascading effect. Self-reflection allows the model to evaluate the output in its entirety giving the model a chance to catch and correct any mistakes.

## Self-reflection in GenSX

The nested approach to creating GenSX workflows might make it seem difficult to implement looping patterns like self-reflection. However, GenSX allows you to express dynamic, programmatic trees giving you all the flexibility you need.

The [reflection example](https://github.com/gensx-inc/gensx/tree/main/examples/reflection) defines a helper function `createReflectionLoop` that you can use to implement self-reflection in your GenSX workflows.

To implement self-reflection, you'll need:

1. **An evaluation component** that assesses the output and provides feedback
2. **An improvement component** that processes the input using the feedback to create a better output

The output you want to improve becomes the `input` to the reflection loop itself. You can choose to run a single round of self-reflection or multiple rounds to iteratively refine the output, based on your scenario.

When you call `createReflectionLoop`, the function will:

1. Use the evaluation component (`EvaluateFn`) to analyze the output and decide if further improvements are necessary.
2. If improvements are warranted, execute the improvement component (`ImproveFn`) to refine the output.
3. Recursively call itself with the improved output, continuing until the specified `maxIterations` is reached or no more improvements are needed.

Here's the implementation of the `createReflectionLoop` function:

```tsx
export function createReflectionLoop<TInput>(name: string) {
  return gensx.Component<ReflectionProps<TInput>, TInput>(
    name,
    async ({
      input,
      ImproveFn,
      EvaluateFn,
      iterations = 0,
      maxIterations = 3,
    }) => {
      // Check if we should continue processing
      const { feedback, continueProcessing } = await EvaluateFn.run({ input });

      if (continueProcessing && iterations < maxIterations) {
        // Process the input
        const newInput: TInput = await ImproveFn.run({ input, feedback });

        // Recursive call with updated input and iteration count
        const Reflection = createReflectionLoop<TInput>(
          `${name}-${iterations + 1}`,
        );
        return (
          <Reflection
            input={newInput}
            ImproveFn={ImproveFn}
            EvaluateFn={EvaluateFn}
            iterations={iterations + 1}
            maxIterations={maxIterations}
          />
        );
      }

      // Return the final input when we're done processing
      return input;
    },
  );
}
```

## Implementing self-reflection

Now that you've seen the pattern and the helper function for doing self-reflection, let's implement it. The example below shows how to use the `createReflectionLoop` function to evaluate and improve text.

### Step 1: Define the evaluation component

First, you need to define the component that will be used to evaluate the text. As its designed above, the evaluation component needs to return a string, `feedback`, and a boolean, `continueProcessing`.

To get good results, you'll need to provide useful instructions on what feedback to provide. In this example, we focus on trying to make the text sound more authentic and less AI-generated.

```tsx
const EvaluateText = gensx.Component<{ input: string }, ReflectionOutput>(
  "EvaluateText",
  ({ input }) => {
    const systemPrompt = `You're a helpful assistant that evaluates text and suggests improvements if needed.

    ## Evaluation Criteria

    - Check for genuine language: flag any buzzwords, corporate jargon, or empty phrases like "cutting-edge solutions"
    - Look for clear, natural expression: mark instances of flowery language or clichéd openers like "In today's landscape..."
    - Review word choice: highlight where simpler alternatives could replace complex or technical terms
    - Assess authenticity: note when writing tries to "sell" rather than inform clearly and factually
    - Evaluate tone: identify where the writing becomes overly formal instead of warm and conversational
    - Consider flow and engagement - flag where transitions feel choppy or content becomes dry and predictable


    ## Output Format
    Return your response as JSON with the following two properties:

    - feedback: A string describing the improvements that can be made to the text. Return feedback as short bullet points. If no improvements are needed, return an empty string.
    - continueProcessing: A boolean indicating whether the text should be improved further. If no improvements are needed, return false.

    You will be given a piece of text. Your job is to evaluate the text and return a JSON object with the following format:
    {
      "feedback": "string",
      "continueProcessing": "boolean"
    }
    `;
    return (
      <ChatCompletion
        model="gpt-4o-mini"
        messages={[
          { role: "system", content: systemPrompt },
          { role: "user", content: input },
        ]}
        response_format={{ type: "json_object" }}
      >
        {(response: string) => {
          return JSON.parse(response) as ReflectionOutput;
        }}
      </ChatCompletion>
    );
  },
);
```

### Step 2: Define the improvement component

Next, you need to define the component that will be used to improve the text. This component will take the `input` text and the `feedback` as input and return the improved text.

```tsx
const ImproveText = gensx.Component<
  { input: string; feedback: string },
  string
>("ImproveText", ({ input, feedback }) => {
  console.log("\n📝 Current draft:\n", input);
  console.log("\n🔍 Feedback:\n", feedback);
  console.log("=".repeat(50));
  const systemPrompt = `You're a helpful assistant that improves text by fixing typos, removing buzzwords, jargon, and making the writing sound more authentic.

    You will be given a piece of text and feedback on the text. Your job is to improve the text based on the feedback. You should return the improved text and nothing else.`;
  const prompt = `<feedback>
    ${feedback}
    </feedback>

    <text>
    ${input}
    </text>`;
  return (
    <ChatCompletion
      model="gpt-4o-mini"
      messages={[
        { role: "system", content: systemPrompt },
        { role: "user", content: prompt },
      ]}
    />
  );
});
```

### Step 3: Create the reflection loop

Now that you have the evaluation and improvement components, you can create the reflection loop.

```tsx
export const ImproveTextWithReflection = gensx.Component<
  {
    text: string;
    maxIterations?: number;
  },
  string
>("ImproveTextWithReflection", ({ text, maxIterations = 3 }) => {
  const Reflection = createReflectionLoop<string>("ImproveTextWithReflection");
  return (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <Reflection
        input={text}
        ImproveFn={ImproveText}
        EvaluateFn={EvaluateText}
        maxIterations={maxIterations}
      />
    </OpenAIProvider>
  );
});
```

### Step 4: Run the example

You can run the text improvement example using the following code:

```tsx
const text = `We are a cutting-edge technology company leveraging bleeding-edge AI solutions to deliver best-in-class products to our customers. Our agile development methodology ensures we stay ahead of the curve with paradigm-shifting innovations.`;

const workflow = gensx.Workflow(
  "ReflectionWorkflow",
  ImproveTextWithReflection,
);
const improvedText = await workflow.run({ text });

console.log("🎯 Final text:\n", improvedText);
```

You can find the complete example code in the [reflection example](https://github.com/gensx-inc/gensx/tree/main/examples/reflection).

# OpenAI Computer Use

The [OpenAI Computer Use](https://github.com/gensx-inc/gensx/tree/main/examples/openai-computer-use) example show how to use OpenAI's computer-use model with GenSX to control a web browser with natural language.

## Workflow

The OpenAI Computer Use workflow consists of the following steps:

1. Launch a browser session with Playwright (`<BrowserProvider>`)
2. Send an initial user prompt to the OpenAI computer-use model (`<OpenAIResponses>`)
3. Process any computer actions requested by the model
   - Execute browser actions like clicking, scrolling, typing, etc. (`<UseBrowser>`)
   - Take a screenshot after each action and send it back to the model
4. Optionally collect human feedback and continue the conversation (`<HumanFeedback>`)
5. Process subsequent model responses and browser actions until completion

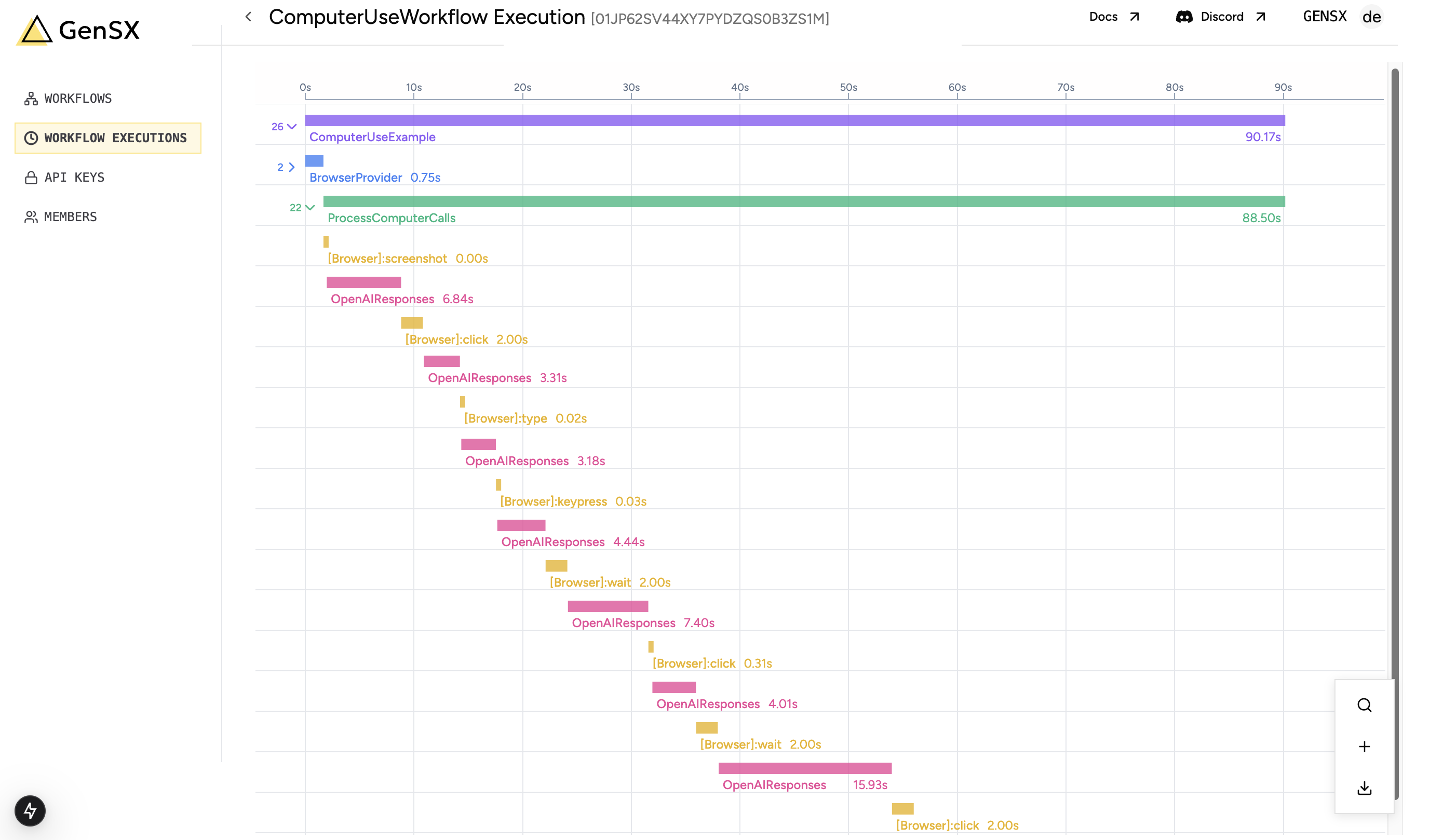

Here's an example trace of the workflow showing the actions taken at each step:
![OpenAI Computer Use Workflow](/docs/computer-use-trace.png)

## Running the example

From the root of the [GensX Github Repo](https://github.com/gensx-inc/gensx), run the following commands:

```bash
# Install dependencies
pnpm install

# Install playwright
npx playwright install

# Run the example
OPENAI_API_KEY=<your_api_key> pnpm start:example openai-computer-use
```

The default prompt is `how long does it take to drive from seattle to portland? use google maps` but you can change this by editing the `index.tsx` file. You can also control whether or not the example is multi-turn by toggling the `allowHumanFeedback` prop. This is set to `false` by default but you might what to change this to `true` so you can continue the conversation with the model in the terminal.

When you run the example, you'll see an output like the following:

```bash
🚀 Starting the computer use example

🎯 PROMPT: how long does it take to drive from seattle to portland? use google maps
💻 Action: screenshot
💻 Action: click at (188, 180) with button 'left'
💻 Action: type text 'Google Maps'
💻 Action: keypress 'ENTER'
💻 Action: wait
💻 Action: click at (233, 230) with button 'left'
💻 New tab opened
💻 Action: wait
💻 Action: click at (389, 38) with button 'left'
💻 Action: type text 'Seattle to Portland'
💻 Action: keypress 'ENTER'
💻 Action: wait
✅ Computer use complete

✨ Final response: The estimated driving time from Seattle to Portland on Google Maps is approximately 2 hours and 58 minutes via I-5 S, covering a distance of 174 miles. Would you like any more assistance with your route?
```

## Key patterns

### Browser automation

The example uses Playwright to control a web browser, creating a context that's shared throughout the workflow. The `BrowserProvider` component initializes a browser session and makes it available to child components:

```tsx
const BrowserProvider = gensx.Component<BrowserProviderProps, never>(
  "BrowserProvider",
  async ({ initialUrl }) => {
    const browser = await chromium.launch({
      headless: false,
      chromiumSandbox: true,
      env: {},
      args: ["--disable-extensions", "--disable-file-system"],
    });
    const page = await browser.newPage();
    await page.setViewportSize({ width: 1024, height: 768 });
    await page.goto(initialUrl);

    return <BrowserContext.Provider value={{ page }} />;
  },
);
```

### Processing model actions

The `ProcessComputerCalls` component handles the computer actions returned by the model. For each action, it:

1. Extracts the action from the model response
2. Executes the action on the browser using the `UseBrowser` component
3. Takes a screenshot of the result
4. Sends the screenshot back to the model
5. Processes the next model response

```tsx
const ProcessComputerCalls = gensx.Component<
  ProcessComputerCallsProps,
  ProcessComputerCallsResult
>("ProcessComputerCalls", async ({ response }) => {
  let currentResponse = response;
  let computerCalls = currentResponse.output.filter(
    (item) => item.type === "computer_call",
  );

  while (computerCalls.length > 0) {
    // Execute browser action and take screenshot
    // ...
    // Send screenshot back to model
    // ...
    // Get updated response
    // ...
  }

  return { updatedResponse: currentResponse };
});
```

### Interactive feedback loop

The example supports an interactive conversation with the model, allowing you to provide feedback or additional instructions once the model finishes an initial turn:

```tsx
// Start conversation loop with human feedback
let currentResponse = updatedResponse;
let continueConversation = true;

while (continueConversation) {
  // Get human feedback
  const { userMessage, shouldExit } = await HumanFeedback.run({
    assistantMessage: currentResponse.output_text,
  });

  // Exit if requested
  if (shouldExit) {
    continueConversation = false;
    continue;
  }

  // Send user message to model
  // ...
  // Process any computer calls in the response
  // ...
}
```

## Additional resources

Check out the other examples in the [GenSX Github Repo](https://github.com/gensx-inc/gensx/tree/main/examples).

# Model Context Protocol

This example demonstrates how to integrate an MCP server into your workflow, and enable those tools to be used in a GenSX workflow.

See it on [Github](https://github.com/gensx-inc/gensx/tree/main/examples/mcp).

### What it demonstrates

- Instantiate an MCP server
- Pass the tools to OpenAI for execution

## Getting Started

1. Install dependencies:

   ```bash
   pnpm install
   ```

2. Run the example:

   ```bash
   # From the root of the repo
   OPENAI_API_KEY=<your_api_key> pnpm start:example mcp
   ```

## What is the Model Context Protocol (MCP)?

The Model Context Protocol is an open standard that enables developers to build secure, two-way connections between their data sources and AI-powered tools. MCP allows AI assistants to access relevant context from various systems where data lives, including content repositories, business tools, and development environments.

This example demonstrates how to create components that connect to and interact with MCP servers.

## Learn More

For more information about the Model Context Protocol, visit [Anthropic's MCP page](https://www.anthropic.com/news/model-context-protocol).

### Sample Output for this example

```
Sequential Thinking MCP Server running on stdio

┌────────────────────────────────────────────────────┐
│ 💭 Thought 1/5 │
├────────────────────────────────────────────────────┤
│ I need to find the area of the 25x25 room first.   │
└────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 2/5 (from thought 1, ID: area_calculation) │
├─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ The area of the full room is calculated by multiplying the length and the width: 25 ft * 25 ft = 625 square feet.   │
└─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

┌────────────────────────────────────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 3/5 (from thought 2, ID: area_calculation) │
├────────────────────────────────────────────────────────────────────────────────────────────────┤
│ Next, calculate the area to be subtracted from the total, which is the 3.5 ft x 3 ft region.   │
└────────────────────────────────────────────────────────────────────────────────────────────────┘

┌────────────────────────────────────────────────────────────┐
│ 🌿 Branch 4/5 (from thought 3, ID: area_calculation) │
├────────────────────────────────────────────────────────────┤
│ The subtracted area is 3.5 ft * 3 ft = 10.5 square feet.   │
└────────────────────────────────────────────────────────────┘

┌────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 5/5 (from thought 4, ID: area_calculation) │
├────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ Subtract the unused area from the total room area to get the flooring area required: 625 square feet - 10.5 square feet = 614.5 square feet.   │
└────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

┌────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ 💭 Thought 6/8 │
├────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ Now, I need to calculate the amount of flooring based on the size of each piece, which is 5 inches x 4 feet.   │
└────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

┌──────────────────────────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 7/8 (from thought 6, ID: flooring_calculation) │
├──────────────────────────────────────────────────────────────────────────────────────┤
│ Convert the dimensions of the flooring from inches to feet: 5 inches is 5/12 feet.   │
└──────────────────────────────────────────────────────────────────────────────────────┘

┌──────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 8/8 (from thought 7, ID: flooring_calculation) │
├──────────────────────────────────────────────────────────────────┤
│ Calculate the area of one piece of flooring: (5/12 ft) * 4 ft.   │
└──────────────────────────────────────────────────────────────────┘

┌────────────────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 9/10 (from thought 8, ID: flooring_calculation) │
├────────────────────────────────────────────────────────────────────────────┤
│ The area of one piece of flooring is (5/12 ft) * 4 ft = 5/3 square feet.   │
└────────────────────────────────────────────────────────────────────────────┘

┌──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 10/10 (from thought 9, ID: flooring_calculation) │
├──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ Divide the total flooring area by the area of one piece of flooring to determine the number of pieces needed: 614.5 square feet / (5/3 square feet per piece).   │
└──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ 🌿 Branch 11/11 (from thought 10, ID: flooring_calculation) │
├─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┤
│ The number of pieces needed is 614.5 / (5/3) = 368.7, so approximately 369 pieces are required after rounding up.   │
└─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘
To cover the 25x25 room while excluding the 3.5 x 3 ft area, you'll need approximately **369 pieces** of flooring, given each piece measures 5 inches by 4 feet.
```

# Hacker News analyzer

The [Hacker News Analyzer](https://github.com/gensx-inc/gensx/tree/main/examples/hackerNewsAnalyzer) example uses GenSX to fetch, analyze, and extract trends from the top Hacker News posts. It shows how to combine data fetching, parallel analysis, and content generation in a single workflow to create two outputs: a detailed report and a tweet of the trends.

## Workflow

The Hacker News Analyzer workflow is composed of the following steps:

1. Fetch the top 500 Hacker News posts and filters down to `text` posts (`<FetchHNPosts>`)
2. Process each post in parallel (`<AnalyzeHNPosts>`)
   - Summarize the content (`<SummarizePost>`)
   - Analyze the comments (`<AnalyzeComments>`)
3. Writes a detailed report identifying the key trends across all posts (`<GenerateReport>`)
4. Edits the report into the style of Paul Graham (`<EditReport>`)
5. Generates a tweet in the voice of Paul Graham (`<WriteTweet>`)

## Running the example

```bash
# From the root of the repo

# Install dependencies
pnpm install

# Set your OpenAI API key
export OPENAI_API_KEY=<your_api_key>

# Run the example
pnpm start:example hackerNewsAnalyzer
```

The workflow will create two files:

- `hn_analysis_report.md`: A detailed analysis report
- `hn_analysis_tweet.txt`: A tweet-sized summary of the analysis

## Key patterns

### Parallel processing

The workflow uses the `<AnalyzeHNPosts>` component to process each post in parallel. GenSX extends JSX to support returning objects so that components can return arrays and structured objects containing other components, which will all be resolved at runtime.

This component takes advantage of this and uses `array.map` to return a list of `analyses`, each containing a summary of the post and an analysis of its comments.

```tsx
const AnalyzeHNPosts = gensx.Component<
  AnalyzeHNPostsProps,
  AnalyzeHNPostsOutput
>("AnalyzeHNPosts", ({ stories }) => {
  return {
    analyses: stories.map((story) => ({
      summary: <SummarizePost story={story} />,
      commentAnalysis: (
        <AnalyzeComments postId={story.id} comments={story.comments} />
      ),
    })),
  };
});
```

### Multiple outputs

This example also shows a simple pattern returning multiple outputs from a workflow. In this case, both the outputs of `<GenerateReport>` and `<WriteTweet>` are returned as a single object. This is done by using the the child function of `<GenerateReport>` to combine the outputs of multiple components into a single object.

```tsx
<GenerateReport analyses={analyses}>
  {(report) => (
    <EditReport content={report}>
      {(editedReport) => (
        <WriteTweet
          context={editedReport}
          prompt="Summarize the HN trends in a tweet"
        >
          {(tweet) => ({ report: editedReport, tweet })}
        </WriteTweet>
      )}
    </EditReport>
  )}
</GenerateReport>
```

## Additional resources

Check out the other examples in the [GenSX Github Repo](https://github.com/gensx-inc/gensx/tree/main/examples).

# Blog writer

Breaking down complex tasks into smaller, discrete steps is one of the best ways to improve the quality of LLM outputs. The [blog writer workflow example](https://github.com/gensx-inc/gensx/tree/main/examples/blogWriter) does this by following the same approach a human would take to write a blog post: first conducting research, then generating a first draft, and finally editing that draft.

## Workflow

The Blog Writer workflow consists of the following steps:

1. Parallel research phase:
   - Brainstorm topics using LLM (`<BrainstormTopics>`)
   - Research each topic in detail (`<ResearchTopic>`)
   - Gather web research (`<SearchWeb>`)
2. Write initial draft based on research (`<WriteDraft>`)
3. Edit and polish the content (`<EditDraft>`)

## Running the example

```bash
# From the root of the repo

# Install dependencies
pnpm install

# Set your OpenAI API key
export OPENAI_API_KEY=<your_api_key>

# Run the example
pnpm run start
```

## Key patterns

### Running components in parallel

The `<Research>` component runs both the `BrainstormTopics` and `SearchWeb` components in parallel. Both sub-workflows return an array of strings which are automatically combined into a single array.

```tsx
const Research = gensx.Component<ResearchComponentProps, ResearchOutput>(
  "Research",
  ({ prompt }) => {
    return (
      <>
        <BrainstormTopics prompt={prompt}>
          {({ topics }) => {
            return topics.map((topic) => <ResearchTopic topic={topic} />);
          }}
        </BrainstormTopics>
        <SearchWeb prompt={prompt} />
      </>
    );
  },
);
```

### Streaming Output

The workflow streams back the final output to reduce the time that it takes for the user to receive the first token. The `<EditDraft>` component is a [`StreamComponent`](/docs/basic-concepts#component-types) and the `<ChatCompletion>` component has `stream={true}`.

```tsx
const EditDraft = gensx.StreamComponent<EditDraftProps>(
  "EditDraft",
  ({ draft }) => {
    return (
      <ChatCompletion
        stream={true}
        model="gpt-4o-mini"
        temperature={0}
        messages={[
          { role: "system", content: systemPrompt },
          { role: "user", content: draft },
        ]}
      />
    );
  },
);
```

Then when the component is invoked, `stream={true}` is passed to the component so that the output is streamed back and can be surfaced to the user:

```tsx
<EditDraft draft={draft} stream={true} />
```

## Additional resources

Check out the other examples in the [GenSX Github Repo](https://github.com/gensx-inc/gensx/tree/main/examples).

# Building reusable components

GenSX allows you to create reusable components that can be used with different models and providers. This is particularly useful if you want to be able to compare the behavior of different models in a component or want to share your components with others.

## Creating a reusable component

The pattern for creating reusable components is fairly simple--you just need to parameterize the model name and provider details. Here's an example of a `SummarizeDocument` component that can be re-used with any OpenAI compatible API.

First, define the `ProviderConfig` interface that specifies the client options, such as the `baseURL` and `apiKey`, and the model name:

```tsx
interface ProviderConfig {
  clientOptions: ClientOptions;
  model: string;
}
```

Then include the `ProviderConfig` in the component's props interface:

```tsx
interface SummarizeDocumentProps {
  document: string;
  provider: ProviderConfig;
}

const SummarizeDocument = gensx.Component<SummarizeDocumentProps, string>(
  "SummarizeDocument",
  ({ document, provider }) => (
    <OpenAIProvider {...provider.clientOptions}>
      <ChatCompletion
        model={provider.model}
        messages={[
          {
            role: "user",
            content: `Please create a high level summary of the following document targeting 30 words.\n\n<document>${document}</document>`,
          },
        ]}
      />
    </OpenAIProvider>
  ),
);
```

Now, whenever your invoke the `SummarizeDocument` component, you can pass in any provider configuration that you'd like:

```tsx
const gpt4oProviderConfig = {
  clientOptions: {
    apiKey: process.env.OPENAI_API_KEY,
  },
  model: "gpt-4o",
};

const llama8bProviderConfig = {
  clientOptions: {
    apiKey: process.env.GROQ_API_KEY,
    baseURL: "https://api.groq.com/openai/v1",
  },
  model: "llama-3.1-8b-instant",
};

const gptSummary = await gensx.execute<string>(
  <SummarizeDocument
    document="Your document..."
    provider={gpt4oProviderConfig}
  />,
);

const llamaSummary = await gensx.execute<string>(
  <SummarizeDocument
    document="Your document..."
    provider={llama8bProviderConfig}
  />,
);
```

## Creating parameterized workflows

You can take this one step further and create parameterized workflows with multiple provider configurations. One common use case for this is using both a small and large model in your workflow and having separate configurations for each so you can easily swap out the individual models.

To demonstrate this, let's create a `ProcessDocument` component that builds on the `SummarizeDocument` component but also extracts keywords and categorizes the document.

To get started, define an interface that receives a document and two provider configurations:

```tsx
interface ProcessDocumentProps {
  document: string;
  defaultProvider: ProviderConfig;
  smallModelProvider?: ProviderConfig;
}
```

In this example, the `defaultProvider` is required, but the `smallModelProvider` is optional. If it's not provided, the `defaultProvider` will be used in all components.

Now, we can define the `ProcessDocument` component and pass the provider configuration to the individual components:

```tsx
export const ProcessDocument = gensx.Component<
  ProcessDocumentProps,
  ProcessDocumentOutput
>("ProcessDocument", (props) => {
  // Use the small model provider if it's provided, otherwise use the default provider
  const smallModelProvider = props.smallModelProvider ?? props.defaultProvider;
  return {
    summary: (
      <SummarizeDocument
        document={props.document}
        provider={props.defaultProvider}
      />
    ),
    keywords: [
      <ExtractKeywords
        document={props.document}
        provider={smallModelProvider}
      />,
    ],
    category: (
      <CategorizeDocument
        document={props.document}
        provider={smallModelProvider}
      />
    ),
  };
});
```

You can find the full code for the `ProcessDocument` component in the [reusable components example](https://github.com/gensx-inc/gensx/tree/main/examples/reusableComponents).

Finally, to run the workflow, you can invoke the `ProcessDocument` component with the appropriate provider configurations:

```tsx
const gpt4oProviderConfig = {
  clientOptions: {
    apiKey: process.env.OPENAI_API_KEY,
  },
  model: "gpt-4o",
};

const llama8bProviderConfig = {
  clientOptions: {
    apiKey: process.env.GROQ_API_KEY,
    baseURL: "https://api.groq.com/openai/v1",
  },
  model: "llama-3.1-8b-instant",
};

const documentMetadata = await gensx.execute<ProcessDocumentOutput>(
  <ProcessDocument
    document="Your document here"
    defaultProvider={gpt4oProviderConfig}
    smallModelProvider={llama8bProviderConfig}
  />,
);
```

# How GenSX works

GenSX is a simple framework for building complex LLM workflows. While most LLM frameworks use graph-based APIs that require explicit node and edge definitions, GenSX takes a different approach. It uses JSX to dynamically construct an execution graph by programmatically constructing a tree from your components.

Trees are just a kind of graph, and JSX enables building trees programmatically which lets you express common agentic patterns like reflection and recursion -- all with a more intuitive, composable syntax that is easier to understand.

## JSX and component model

Unlike React's UI components, GenSX uses JSX to compose data processing workflows. While the syntax is familiar to React developers, there are key differences:

- Components are pure functions that transform data, not UI elements
- There's no virtual DOM or reconciliation
- Components execute once and produce a value, rather than rendering and re-rendering
- The component tree represents data flow, not visual hierarchy

Here's a basic example of a component that takes in a list of tweets and analyzes them using a LLM:

```tsx
const TweetAnalyzer = gensx.Component<TweetAnalyzerProps, string>(
  "TweetAnalyzer",
  async ({ tweets }) => {
    const prompt = tweets
      .map(
        (tweet) =>
          `<tweet><author>${tweet.author}</author><content>${tweet.content}</content></tweet>`,
      )
      .join("\n");
    return (
      <ChatCompletion
        model="gpt-4o"
        messages={[
          { role: "system", content: "Analyze key themes in these tweets..." },
          { role: "user", content: prompt },
        ]}
      />
    );
  },
);
```

You can also create components that are composed of other components:

```tsx
const TweetWorkflow = gensx.Component<TweetWorkflowProps, string>(
  "TweetWorkflow",
  async ({ query }) => (
    <TweetCollector query={query}>
      {(tweets) => (
        <TweetAnalyzer tweets={tweets}>
          {(trends) => <ReportGenerator trends={trends} tweets={tweets} />}
        </TweetAnalyzer>
      )}
    </TweetCollector>
  ),
);
```

## Component resolution and execution

You can turn any component into a runnable workflow using `gensx.workflow()`:

```tsx
const myWorkflow = gensx.workflow("TweetWorkflow", TweetWorkflow);
```

Then to run the workflow, call the `run()` method on the workflow and pass in the props:

```tsx
const result = await myWorkflow.run({ query: "DeepSeek R1 vs o3-mini" });
```

When you run a workflow, GenSX will:

1. Creates a dependency graph from your JSX tree
2. Tracks dependencies between components through prop passing and child functions
3. Executes components in parallel where possible while respecting dependencies
4. Resolves all values - including promises, arrays, objects, and nested components

This automatic dependency tracking ensures components only execute when their dependencies are resolved, while taking advantage of parallelization wherever possible.

For example, when executing the TweetWorkflow, GenSX will:

- Start executing `TweetCollector` immediately
- Wait for its result, `tweets`, to be available through the child function
- Pass the tweets to `TweetAnalyzer` and execute it
- Finally execute `ReportGenerator` with the trends from `TweetAnalyzer` and the tweets

### Executing sub-workflows

GenSX also allows you to execute sub-workflows from within a component using the `run()` method on a component:

```tsx
const result = await MyComponent.run({ input: "some data" });
```

When used inside a component, `Component.run()` preserves the current context and maintains the component hierarchy so the calls will integrate naturally with the rest of the workflow. The result is automatically resolved to a plain JavaScript value, allowing you to work with it directly without additional JSX syntax.

## Resolving nested values and complex structures

GenSX automatically handles resolution of:

- Promises and async functions
- Arrays of components or values
- Objects containing components or values
- Nested JSX elements
- Child function results

For example, consider this nested structure:

```tsx
const DocumentProcessor = gensx.Component<
  DocumentProcessorProps,
  DocumentProcessorOutput
>("DocumentProcessor", async ({ text1, text2 }) => ({
  summaries: [<Summarize text={text1} />, <Summarize text={text2} />],
  metadata: {
    sentiment: <AnalyzeSentiment text={text1 + text2} />,
    topics: Promise.resolve(["ai", "tech"]),
  },
}));

const myWorkflow = gensx.workflow("DocumentProcessor", DocumentProcessor);
const result = await myWorkflow.run({ text1: "...", text2: "..." });
```

When you execute the DocumentProcessor workflow, GenSX will:

1. Execute both `Summarize` components in parallel
2. Execute `AnalyzeSentiment` in parallel with the summaries
3. Resolve the topics promise
4. Maintain the object structure in the final output:

```tsx
{
  summaries: [
    "First summary...",
    "Second summary..."
  ],
  metadata: {
    sentiment: "positive",
    topics: ['ai', 'tech']
  }
}
```

## Visualizing and debugging workflows

When used with [GenSX Cloud](/docs/cloud), GenSX automatically tracks the execution of your workflow to give you full visibility into your workflow's execution.

You can see the execution graph, the inputs and outputs of each component, and other information like the execution time and status of each component. This makes it easy to debug and understand your workflow so you can see what's happening and make improvements where needed.

![Workflow Visualization](/docs/gensx-visualize-workflow.png)

# Context and providers

Contexts and providers are powerful tools in GenSX for sharing data and managing configuration across components without explicitly passing props through every level of your component tree. They work similarly to [React's Context API](https://react.dev/reference/react/useContext) but are adapted to work with GenSX workflows.

## What are contexts and providers?

Contexts and providers work together to share data and manage dependencies across components.

- **Contexts** give you a way to share data (like state, configuration, or dependencies) across components without manually passing props down the component tree.
- **Providers** are components that supply data or services to a context. Any component within a provider's subtree can access the context.

The two concepts are interdependent so you can't use one without the other. Combined, they're great for:

- Providing data to components without prop drilling
- Sharing configuration and dependencies, such as clients, for your workflow
- Managing state that needs to be accessed by multiple components

The remainder of this document will show you how to create and use both contexts and providers in GenSX.

## Creating and using contexts

This next section walks through the steps needed to create and use a context in your GenSX workflow.

### Step 1: Create a context

To create a context, start by defining its interface and then use `gensx.createContext<T>()` to initialize it along with a default value. For example, here's how to create a `User` context:

```tsx
import * as gensx from "@gensx/core";

// Define the interface
interface User {
  name: string;
}

// Create a context with a default value
const UserContext = gensx.createContext<User>({
  name: "",
});
```

### Step 2: Use the context in a component

To use the context, call the `gensx.useContext(context)` hook inside of a component. Here a `Greeting` component is created that uses the `UserContext` to get the user's name:

```tsx
const GreetUser = gensx.Component<{}, string>("GreetUser", () => {
  const user = gensx.useContext(UserContext);
  return `Hello, ${user.name}!`;
});
```

### Step 3: Provide the context value

To make the context value available to your components, you need to wrap your component in a `Provider` component and pass in a value via the `value` prop:

```tsx
const ContextExample = gensx.Component<{}, string>("ContextExample", () => (
  <UserContext.Provider value={{ name: "John" }}>
    <GreetUser />
  </UserContext.Provider>
));
```

## Using providers for configuration and dependencies

Providers are a specialized way to use contexts that focus on managing configuration and dependencies for your workflow. They simplify the process of sharing data like API keys, client instances, or feature flags across your components.

### Built-in providers

The main provider available today is the `OpenAIProvider`, which manages your OpenAI API key and client:

```tsx
const BasicChat = gensx.Component<BasicChatProps, string>(
  "BasicChat",
  async ({ prompt }) => {
    return (
      <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
        <ChatCompletion
          model="gpt-4o-mini"
          messages={[{ role: "user", content: prompt }]}
        />
      </OpenAIProvider>
    );
  },
);

const result = await gensx.Workflow("BasicChat", BasicChat).run({
  prompt: "Hello!",
});
```

### Creating a Custom Provider

If you need a provider that isn't available out of the box, you can easily create your own. The example below shows how to create a provider for the [Firecrawl](https://www.firecrawl.dev/) API.

#### Step 1: Create a context

Start by importing from `@gensx/core` and the package you want to use:

```tsx
import * as gensx from "@gensx/core";
import FirecrawlApp, { FirecrawlAppConfig } from "@mendable/firecrawl-js";
```

Then, create the context:

```tsx
// Create a context
export const FirecrawlContext = gensx.createContext<{
  client?: FirecrawlApp;
}>({});
```

The context contains the `client` that you'll use to interact with the Firecrawl API.

#### Step 2: Create the provider

Next, wrap your context in a provider component:

```tsx
// Create the provider
export const FirecrawlProvider = gensx.Component<FirecrawlAppConfig, never>(
  "FirecrawlProvider",
  (args: FirecrawlAppConfig) => {
    const client = new FirecrawlApp({
      apiKey: args.apiKey,
    });
    return <FirecrawlContext.Provider value={{ client }} />;
  },
  {
    secretProps: ["apiKey"],
  },
);
```

The provider will take in the `apiKey` as a prop and use it to initialize the Firecrawl client.

Note that in the provider definition, an option bag is passed in as the third argument containing the `secretProps` property. This tells GenSX to treat the `apiKey` prop as a secret add it will be redacted in any traces.

#### Step 3: Use the provider in a component

Finally, you can build components that consume the context supplied by the provider:

```tsx
export const ScrapePage = gensx.Component<ScrapePageProps, string>(
  "ScrapePage",
  async ({ url }) => {
    const context = gensx.useContext(FirecrawlContext);

    if (!context.client) {
      throw new Error(
        "Firecrawl client not found. Please wrap your component with FirecrawlProvider.",
      );
    }
    const result = await context.client.scrapeUrl(url, {
      formats: ["markdown"],
      timeout: 30000,
    });

    if (!result.success || !result.markdown) {
      throw new Error(`Failed to scrape url: ${url}`);
    }

    return result.markdown;
  },
);
```

#### Step 4: Use the provider in your workflow

Now when you use the `ScrapePage` component in your workflow, you'll wrap it in the `FirecrawlProvider` and pass in the `apiKey`:

```tsx
const FirecrawlExample = gensx.Component<FirecrawlExampleProps, string>(
  "FirecrawlExample",
  async ({ url }) => {
    return (
      <FirecrawlProvider apiKey={process.env.FIRECRAWL_API_KEY}>
        <ScrapePage url={url} />
      </FirecrawlProvider>
    );
  },
);

const result = await gensx.Workflow("FirecrawlExample", FirecrawlExample).run({
  url: "https://gensx.com/docs/",
});
```

### Nesting providers

You can nest multiple providers to combine different services or configurations in your workflow. This is useful when a component needs access to multiple contexts. Here's an example that combines the OpenAI provider with our custom Firecrawl provider:

```tsx
const NestedProviderExample = gensx.Component<
  NestedProviderExampleProps,
  string
>("NestedProviderExample", async ({ url }) => {
  return (
    <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
      <FirecrawlProvider apiKey={process.env.FIRECRAWL_API_KEY}>
        <WebPageSummarizer url={url} />
      </FirecrawlProvider>
    </OpenAIProvider>
  );
});
```

In this example, the `WebPageSummarizer` component can access both the OpenAI client and Firecrawl client through their respective contexts.

The order of nesting doesn't matter as long as the component using a context is wrapped by its corresponding provider somewhere up the tree.

### Using multiple OpenAI compatible providers

You can also nest multiple providers to use multiple OpenAI compatible APIs in the same workflow. When you nest multiple OpenAI providers, components will always use the closest provider above it in the tree. The example below shows how you could use models from OpenAI and Groq in the same workflow using their OpenAI compatible APIs.

First, create a provider for [Groq](https://www.groq.com/) that wraps the `OpenAIProvider` and points to the correct base URL:

```tsx
const GroqProvider = gensx.Component<{}, never>("GroqProvider", () => (
  <OpenAIProvider
    apiKey={process.env.GROQ_API_KEY}
    baseURL="https://api.groq.com/openai/v1"
  />
));
```

Because components will always use the closest provider above them in the tree, `EditTutorial` will use the Groq API while `WriteTutorial` will use the OpenAI API:

```tsx
export const WriteAndEditTutorial = gensx.Component<WriteTutorialProps, string>(
  "WriteAndEditTutorial",
  ({ subject }) => {
    return (
      <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
        <WriteTutorial subject={subject}>
          {(tutorial) => {
            console.log("\n📝 Original tutorial from OpenAI:\n", tutorial);
            return (
              <GroqProvider>
                <EditTutorial tutorial={tutorial} />
              </GroqProvider>
            );
          }}
        </WriteTutorial>
      </OpenAIProvider>
    );
  },
);
```

Note that you don't have to create the `GroqProvider` component; instead you could just use the `OpenAIProvider` and pass in the correct props. However, wrapping the provider can make your code cleaner and easier to manage.

To make your components more reusable, you could also pass in the model name as a prop. For more details, see the guide on [creating reusable components](/docs/concepts/reusable-components).

## Additional resources

You can find the full example code demonstrating these concepts on GitHub:

- [Context examples](https://github.com/gensx-inc/gensx/tree/main/examples/contexts)
- [Provider examples](https://github.com/gensx-inc/gensx/tree/main/examples/providers)
- [Multiple OpenAI compatible providers example](https://github.com/gensx-inc/gensx/tree/main/examples/nestedProviders)

# Arrays

GenSX includes an array primitive that lets you operate over arrays of components with the same standard JavaScript APIs you're used to including `map`, `filter`, `flatMap`, and `reduce`. This allows you to chain together array operations over lists of components for scenarios like:

- Evaluating the usefulness of each chunk returned by your vector database
- Translating a single document into multiple languages
- Analyzing key themes in a set of customer reviews

When you use `gensx.array`, GenSX takes care of executing components and producing outputs as needed so that you can focus on the logic of your workflow.

## Example

Here's a practical example of using `gensx.array`. The `Research` component below receives a prompt and a list of queries, and then returns a list of summaries from relevant research papers.

```tsx
const Research = gensx.Component<ResearchProps, ArxivSummary[]>(
  "Research",
  async ({ queries: string[], prompt: string }) => {
    return await gensx
      .array<string>(queries)
      .flatMap<ArxivEntry>((query) => <ArxivSearch query={query} maxResults={3} />)
      .filter((document) => (
        <GradeDocument prompt={prompt} document={document} />
      ))
      .map<ArxivSummary>((document) => (
        <FetchAndSummarize document={document} prompt={prompt} />
      ))
      .toArray();
  },
);
```

Walking through this code step by step, it:

1. Instantiates a `GsxArray<string>` from the `queries`
2. Uses `flatMap` to call the `ArxivSearch` component for each query and flatten the output into a single array of documents
3. Calls `filter` to filter out any documents that an LLM judge deems irrelevant. `GradeDocument` returns a boolean
4. Chains another `map` operation to call the `FetchAndSummarize` component for each document
5. Calls `toArray()` to convert the `GsxArray<ArxivSummary>` into a `ArxivSummary[]`

You can find the full code for this in the [Deep Research example](https://github.com/gensx-inc/gensx/tree/main/examples/deepResearch).

## Working with arrays

Now that you've seen an example showing a lot of the functionality of `gensx.array`, let's explore each of these operations in more detail.

### Creating an array

To access the array operations, you first need to create a `GsxArray`. You can create an array from raw values:

```tsx
import * as gensx from "@gensx/core";

// Create from raw values
const numbers = gensx.array<number>([1, 2, 3]);
```

You can also create arrays from components:

```tsx
const NumberWrapper = gensx.Component<{ n: number }, number>(
  "NumberWrapper",
  ({ n }) => n,
);

// Create from components
const wrappedNumbers = gensx.array<NumberWrapper>([
  <NumberWrapper n={1} />,
  <NumberWrapper n={2} />,
  <NumberWrapper n={3} />,
]);
```

To convert a `GsxArray` back to a plain array, you simply call the `toArray()` method which produces an array of resolved component outputs.

### Map and FlatMap

`gensx.array` supports both `map` and `flatMap` operations. Both of these operations behave exactly as you'd expect if you're familiar with `array.map` and `array.flatMap` in JavaScript.

#### Map

Map transforms each element in an array using a component:

```tsx
const numbers = gensx.array([1, 2, 3]);

const doubled = await numbers
  .map<number>((n) => <NumberDoubler value={n} />)
  .toArray();
// Result: [2, 4, 6]
```

#### FlatMap

Similarly, flatMap invokes a component for each element in the array and flattens the result.

For example, the code below retrieves an array of search results for each query and flattens the results into a single array:

```tsx
const queries = gensx.array(["chain of thought", "reasoning models"]);

const documents = await queries
  .flatMap<SearchResult>((query) => (
    <WebSearch query={query} /> // returns a list of documents
  ))
  .toArray();
```

### Filter

Filters allow you to filter out elements that don't match a given condition. Inside the filter predicate, you can pass either:

- A component that returns a boolean
- A plain boolean expression

#### Filtering with a component

When you filter with a component, the component needs to result in a boolean value.

```tsx
// Define a component that returns a boolean
const EvenNumberFilter = gensx.Component<{ value: number }, boolean>(
  "EvenNumberFilter",
  ({ value }) => {
    return value % 2 === 0;
  },
);

// Use a component that returns a boolean to filter
const evenNumbers = await gensx
  .array<number>([10, 11, 12, 13, 14])
  .filter((n) => <EvenNumberFilter value={n} />)
  .toArray();
```

You can also use the component's child function to convert the output of a component into a boolean:

```tsx
const evenNumbers = await gensx
  .array<number>([10, 11, 12, 13, 14])
  .filter((n) => (
    <EvenOrOdd value={n}>
      {({ result: string }) => result.toLowerCase() === "even"}
    </EvenOrOdd>
  ))
  .toArray();
```

#### Filter using a plain boolean expression

When you filter with a boolean expression, you use the filter method just like you would with JavaScript arrays:

```tsx
const evenNumbers = await gensx
  .array<number>([10, 11, 12, 13, 14])
  .filter((n) => n % 2 === 0)
  .toArray();
```

#### Filter using index and array parameters

Filter expressions can also access the current index and the entire array. Here's a basic example of using this to remove duplicates from an array:

```tsx
const uniqueNumbers = await gensx
  .array<number>([1, 2, 2, 3, 3, 3, 4])
  .filter((num, index, array) => array.indexOf(num) === index)
  .toArray();
// Result: [1, 2, 3, 4]
```

### Reduce

The reduce operation allows you to process all of the items in an array to produce a single value.

For example, if you wanted to translate a markdown document section by section and combine the results into a single document, it would look something like this:

```tsx
const markdownContent = "<some markdown content>";

const translatedContent = await gensx
  .array<string>(markdownContent.split(/(?=^#{1,2} )/m))
  .map<string>((value) => <TranslateSection value={value} />)
  .reduce<string>(
    (acc, value) => <CombineSections acc={acc} value={value} />,
    "",
  );
```

To break down this example a bit more:

- `acc` is the accumulator, which starts as the initial value, in this case an empty string
- `value` is the current section of the markdown content
- `CombineSections` is a component that does the combining given both the accumulator and the current value

## How array operations work

`gensx.array` is a convenience wrapper around `gensx.execute` function and the corresponding JavaScript array methods.

To illustrate this, take the following example:

```tsx
const numbers = [1, 2, 3];
const result = await gensx
  .array<number>(numbers)
  .map<number>((n) => <NumberDoubler value={n} />)
  .filter((n) => <EvenNumberFilter value={n} />)
  .toArray();
```

That same code can be written using `gensx.execute` like this:

```tsx
const numbers = [1, 2, 3];
const doubledNumbers = await gensx.execute<number[]>(
  numbers.map((n) => <NumberDoubler value={n} />),
);
const result = await gensx.execute<number[]>(
  doubledNumbers.filter((n) => <EvenNumberFilter value={n} />),
);
```

When using `gensx.array`, each operation in the chain will execute in sequence so if you have `gensx.array().map().map()`, all of the components in the first `map` will execute in parallel and will complete before the second `map` starts.

# Vercel AI SDK

The [@gensx/vercel-ai-sdk](https://www.npmjs.com/package/@gensx/vercel-ai-sdk) package provides [Vercel AI SDK](https://sdk.vercel.ai/docs/introduction) compatible components for GenSX, allowing you to use Vercel's AI SDK with GenSX's component model.

## Installation

To install the package, run the following command:

```bash
npm install @gensx/vercel-ai-sdk
```

You'll also need to install the Vercel AI SDK:

```bash
npm install ai
```

Then import the components you need from the package:

```tsx
import { GenerateText, GenerateObject } from "@gensx/vercel-ai-sdk";
```

## Supported components

| <div style={{width: "150px"}}>Component</div> | Description                                                    |
| :-------------------------------------------- | :------------------------------------------------------------- |
| [`StreamText`](#streamtext)                   | Stream text responses from language models                     |
| [`StreamObject`](#streamobject)               | Stream structured JSON objects from language models            |
| [`GenerateText`](#generatetext)               | Generate complete text responses from language models          |
| [`GenerateObject`](#generateobject)           | Generate complete structured JSON objects from language models |
| [`Embed`](#embed)                             | Generate embeddings for a single text input                    |
| [`EmbedMany`](#embedmany)                     | Generate embeddings for multiple text inputs                   |
| [`GenerateImage`](#generateimage)             | Generate images from text prompts                              |

## Component Reference

#### `<StreamText/>`

The [StreamText](https://sdk.vercel.ai/docs/ai-sdk-core/generating-text#streamtext) component streams text responses from language models, making it ideal for chat interfaces and other applications where you want to show responses as they're generated.

```tsx
import { StreamText } from "@gensx/vercel-ai-sdk";
import { openai } from "@ai-sdk/openai";

const languageModel = openai("gpt-4o");
```

```tsx
<StreamText
  prompt="Explain quantum computing in simple terms"
  model={languageModel}
/>
```

##### Props

The `StreamText` component accepts all parameters from the Vercel AI SDK's `streamText` function:

- `prompt` (required): The text prompt to send to the model
- `model` (required): The language model to use (from Vercel AI SDK)
- Plus all other parameters supported by the Vercel AI SDK

##### Return Type

Returns a streaming response that can be consumed token by token.

#### `<StreamObject/>`

The `StreamObject` component streams structured JSON objects from language models, allowing you to get structured data with type safety.

```tsx
import * as gensx from "@gensx/core";
import { StreamObject } from "@gensx/vercel-ai-sdk";
import { openai } from "@ai-sdk/openai";
import { z } from "zod";

const languageModel = openai("gpt-4o");

// Define a schema for the response
const recipeSchema = z.object({
  recipe: z.object({
    name: z.string(),
    ingredients: z.array(z.string()),
    steps: z.array(z.string()),
  }),
});
```

```tsx
// Streams a structured object when executed
<StreamObject
  prompt="Generate a recipe for chocolate chip cookies"
  model={languageModel}
  schema={recipeSchema}
/>
```

##### Props

The [StreamObject](https://sdk.vercel.ai/docs/ai-sdk-core/generating-structured-data#stream-object) component accepts all parameters from the Vercel AI SDK's `streamObject` function:

- `prompt` (required): The text prompt to send to the model
- `model` (required): The language model to use (from Vercel AI SDK)
- `schema`: A Zod schema defining the structure of the response
- `output`: The output format ("object", "array", or "no-schema")
- Plus all other parameters supported by the Vercel AI SDK

##### Return Type

Returns a structured object matching the provided schema.

#### `<GenerateText/>`

The [GenerateText](https://sdk.vercel.ai/docs/ai-sdk-core/generating-text#generatetext) component generates complete text responses from language models, waiting for the entire response before returning.

```tsx
import * as gensx from "@gensx/core";
import { GenerateText } from "@gensx/vercel-ai-sdk";
import { openai } from "@ai-sdk/openai";

const languageModel = openai("gpt-4o");
```

```tsx
// Generates a complete text response when executed
<GenerateText
  prompt="Write a short poem about programming"
  model={languageModel}
/>
```

##### Props

The `GenerateText` component accepts all parameters from the Vercel AI SDK's `generateText` function:

- `prompt` (required): The text prompt to send to the model
- `model` (required): The language model to use (from Vercel AI SDK)
- Plus any other parameters supported by the Vercel AI SDK

##### Return Type

Returns a complete text string containing the model's response.

#### `<GenerateObject/>`

The [GenerateObject](https://sdk.vercel.ai/docs/ai-sdk-core/generating-structured-data#generate-object) component generates complete structured JSON objects from language models, with type safety through Zod schemas.

```tsx
import * as gensx from "@gensx/core";
import { GenerateObject } from "@gensx/vercel-ai-sdk";
import { openai } from "@ai-sdk/openai";
import { z } from "zod";

const languageModel = openai("gpt-4o");

// Define a schema for the response
const userSchema = z.object({
  user: z.object({
    name: z.string(),
    age: z.number(),
    interests: z.array(z.string()),
    contact: z.object({
      email: z.string().email(),
      phone: z.string().optional(),
    }),
  }),
});
```

```tsx
// Generates a structured object when executed
<GenerateObject
  prompt="Generate a fictional user profile"
  model={languageModel}
  schema={userSchema}
/>
```

##### Props

The `GenerateObject` component accepts all parameters from the Vercel AI SDK's `generateObject` function:

- `prompt` (required): The text prompt to send to the model
- `model` (required): The language model to use (from Vercel AI SDK)
- `schema`: A Zod schema defining the structure of the response
- `output`: The output format ("object", "array", or "no-schema")
- Plus any other optional parameters supported by the Vercel AI SDK

##### Return Type

Returns a structured object matching the provided schema.

#### `<Embed/>`

The [Embed](https://sdk.vercel.ai/docs/ai-sdk-core/embeddings) component generates embeddings for a single text input, which can be used for semantic search, clustering, and other NLP tasks.

```tsx
import * as gensx from "@gensx/core";
import { Embed } from "@gensx/vercel-ai-sdk";
import { openai } from "@ai-sdk/openai";

const embeddingModel = openai.embedding("text-embedding-3-small");
```

```tsx
// Generates an embedding when executed
<Embed value="This is a sample text to embed" model={embeddingModel} />
```

##### Props

The `Embed` component accepts all parameters from the Vercel AI SDK's `embed` function:

- `value` (required): The text to generate an embedding for
- `model` (required): The embedding model to use (from Vercel AI SDK)
- Plus any other optional parameters supported by the Vercel AI SDK

##### Return Type

Returns a vector representation (embedding) of the input text.

#### `<EmbedMany/>`

The [EmbedMany](https://sdk.vercel.ai/docs/ai-sdk-core/embeddings#embedding-many-values) component generates embeddings for multiple text inputs in a single call, which is more efficient than making separate calls for each text.

```tsx
import * as gensx from "@gensx/core";
import { EmbedMany } from "@gensx/vercel-ai-sdk";
import { openai } from "@ai-sdk/openai";

const embeddingModel = openai.embedding("text-embedding-3-small");
```

```tsx
// Generates embeddings for multiple texts when executed
<EmbedMany
  values={[
    "First text to embed",
    "Second text to embed",
    "Third text to embed",
  ]}
  model={embeddingModel}
/>
```

##### Props

The `EmbedMany` component accepts all parameters from the Vercel AI SDK's `embedMany` function:

- `values` (required): Array of texts to generate embeddings for
- `model` (required): The embedding model to use (from Vercel AI SDK)
- Plus any other optional parameters supported by the Vercel AI SDK

##### Return Type

Returns an array of vector representations (embeddings) for the input texts.

#### `<GenerateImage/>`

The [GenerateImage](https://sdk.vercel.ai/docs/ai-sdk-core/image-generation) component generates images from text prompts using image generation models.

```tsx
import * as gensx from "@gensx/core";
import { GenerateImage } from "@gensx/vercel-ai-sdk";
import { openai } from "@ai-sdk/openai";

const imageModel = openai.image("dall-e-3");
```

```tsx
// Generates an image when executed
<GenerateImage
  prompt="A futuristic city with flying cars and neon lights"
  model={imageModel}
/>
```

##### Props

The `GenerateImage` component accepts all parameters from the Vercel AI SDK's `experimental_generateImage` function:

- `prompt` (required): The text description of the image to generate
- `model` (required): The image generation model to use (from Vercel AI SDK)
- Plus any other optional parameters supported by the Vercel AI SDK

##### Return Type

Returns an object containing information about the generated image, including its URL.

## Usage with Different Models

The Vercel AI SDK supports multiple model providers. Here's how to use different providers with GenSX components:

```tsx
// OpenAI
import { openai } from "@ai-sdk/openai";
const openaiModel = openai("gpt-4o");

// Anthropic
import { anthropic } from "@ai-sdk/anthropic";
const anthropicModel = anthropic("claude-3-opus-20240229");

// Cohere
import { cohere } from "@ai-sdk/cohere";
const cohereModel = cohere("command-r-plus");

// Use with GenSX components
import { GenerateText } from "@gensx/vercel-ai-sdk";

const openaiResponse = await gensx.execute(
  <GenerateText prompt="Explain quantum computing" model={openaiModel} />,
);

const anthropicResponse = await gensx.execute(
  <GenerateText prompt="Explain quantum computing" model={anthropicModel} />,
);
```

For more information on the Vercel AI SDK, visit the [official documentation](https://sdk.vercel.ai/docs).

# OpenRouter

[OpenRouter](https://openrouter.ai) provides a unified API to access various AI models from different providers. You can use GenSX with OpenRouter by configuring the OpenAIProvider component with OpenRouter's API endpoint.

## Installation

To use OpenRouter with GenSX, you need to install the OpenAI package:

```bash
npm install @gensx/openai
```

## Configuration

Configure the `OpenAIProvider` with your OpenRouter API key and the OpenRouter base URL:

```tsx
import { OpenAIProvider } from "@gensx/openai";

<OpenAIProvider
  apiKey={process.env.OPENROUTER_API_KEY}
  baseURL="https://openrouter.ai/api/v1"
>
  {/* Your components here */}
</OpenAIProvider>;
```

## Example Usage

Here's a complete example of using OpenRouter with GenSX:

```tsx
import * as gensx from "@gensx/core";
import { ChatCompletion, OpenAIProvider } from "@gensx/openai";

interface RespondProps {
  userInput: string;
}
type RespondOutput = string;

const GenerateText = gensx.Component<RespondProps, RespondOutput>(
  "GenerateText",
  ({ userInput }) => (
    <ChatCompletion
      model="anthropic/claude-3.7-sonnet"
      messages={[
        {
          role: "system",
          content: "You are a helpful assistant. Respond to the user's input.",
        },
        { role: "user", content: userInput },
      ]}
      provider={{
        ignore: ["Anthropic"],
      }}
    />
  ),
);

const OpenRouterExampleComponent = gensx.Component<
  { userInput: string },
  string
>("OpenRouter", ({ userInput }) => (
  <OpenAIProvider
    apiKey={process.env.OPENROUTER_API_KEY}
    baseURL="https://openrouter.ai/api/v1"
  >
    <GenerateText userInput={userInput} />
  </OpenAIProvider>
));

const workflow = gensx.Workflow(
  "OpenRouterWorkflow",
  OpenRouterExampleComponent,
);

const result = await workflow.run({
  userInput: "Hi there! Write me a short story about a cat that can fly.",
});
```

## Specifying Models

When using OpenRouter, you can specify models using their full identifiers:

- `anthropic/claude-3.7-sonnet`
- `openai/gpt-4o`
- `google/gemini-1.5-pro`
- `mistral/mistral-large-latest`

Check the [OpenRouter documentation](https://openrouter.ai/docs) for a complete list of available models.

## Provider Options

You can use the `provider` property in the `ChatCompletion` component to specify OpenRouter-specific options:

```tsx
<ChatCompletion
  model="anthropic/claude-3.7-sonnet"
  messages={
    [
      /* your messages */
    ]
  }
  provider={{
    ignore: ["Anthropic"], // Ignore specific providers
    route: "fallback", // Use fallback routing strategy
  }}
/>
```

## Learn More

- [OpenRouter Documentation](https://openrouter.ai/docs)
- [GenSX OpenAI Components](/docs/component-reference/openai)

# OpenAI

The [@gensx/openai](https://www.npmjs.com/package/@gensx/openai) package provides OpenAI API compatible components for GenSX.

## Installation

To install the package, run the following command:

```bash
npm install @gensx/openai
```

Then import the components you need from the package:

```tsx
import { OpenAIProvider, GSXChatCompletion } from "@gensx/openai";
```

## Supported components

| <div style={{width: "150px"}}>Component</div>   | Description                                                                                     |
| :---------------------------------------------- | :---------------------------------------------------------------------------------------------- |
| [`OpenAIProvider`](#openaiprovider)             | OpenAI Provider that handles configuration and authentication for child components              |
| [`GSXChatCompletion`](#gsxchatcompletion)       | Enhanced component with enhanced features for OpenAI chat completions                           |
| [`ChatCompletion`](#chatcompletion)             | Simplified component for chat completions with streamlined output interface                     |
| [`OpenAIChatCompletion`](#openaichatcompletion) | Low-level component that directly matches the OpenAI SDK interface for the Chat Completions API |
| [`OpenAIResponses`](#openairesponses)           | Low-level component that directly matches the OpenAI SDK interface for the Responses API        |
| [`OpenAIEmbedding`](#openaiembedding)           | Low-level component that directly matches the OpenAI SDK interface for the Embeddings API       |

## Component Comparison

The package provides three different chat completion components to suit different use cases:

- **OpenAIChatCompletion**: Direct mapping to the OpenAI API with identical inputs and outputs
- **GSXChatCompletion**: Enhanced component with additional features like structured output and automated tool calling
- **ChatCompletion**: Simplified interface that returns string responses or simple streams while maintaining identical inputs to the OpenAI API

## Reference

#### `<OpenAIProvider/>`

The `OpenAIProvider` component initializes and provides an OpenAI client instance to all child components. Any components that use OpenAI's API need to be wrapped in an `OpenAIProvider`.

```tsx
<OpenAIProvider
  apiKey="your-api-key" // Your OpenAI API key
  organization="org-id" // Optional: Your OpenAI organization ID
  baseURL="https://api.openai.com/v1" // Optional: API base URL
/>
```

By configuring the baseURL, you can also use the `OpenAIProvider` with other OpenAI compatible APIs like [x.AI](https://docs.x.ai/docs/overview#featured-models) and [Groq](https://console.groq.com/docs/openai).

```tsx
<OpenAIProvider
  apiKey="your-api-key" // Your Groq API key
  baseURL="https://api.groq.com/openai/v1"
/>
```

##### Props

The `OpenAIProvider` accepts all configuration options from the [OpenAI Node.js client library](https://github.com/openai/openai-node) including:

- `apiKey` (required): Your OpenAI API key
- `organization`: Optional organization ID
- `baseURL`: Optional API base URL

#### `<GSXChatCompletion/>`

The `GSXChatCompletion` component is an advanced chat completion component that provides enhanced features beyond the standard OpenAI API. It supports structured output, tool calling, and streaming, with automatic handling of tool execution.

To get a structured output, pass a [Zod schema](https://www.npmjs.com/package/zod) to the `outputSchema` prop.

```tsx
// Returns an object matching the outputSchema when executed
<GSXChatCompletion
  model="gpt-4o"
  messages={[
    { role: "system", content: "You are a helpful assistant." },
    {
      role: "user",
      content: "Extract the name and age from: John Doe, 32 years old",
    },
  ]}
  outputSchema={z.object({
    name: z.string(),
    age: z.number(),
  })}
/>
```

To use tools, create a `GSXTool` object:

```tsx
const calculator = GSXTool.create({
  name: "calculator",
  description: "Perform mathematical calculations",
  schema: z.object({
    expression: z.string(),
  }),
  run: async ({ expression }) => {
    return { result: eval(expression) };
  },
});
```

Then pass the tool to the `tools` prop.

```tsx
<GSXChatCompletion
  model="gpt-4o"
  messages={[{ role: "user", content: "What is 123 * 456?" }]}
  tools={[calculator]}
/>
```

##### Props

The `GSXChatCompletion` component accepts all parameters from OpenAI's chat completion API plus additional options:

- `model` (required): ID of the model to use (e.g., `"gpt-4o"`, `"gpt-4o-mini"`)
- `messages` (required): Array of messages in the conversation
- `stream`: Whether to stream the response (when `true`, returns a `Stream<ChatCompletionChunk>`)
- `tools`: Array of `GSXTool` instances for function calling
- `outputSchema`: Zod schema for structured output (when provided, returns data matching the schema)
- `structuredOutputStrategy`: Strategy to use for structured output. Supported values are `default`, `tools`, and `response_format`.
- Plus all standard OpenAI chat completion parameters (temperature, maxTokens, etc.)

##### Return Types

The return type of `GSXChatCompletion` depends on the props:

- With `stream: true`: Returns `Stream<ChatCompletionChunk>` from OpenAI SDK
- With `outputSchema`: Returns data matching the provided Zod schema
- Default: Returns `GSXChatCompletionResult` (OpenAI response with message history)

#### `<ChatCompletion/>`

The `ChatCompletion` component provides a simplified interface for chat completions. It returns either a string or a simple stream of string tokens while having identical inputs to the OpenAI API.

```tsx
// Returns a string when executed
<ChatCompletion
  model="gpt-4o"
  messages={[
    { role: "system", content: "You are a helpful assistant." },
    { role: "user", content: "What's a programmable tree?" },
  ]}
  temperature={0.7}
/>

// Returns an AsyncIterableIterator<string> when executed
<ChatCompletion
  model="gpt-4o"
  messages={[
    { role: "system", content: "You are a helpful assistant." },
    { role: "user", content: "What's a programmable tree?" },
  ]}
  temperature={0.7}
  stream={true}
/>
```

##### Props

The `ChatCompletion` component accepts all parameters from OpenAI's chat completion API:

- `model` (required): ID of the model to use (e.g., `"gpt-4o"`, `"gpt-4o-mini"`)
- `messages` (required): Array of messages in the conversation
- `temperature`: Sampling temperature (0-2)
- `stream`: Whether to stream the response
- `maxTokens`: Maximum number of tokens to generate
- `responseFormat`: Format of the response (example: `{ "type": "json_object" }`)
- `tools`: Array of `GSXTool` instances for function calling

##### Return Types

- With `stream: false` (default): Returns a string containing the model's response
- With `stream: true`: Returns an `AsyncIterableIterator<string>` that yields tokens as they're generated

#### `<OpenAIChatCompletion/>`

The `OpenAIChatCompletion` component is a low-level component that directly maps to the OpenAI SDK. It has identical inputs and outputs to the OpenAI API, making it suitable for advanced use cases where you need full control.

```tsx
<OpenAIChatCompletion
  model="gpt-4o"
  messages={[
    { role: "system", content: "You are a helpful assistant." },
    { role: "user", content: "What's a programmable tree?" },
  ]}
  temperature={0.7}
/>
```

##### Props

The `OpenAIChatCompletion` component accepts all parameters from the OpenAI SDK's `chat.completions.create` method:

- `model` (required): ID of the model to use
- `messages` (required): Array of messages in the conversation
- `temperature`: Sampling temperature
- `stream`: Whether to stream the response
- `maxTokens`: Maximum number of tokens to generate
- `tools`: Array of OpenAI tool definitions for function calling
- Plus all other OpenAI chat completion parameters

##### Return Types

- With `stream: false` (default): Returns the full `ChatCompletionOutput` object from OpenAI SDK
- With `stream: true`: Returns a `Stream<ChatCompletionChunk>` from OpenAI SDK

#### `<OpenAIResponses/>`

The `OpenAIResponses` component is a low-level component that directly maps to the [OpenAI Responses API](https://platform.openai.com/docs/api-reference/responses). It has identical inputs and outputs to the OpenAI Responses API, making it suitable for advanced use cases where you need full control.

```tsx
<OpenAIResponses
  model="gpt-4o-mini"
  input={[
    {
      role: "user",
      content: "What is JSX?",
    },
  ]}
  truncation="auto"
/>
```

##### Props

The `OpenAIResponses` component accepts all parameters from the OpenAI SDK's `responses.create` method:

- `model` (required): ID of the model to use
- `input` (required): The input to the response
- Plus all other optional parameters from the OpenAI Responses API

##### Return Types

- With `stream: false` (default): Returns the full `Response` object from OpenAI SDK
- With `stream: true`: Returns a `Stream<ResponseStreamEvent>` from OpenAI SDK

#### `<OpenAIEmbedding/>`

The `OpenAIEmbedding` component is a low-level component that directly maps to the OpenAI SDK's `embeddings.create` method. It has identical inputs and outputs to the OpenAI Embeddings API, making it suitable for advanced use cases where you need full control.

```tsx
<OpenAIEmbedding model="text-embedding-3-small" input="Hello, world!" />
```

##### Props

The `OpenAIEmbedding` component accepts all parameters from the OpenAI SDK's `embeddings.create` method:

- `model` (required): ID of the model to use
- `input` (required): The input to the embedding (`string` or `string[]`)
- Plus all other optional parameters from the OpenAI Embeddings API

##### Return Types

- Returns the full `CreateEmbeddingResponse` object from OpenAI SDK

# MCP Components

The `@gensx/mcp` package provides Model Control Protocol (MCP) components for GenSX, bringing in a provider and context helper that enables you to easily call tools, resources, and prompts that are provided by the MCP server.

This supports either a server command and arguments, and will manage the lifecycle of that MCP process, or it accepts a pre-connected MCP client as the source for MCP resources.

See the example [here](../examples/mcp).

## Installation

To install the package, run the following command:

```bash
npm install @gensx/mcp
```

## Supported components and utilities

| <div style={{width: "150px"}}>Component/Utility</div> | Description                                                            |
| :---------------------------------------------------- | :--------------------------------------------------------------------- |
| [`createMCPServerContext`](#createmcpservercontext)   | Creates a context provider and hook for accessing MCP server resources |
| [`MCPTool`](#mcptool)                                 | Wrapper used to call a tool resource provided by an MCP server         |
| [`MCPResource`](#mcpresource)                         | Wrapper used to call a resource provided by an MCP server              |
| [`MCPResourceTemplate`](#mcpresourcetemplate)         | Wrapper used to call a resource template provided by an MCP server     |
| [`MCPPrompt`](#mcpprompt)                             | Wrapper used to call a prompt resource provided by an MCP server       |

## Reference

### `createMCPServerContext()`

The `createMCPServerContext` function creates a context provider and hook for accessing MCP server resources. It returns an object containing a Provider component and a useContext hook.
If a server command is provided, it will be used to start the MCP server, and close the connection when the component is unmounted. Otherwise, the MCP client will be used to connect to an existing server.

```tsx
import { createMCPServerContext } from "@gensx/mcp";

const { Provider, useContext } = createMCPServerContext({
  serverCommand: "your-server-command",
  serverArgs: ["--arg1", "--arg2"],
  // Or provide a client directly
  client: yourMCPClient,
});

// Use the Provider to wrap your application
<Provider>
  <YourApp />
</Provider>;

// Use the context hook in your components
const MyComponent = () => {
  const { tools, resources, resourceTemplates, prompts } = useContext();
  // Use the MCP server context...
};
```

#### Parameters

The `createMCPServerContext` function accepts a server definition object with the following properties:

- Either:
  - `serverCommand`: The command to start the MCP server
  - `serverArgs`: Array of arguments for the server command
- Or:
  - `client`: A pre-configured MCP client instance

#### Return Value

Returns an object containing:

- `Provider`: A React component that provides the MCP server context
- `useContext`: A hook that returns the current MCP server context

### Types

#### MCPServerContext

The context object returned by `useContext` contains:

```tsx
interface MCPServerContext {
  tools: MCPTool[]; // Available tools in the server
  resources: MCPResource[]; // Available resources
  resourceTemplates: MCPResourceTemplate[]; // Available resource templates
  prompts: MCPPrompt[]; // Available prompts
}
```

#### MCPTool

Wrapper used to call a tool resource provided by an MCP server. This makes it easy to call any of the tools provided by an MCP server, with the correct arguments and parameters.

#### MCPResource

Wrapper used to call a resource provided by an MCP server. This makes it easy to access any of the resources provided by an MCP server.

#### MCPResourceTemplate

Wrapper used to call a resource template provided by an MCP server. This makes it easy to access any of the resource templates provided by an MCP server, with the correct arguments and parameters.

#### MCPPrompt

Wrapper used to call a prompt resource provided by an MCP server. This makes it easy to access any of the prompts provided by an MCP server, with the correct arguments and parameters.

## Example Usage

```tsx
import { createMCPServerContext } from "@gensx/mcp";
import { OpenAIProvider, ChatCompletion } from "@gensx/openai";

// Create the MCP server context
const { Provider, useContext: useMCPContext } = createMCPServerContext({
  serverCommand: "npx",
  serverArgs: ["-y", "@<mcp-server>/<package>"],
});

// Wrap your application with the Provider
const App = () => (
  <OpenAIProvider apiKey={process.env.OPENAI_API_KEY}>
    <Provider>
      <MCPComponent />
    </Provider>
  </OpenAIProvider>
);

// Use the context in your components
const MCPComponent = () => {
  const { tools, resources } = useMCPContext();

  return (
    <ChatCompletion
      model="gpt-4o"
      messages={[{ role: "user", content: "Call these tools if necessary." }]}
      tools={tools.map((tool) => tool.asGSXTool())}
    />
  );
};
```

# Anthropic

The [@gensx/anthropic](https://www.npmjs.com/package/@gensx/anthropic) package provides [Anthropic API](https://docs.anthropic.com/en/api/getting-started) compatible components for GenSX.

## Installation

To install the package, run the following command:

```bash
npm install @gensx/anthropic
```

Then import the components you need from the package:

```tsx
import { AnthropicProvider, GSXChatCompletion } from "@gensx/anthropic";
```

## Supported components

| <div style={{width: "150px"}}>Component</div>         | Description                                                                           |
| :---------------------------------------------------- | :------------------------------------------------------------------------------------ |
| [`AnthropicProvider`](#anthropicprovider)             | Anthropic Provider that handles configuration and authentication for child components |
| [`GSXChatCompletion`](#gsxchatcompletion)             | Enhanced component with advanced features for Anthropic chat completions              |
| [`ChatCompletion`](#chatcompletion)                   | Simplified component for chat completions with streamlined output interface           |
| [`AnthropicChatCompletion`](#anthropicchatcompletion) | Low-level component that directly matches the Anthropic SDK interface                 |

## Component Comparison

The package provides three different chat completion components to suit different use cases:

- **AnthropicChatCompletion**: Direct mapping to the Anthropic API with identical inputs and outputs
- **GSXChatCompletion**: Enhanced component with additional features like structured output and automated tool calling
- **ChatCompletion**: Simplified interface that returns string responses or simple streams while maintaining identical inputs to the Anthropic API

## Reference

#### `<AnthropicProvider/>`

The `AnthropicProvider` component initializes and provides an Anthropic client instance to all child components. Any components that use Anthropic's API need to be wrapped in an `AnthropicProvider`.

```tsx
<AnthropicProvider
  apiKey="your-api-key" // Your Anthropic API key
/>
```

##### Props

The `AnthropicProvider` accepts all configuration options from the [Anthropic Node.js client library](https://github.com/anthropics/anthropic-sdk-typescript) including:

- `apiKey` (required): Your Anthropic API key
- Plus all other Anthropic client configuration options

#### `<GSXChatCompletion/>`

The `GSXChatCompletion` component is an advanced chat completion component that provides enhanced features beyond the standard Anthropic API. It supports structured output, tool calling, and streaming, with automatic handling of tool execution.

To get a structured output, pass a [Zod schema](https://www.npmjs.com/package/zod) to the `outputSchema` prop.

```tsx
// Returns an object matching the outputSchema when executed
<GSXChatCompletion
  model="claude-3-7-sonnet-latest"
  system="You are a helpful assistant."
  messages={[
    {
      role: "user",
      content: "Extract the name and age from: John Doe, 32 years old",
    },
  ]}
  outputSchema={z.object({
    name: z.string(),
    age: z.number(),
  })}
  max_tokens={1000}
/>
```

To use tools, create a `GSXTool` object:

```tsx
const weatherTool = GSXTool.create({
  name: "get_weather",
  description: "Get the weather for a given location",
  schema: z.object({
    location: z.string(),
  }),
  run: async ({ location }) => {
    return { weather: "sunny" };
  },
});
```

Then pass the tool to the `tools` prop.

```tsx
<GSXChatCompletion
  model="claude-3-7-sonnet-latest"
  system="You are a helpful assistant."
  messages={[{ role: "user", content: "What's the weather in Seattle?" }]}
  tools={[weatherTool]}
  max_tokens={1000}
/>
```

##### Props

The `GSXChatCompletion` component accepts all parameters from Anthropic's messages API plus additional options:

- `model` (required): ID of the model to use (e.g., `"claude-3-7-sonnet-latest"`, `"claude-3-5-haiku-latest"`)
- `messages` (required): Array of messages in the conversation
- `max_tokens` (required): Maximum number of tokens to generate
- `system`: System prompt to set the behavior of the assistant
- `stream`: Whether to stream the response (when `true`, returns a `Stream<RawMessageStreamEvent>`)
- `tools`: Array of `GSXTool` instances for function calling
- `outputSchema`: Zod schema for structured output (when provided, returns data matching the schema)
- `temperature`: Sampling temperature
- Plus all standard Anthropic message parameters

##### Return Types

The return type of `GSXChatCompletion` depends on the props:

- With `stream: true`: Returns `Stream<RawMessageStreamEvent>` from Anthropic SDK
- With `outputSchema`: Returns data matching the provided Zod schema
- Default: Returns `GSXChatCompletionResult` (Anthropic response with message history)

#### `<ChatCompletion/>`

The `ChatCompletion` component provides a simplified interface for chat completions. It returns either a string or a simple stream of string tokens while having identical inputs to the Anthropic API.

```tsx
// Returns a string when executed
<ChatCompletion
  model="claude-3-7-sonnet-latest"
  system="You are a helpful assistant."
  messages={[{ role: "user", content: "What's a programmable tree?" }]}
  temperature={0.7}
  max_tokens={1000}
/>

// Returns an AsyncIterableIterator<string> when executed
<ChatCompletion
  model="claude-3-7-sonnet-latest"
  system="You are a helpful assistant."
  messages={[{ role: "user", content: "What's a programmable tree?" }]}
  temperature={0.7}
  max_tokens={1000}
  stream={true}
/>
```

##### Props

The `ChatCompletion` component accepts all parameters from Anthropic's messages API:

- `model` (required): ID of the model to use (e.g., `"claude-3-5-sonnet-latest"`, `"claude-3-haiku-latest"`)
- `messages` (required): Array of messages in the conversation
- `max_tokens` (required): Maximum number of tokens to generate
- `system`: System prompt to set the behavior of the assistant
- `temperature`: Sampling temperature
- `stream`: Whether to stream the response
- `tools`: Array of `GSXTool` instances for function calling (not compatible with streaming)

##### Return Types

- With `stream: false` (default): Returns a string containing the model's response
- With `stream: true`: Returns an `AsyncIterableIterator<string>` that yields tokens as they're generated

#### `<AnthropicChatCompletion/>`

The `AnthropicChatCompletion` component is a low-level component that directly maps to the Anthropic SDK. It has identical inputs and outputs to the Anthropic API, making it suitable for advanced use cases where you need full control.

```tsx
<AnthropicChatCompletion
  model="claude-3-7-sonnet-latest"
  system="You are a helpful assistant."
  messages={[{ role: "user", content: "What's a programmable tree?" }]}
  max_tokens={1000}
/>
```

##### Props

The `AnthropicChatCompletion` component accepts all parameters from the Anthropic SDK's `messages.create` method:

- `model` (required): ID of the model to use
- `messages` (required): Array of messages in the conversation
- `max_tokens` (required): Maximum number of tokens to generate
- `system`: System prompt to set the behavior of the assistant
- `temperature`: Sampling temperature
- `stream`: Whether to stream the response
- `tools`: Array of Anthropic tool definitions for function calling
- Plus all other Anthropic message parameters

##### Return Types

- With `stream: false` (default): Returns the full `Message` object from Anthropic SDK
- With `stream: true`: Returns a `Stream<RawMessageStreamEvent>` from Anthropic SDK

# Serverless deployments

Deploy your GenSX workflows as serverless APIs with support for both synchronous and asynchronous execution, as well as long-running operations.

## Deploy with the CLI

Projects are a collection of workflows and environment variables that deploy together into an `environment` that you configure.

Each project has a `gensx.yaml` file at the root and a `workflows.tsx` file that exports all of your deployable workflows.

Run `gensx deploy` from the root of your project to deploy it:

```bash
# Deploy the workflow file with default settings
npx gensx deploy src/workflows.tsx

# Deploy with environment variables
npx gensx deploy src/workflows.tsx -ev OPENAI_API_KEY
```

Environment variables are encrypted with per-project encryption keys.

### Deploying to different environments

GenSX supports multiple environments within a project (such as development, staging, and production) to help manage your deployment lifecycle.

```bash
# Deploy to a specific environment
npx gensx deploy src/workflows.tsx --env production

# Deploy to staging with environment-specific variables
npx gensx deploy src/workflows.tsx --env staging -ev OPENAI_API_KEY -ev LOG_LEVEL=debug
```

Each environment can have its own configuration and environment variables, allowing you to test in isolation before promoting changes to production.

When you deploy a workflow, GenSX:

1. Builds your TypeScript code for production
2. Bundles your dependencies
3. Uploads the package to GenSX Cloud
4. Configures serverless infrastructure
5. Creates API endpoints for each exported workflow
6. Encrypts and sets up environment variables
7. Activates the deployment

The entire process typically takes 15 seconds.

## Running workflows from the CLI

Once deployed, you can execute workflows directly from the CLI:

```bash
# Run a workflow synchronously with input data
npx gensx run MyWorkflow --input '{"prompt":"Generate a business name"}' --project my-app

# Run and save the output to a file
npx gensx run MyWorkflow --input '{"prompt":"Generate a business name"}' --output results.json

# Run asynchronously (start the workflow but don't wait for completion)
npx gensx run MyWorkflow --input '{"prompt":"Generate a business name"}' --project my-app
```

### CLI run options

| Option      | Description                                     |
| ----------- | ----------------------------------------------- |
| `--input`   | JSON string with input data                     |
| `--no-wait`    | Do not wait for workflow to finish |
| `--output`  | Save results to a file                          |
| `--project` | Specify the project name                        |
| `--env`     | Specify the environment name                    |

## API endpoints

Each workflow is exposed as an API endpoint:

```
https://api.gensx.com/org/{org}/projects/{project}/environments/{environment}/workflows/{workflow}
```

- `{org}` - Your organization ID
- `{project}` - Your project name
- `{environment}` - The environment (defaults to "default")
- `{workflow}` - The name of your workflow

For example, if you have a workflow named `BlogWriter` in project `content-tools`, the endpoint would be:

```
https://api.gensx.com/org/your-org/projects/content-tools/environments/default/workflows/BlogWriter
```

## Authentication

All GenSX Cloud API endpoints require authentication using your GenSX API key as a bearer token:

```bash
curl -X POST https://api.gensx.com/org/your-org/projects/your-project/environments/default/workflows/YourWorkflow \
  -H "Authorization: Bearer your-api-key" \
  -H "Content-Type: application/json" \
  -d '{"prompt": "Tell me about GenSX"}'
```

### Obtaining an API Key

To generate or manage API keys:

1. Log in to the [GenSX Cloud console](https://app.gensx.com)
2. Navigate to Settings > API Keys
3. Create a new key

## Execution modes

### Synchronous Execution

By default, API calls execute synchronously, returning the result when the workflow completes:

```bash
curl -X POST https://api.gensx.com/org/your-org/projects/your-project/environments/default/workflows/YourWorkflow \
  -H "Authorization: Bearer your-api-key" \
  -H "Content-Type: application/json" \
  -d '{"prompt": "Tell me about GenSX"}'
```

### Asynchronous execution

For longer-running workflows, use asynchronous execution by calling the `/start` endpoint:

```bash
# Request asynchronous execution
curl -X POST https://api.gensx.com/org/your-org/projects/your-project/environments/default/workflows/YourWorkflow/start \
  -H "Authorization: Bearer your-api-key" \
  -H "Content-Type: application/json" \
  -d '{"prompt": "Tell me about GenSX"}'

# Response includes an execution ID
# {
#   "status": "ok",
#   "data": {
#     "executionId": "exec_123abc"
#   }
# }

# Check status later
curl -X GET https://api.gensx.com/executions/exec_123abc \
  -H "Authorization: Bearer your-api-key"
```

### Streaming responses

For workflows that support streaming, you can receive tokens as they're generated:

```bash
curl -X POST https://api.gensx.com/org/your-org/projects/your-project/environments/default/workflows/YourWorkflow \
  -H "Authorization: Bearer your-api-key" \
  -H "Content-Type: application/json" \
  -d '{"prompt": "Tell me about GenSX", "stream": true }'
```

The response is delivered as a stream of server-sent events (SSE).

## Execution time limits

GenSX Cloud is optimized for long-running workflows and agents, with generous execution time limits:

| Plan       | Maximum Execution Time  |
| ---------- | ----------------------- |
| Free Tier  | Up to 5 minutes         |
| Pro Tier   | Up to 60 minutes        |
| Enterprise | Custom limits available |

These extended timeouts make GenSX ideal for complex AI workflows that might involve:

- Multiple LLM calls in sequence
- Real-time agent tool use
- Complex data processing
- Extensive RAG operations

## Cold starts and performance

The GenSX Cloud serverless architecture is designed to minimize cold starts:

- **Millisecond-level cold starts**: Initial cold starts typically range from 10-30ms
- **Warm execution**: Subsequent executions of recently used workflows start in 1-5ms
- **Auto-scaling**: Infrastructure automatically scales with workloads

## Managing deployments in the console

GenSX Cloud provides a console to run, debug, and view all of your workflows.

### Viewing workflows

![View projects in the console](/cloud/console-workflows.png)

1. Log in to [app.gensx.com](https://app.gensx.com)
2. Navigate to your project and environment
3. The workflows tab shows all deployed workflows with status information
4. Click on a workflow to view its details, including schema, recent executions, and performance metrics

The workflow page includes API documentation and code snippets that you can copy/paste to run your workflow from within another app:

![View projects in the console](/cloud/console-workflow-docs.png)

### Running workflows manually

You can test workflows directly from the console:

1. Navigate to the workflow detail page
2. Click the "Run" button
3. Enter JSON input in the provided editor
4. Choose execution mode (sync, async, or streaming)
5. View results directly in the console

![Run workflows in the console](/cloud/console-playground.png)

### Viewing execution history

Each workflow execution generates a trace you can review:

1. Navigate to the "Executions" tab in your project
2. Browse the list of recent executions
3. Click on any execution to see detailed traces
4. Explore the component tree, inputs/outputs, and execution timeline

## Next steps

- [Learn about cloud storage options](/docs/cloud/storage)
- [Explore observability and tracing](/docs/cloud/observability)

# Projects and environments

GenSX organizes your workflows and deployments using a flexible structure of projects and environments, making it easy to match the rest of your application architecture and CI/CD topology. Projects are a top level resource and environments are instances of a project that you deploy to.

## Project structure

A project in GenSX is a collection of related workflows that are deployed, managed, and monitored together:

- **Projects as logical units**: Group related workflows that serve a common purpose
- **Shared configuration**: Apply settings across all workflows in a project
- **Collective deployment**: Deploy all workflows within a project in one operation
- **Unified monitoring**: View traces and metrics for an entire project

Projects typically correspond to a codebase or application that contains multiple workflows.

## Environment separation

Within each project, you can have multiple environments. For example, you could create three environments for each project:

- **Development**: For building and testing new features
- **Staging**: For pre-production validation
- **Production**: For live, user-facing workflows

You have full control over your environments so you can organize them however you see fit.

Each environment maintains separate:

- Workflow deployments
- Configuration and environment variables
- Execution traces and monitoring data

## Configuring projects

### Project configuration file

Projects are defined using a `gensx.yaml` file at the root of your codebase:

```yaml
# gensx.yaml
projectName: customer-support-bot
description: AI assistant for customer support
```

This configuration applies to both local development and cloud deployments.

## Working with environments

### Deploying to different environments

Deploy your workflows to specific environments using the CLI:

```bash
# Deploy to the default environment
gensx deploy src/workflows.tsx

# Deploy to a staging environment
gensx deploy src/workflows.tsx --env staging

# Deploy to production
gensx deploy src/workflows.tsx --env production
```

### Environment-specific configuration

Set environment-specific variables during deployment:

```bash
# Development-specific settings
gensx deploy src/workflows.tsx --env development \
  -ev LOG_LEVEL=debug \
  -ev OPENAI_API_KEY

# Production-specific settings
gensx deploy src/workflows.tsx --env production \
  -ev LOG_LEVEL=error \
  -ev OPENAI_API_KEY
```

## Projects in the GenSX Console

The GenSX Console organizes everything by project and environment:

![Project structure in console](/cloud/project-structure.png)

Selecting an environment brings you to the workflows view:

![Environment page](/cloud/console-workflows.png)

When you click into a workflow, you can trigger it within the console if you've deployed it to GenSX Cloud:

![Triggering a workflow in the console](/cloud/console-playground.png)

You can also see API documentation and sample code for calling that workflow:

![Workflow API documentation](/cloud/console-workflow-docs.png)

## Next steps

- [Configure serverless deployments](/docs/cloud/serverless-deployments) for your projects
- [Set up local development](/docs/cloud/local-development) for testing
- [Learn about observability](/docs/cloud/observability) across environments

# Pricing & limits

GenSX Cloud offers flexible pricing tiers designed to scale with your needs, including a free tier for individuals.

## Pricing tiers

GenSX Cloud offers three pricing tiers:

- **Free Tier**: Perfect for learning, experimentation, and small projects
- **Pro Tier** ($20/month per developer): For professional development and production workloads
- **Enterprise**: Custom pricing for large-scale deployments with additional features and support

Each plan includes monthly allowances for compute, tracing, and storage:

| Resource           | Free Tier              | Pro Tier ($20/month/dev) | Overage/Action   |
| ------------------ | ---------------------- | ------------------------ | ---------------- |
| Serverless Compute | 50K sec                | 500K sec                 | $0.00003/sec     |
| Traces (events)    | 100K events            | 1M events                | $0.20/10K        |
| Blob Storage       | 500MB                  | 5GB                      | $0.25/GB         |
| SQLite Storage     | 500MB                  | 1GB                      | $1.50/GB         |
| Vector Storage     | 250MB                  | 1GB                      | $1.00/GB         |
| Execution time     | Up to 5 minutes        | Up to 60 minutes         | Custom           |
| Observability      | 7 days trace retention | 30 days trace retention  | Custom retention |

The free tier is only for individuals, and you will need to upgrade to the Pro tier before adding additional members to your org.

## Limits

When limits are reached, additional operations may be throttled or declined. Exceeding any limits on the free tier requires upgrading to the Pro tier.

### Serverless

- Free tier: Maximum workflow execution time of 5 minutes
- Pro tier: Maximum workflow execution time of 60 minutes
- Maximum payload size: 10MB per request
- Maximum response size: 10MB

### Blob storage

- Maximum blob size: 100MB
- Maximum number of blobs: Unlimited (subject to total storage limits)
- Rate limits: 100 operations/second on free tier, 1000 operations/second on pro tier

### Databases

- Maximum database size: Limited by your storage quota
- Maximum databases: unlimited
- SQLite Writes: 1M rows/month on free tier, 10M rows/month on pro tier
- SQLite Reads: 100M rows/month on free tier, 1B rows/month on pro tier

### Full-text & vector search

- Maximum documents per search namespace: 100M
- Maximum writes: 10k writes/second per namespace
- Vector Writes: 1GB written/month on free tier, 10GB written/month on pro tier
- Vector Reads: 10GB queried/month on free tier, 100GB queried/month on pro tier
- Maximum vector dimensions: 10,752
- Maximum attributes per document: 256

## Enterprise Plans

Enterprise plans include:

- **Higher resource limits** with customizable quotas
- **Volume discounts** on all resources
- **Advanced security features** including SSO, RBAC, and audit logs
- **Priority support** with dedicated account management
- **SLA guarantees** for uptime and performance
- **Custom integrations** with your existing infrastructure
- **Training and onboarding** for your team
- **SOC2** certification and custom data processing agreements.

To learn more about Enterprise plans, [contact our sales team](mailto:contact@gensx.com).

## Try GenSX Cloud

Start with our free tier today - no credit card required:

[Get Started for Free](https://signin.gensx.com/sign-up)

For any questions about pricing or custom plans, please [contact our sales team](mailto:contact@gensx.com).

# Observability & tracing

GenSX provides observability tools that make it easy to understand, debug, and optimize your workflows. Every component execution is automatically traced, giving you full visibility into what's happening inside your LLM workflows. You can view traces in realtime as workflows execute, and view historical traces to debug production issues like hallucinations.

## Viewing traces

When you run a workflow, GenSX automatically generates a trace that captures the entire execution flow, including all component inputs, outputs, and timing information.

### Accessing the trace viewer

The GenSX cloud console includes a trace viewer. You can access traces in several ways:

1. **From the Console**: Navigate to your project in the [GenSX Console](https://app.gensx.com) and select the "Executions" tab
2. **Trace URL**: When running a workflow with `printUrl: true`, a direct link to the trace is printed to the console
3. **API Response**: When running a workflow in the cloud, the execution ID from API responses can be used to view traces in the console

```tsx
// Executing a workflow with trace URL printing
const result = await MyWorkflow.run(
  { input: "What is GenSX?" },
  { printUrl: true },
);

// Console output includes:
// [GenSX] View execution at: https://app.gensx.com/your_org/executions/your_execution_id
```

### Understanding the flame graph

The flame graph visualizes the entire execution tree including branches, all nested sub-components, and timing:

![Workflow component tree](/cloud/trace.png)

- **Component hierarchy**: See the nested structure of your components and their relationships
- **Execution timing**: The width of each bar represents the relative execution time
- **Status indicators**: Quickly spot errors or warnings with color coding
- **Component filtering**: Focus on specific components or component types

Click on any component in the flame graph to inspect its details, including inputs, outputs, and timing information.

### Viewing component inputs and outputs

For each component in your workflow, you can inspect:

1. **Input properties**: All props passed to the component
2. **Output values**: The data returned by the component
3. **Execution duration**: How long the component took to execute
4. **Metadata**: Additional information like token counts for LLM calls

![Component trace](/cloud/component-trace.png)

This visualization is particularly valuable for debugging production and user-reported issues like hallucinations.

### Viewing historical traces

The GenSX Console maintains a history of all your workflow executions, allowing you to:

- **Compare executions**: See how behavior changes across different runs
- **Identify patterns**: Spot recurring issues or performance bottlenecks
- **Filter by status**: Focus on successful, failed, or in-progress executions
- **Search**: Find historical executions

Historical traces are automatically organized by project and environment, making it easy to find relevant executions.

## Configuring traces

GenSX provides flexible options for configuring and organizing traces for the GenSX Cloud serverless platform, local development, and any other deployment platform like vercel, cloudflare and AWS.

### Tracing GenSX Cloud workflows

When running workflows deployed to GenSX Cloud, tracing is automatically configured:

- **Project context**: Traces are associated with the correct project
- **Environment segregation**: Development, staging, and production traces are kept separate
- **Authentication**: API keys and organization information are handled automatically
- **Retention**: Traces are stored according to your plan limits

No additional configuration is needed – everything works out of the box.

### Tracing on other deployment platforms

To enable tracing for workflows deployed outside of GenSX Cloud (like AWS Lambda, GCP Cloud Run, etc.), you need to set several environment variables:

```bash
# Required variables
GENSX_API_KEY=your_api_key_here
GENSX_ORG=your_gensx_org_name
GENSX_PROJECT=your_project_name

# Optional variables
GENSX_ENVIRONMENT=your_environment_name        # Separate traces into specific environments
GENSX_CHECKPOINTS=false                        # Explicitly disable
```

### Configuring traces for local development

For local development, the tracing configuration is automatically inferred from:

1. The `gensx.yaml` file in your project root
2. Your local configuration managed by the `gensx` CLI in `~/.config/gensx/config`
3. Optionally the `GENSX_ENVIRONMENT` environment variable can be set to separate local traces from other environments

The local development server started with `gensx start` uses this same configuration scheme as well.

### Organizing traces by environment

GenSX allows you to organize traces by environment (such as development, staging, production, etc.) to keep your debugging data well-structured:

```bash
# Deploy to a specific environment with its own traces
gensx deploy src/workflows.tsx --env production
```

In the GenSX Console, you can filter traces by environment to focus on relevant executions. This separation also helps when:

- Debugging issues specific to an environment
- Comparing behavior between environments
- Isolating production traces from development noise

## Instrumenting additional code

Every GenSX component is automatically traced. If want to trace additional sub-steps of a workflow, wrap that code in a `gensx.Component` and execute it via `myComponent.Run(props)`.

```tsx
import * as gensx from "@gensx/core";

const MyWorkflow = gensx.Component("MyWorkflow", async ({ input }) => {
  // Step 1: Process input
  const processedData = await ProcessData.run({ data: input });

  // Step 2: Generate response
  const response = await GenerateResponse.run({ data: processedData });

  return response;
});

// Create a component to trace a specific processing step
const ProcessData = gensx.Component("ProcessData", async ({ data }) => {
  // This entire function execution will be captured in traces
  const parsedData = JSON.parse(data);
  const enrichedData = await fetchAdditionalInfo(parsedData);
  return enrichedData;
});

// Create a component to trace response generation
const GenerateResponse = gensx.Component(
  "GenerateResponse",
  async ({ data }) => {
    // This will appear as a separate node in the trace
    return `Processed result: ${JSON.stringify(data)}`;
  },
);
```

## Secrets scrubbing

GenSX enables you to configure which input props and outputs are marked as secrets and redacted from traces. Scrubbing happens locally before traces are sent to GenSX Cloud.

### How secrets scrubbing works

When a component executes, GenSX automatically:

1. Identifies secrets in component props and outputs
2. Replaces these secrets with `[secret]` in the trace data
3. Propagates secret detection across the entire component hierarchy

Even if a secret is passed down through multiple components, it remains scrubbed in all traces.

### Marking secrets in component props

To mark specific props as containing secrets:

```tsx
import * as gensx from "@gensx/core";

const AuthenticatedClient = gensx.Component(
  "AuthenticatedClient",
  ({ apiKey, endpoint, query, credentials }) => {
    // Use apiKey securely, knowing it won't appear in traces
    return fetchData(endpoint, query, apiKey, credentials);
  },
  {
    // Mark these props as containing sensitive data
    secretProps: ["apiKey", "credentials.privateKey"],
  },
);
```

The `secretProps` option can specify both top-level props and nested paths using dot notation.

### Marking component outputs as secrets

For components that might return sensitive information, you can mark the entire output as sensitive:

```tsx
const GenerateCredentials = gensx.Component(
  "GenerateCredentials",
  async ({ userId }) => {
    // This entire output will be marked as secret
    return {
      accessToken: "sk-1234567890abcdef",
      refreshToken: "rt-0987654321fedcba",
      expiresAt: Date.now() + 3600000,
    };
  },
  {
    secretOutputs: true,
  },
);
```

When `secretOutputs` is set to `true`, the entire output object or value will be treated as sensitive and masked in traces.

## Limits

GenSX observability features have certain limits based on your subscription tier:

| Feature                   | Free Tier      | Pro Tier ($20/month/dev) | Enterprise |
| ------------------------- | -------------- | ------------------------ | ---------- |
| Traced components         | 100K per month | 1M per month             | Custom     |
| Overage cost              | N/A            | $0.20 per 10K components | Custom     |
| Trace retention           | 7 days         | 30 days                  | Custom     |
| Maximum input/output size | 4MB each       | 4MB each                 | 4MB each   |

A few important notes on these limits:

- **Component count**: Each component execution in your workflow counts as one traced component
- **Size limits**: Component inputs and outputs are limited to 4MB each; larger data is truncated
- **Secret scrubbing**: API keys and sensitive data are automatically redacted from traces
- **Retention**: After the retention period, traces are automatically deleted

For use cases requiring higher limits or longer retention, contact the GenSX team for enterprise options.

## Next steps

- [Set up serverless deployments](/docs/cloud/serverless-deployments) to automatically trace cloud workflows
- [Learn about local development](/docs/cloud/local-development) for testing with traces
- [Explore project and environment organization](/docs/cloud/projects-environments) to structure your traces

# GenSX Cloud MCP server

`@gensx/gensx-cloud-mcp` is a Model Context Protocol server for [GenSX Cloud](/docs/cloud) workflows. It enables you to connect your GenSX Cloud workflows to MCP-compatible tools like Claude desktop, Cursor, and more.

![Running a GenSX workflow from Claude desktop](/cloud/claude-desktop.png)

## Usage

Once you have run [`gensx deploy`](/docs/cli-reference/deploy) to deploy your project to the [GenSX Cloud serverless runtime](/docs/cloud/serverless-deployments), you can consume those workflows via the `@gensx/gensx-cloud-mcp` server.

MCP-compatible tools use a standard JSON file to configure available MCP servers.

Update your MCP config file for your tool of choice to include the following:

```json
{
  "mcpServers": {
    "gensx": {
      "command": "npx",
      "args": [
        "-y",
        "@gensx/gensx-cloud-mcp",
        "you_org_name",
        "your_project_name",
        "your_environment_name"
      ]
    }
  }
}
```

Your MCP client will run this command automatically at startup and handle acquiring the GenSX Cloud MCP server on your behalf. See the [Claude desktop](https://modelcontextprotocol.io/quickstart/user), and [Cursor docs](https://docs.cursor.com/context/model-context-protocol) on configuring MCP servers for more details.

By default, the server reads your API credentials from the config saved by running the `gensx login` command. Alternatively, you can specify your GenSX API key as an environment variable in your MCP config:

```json
{
  "mcpServers": {
    "gensx": {
      "command": "npx",
      "args": [
        "@gensx/gensx-cloud-mcp",
        "you_org_name",
        "your_project_name",
        "your_environment_name"
      ],
      "env": {
        "GENSX_API_KEY": "my_api_key"
      }
    }
  }
}
```

The GenSX build process automatically extracts input and output schemas from your typescript types, so no additional configuration or manual `zod` schema is required to consume your workflows from an MCP server.

# Local development server

GenSX provides local development experience that mirrors the cloud environment, making it easy to build and test workflows on your machine before deploying them.

## Starting the dev server

The `gensx start` command launches a local development server with hot-reloading:

```bash
gensx start ./src/workflows.tsx
```

```bash
🔍 Starting GenSX Dev Server...
ℹ Starting development server...
✔ Compilation completed
✔ Generating schema
Importing compiled JavaScript file: /Users/evan/code/gensx-console/samples/support-tools/dist/src/workflows.js

🚀 GenSX Dev Server running at http://localhost:1337
🧪 Swagger UI available at http://localhost:1337/swagger-ui

📋 Available workflows:
- RAGWorkflow: http://localhost:1337/workflows/RAGWorkflow
- AnalyzeDiscordWorkflow: http://localhost:1337/workflows/AnalyzeDiscordWorkflow
- TextToSQLWorkflow: http://localhost:1337/workflows/TextToSQLWorkflow
- ChatAgent: http://localhost:1337/workflows/ChatAgent

✅ Server is running. Press Ctrl+C to stop.
```

## Development server features

### Identical API shape

The local API endpoints match exactly what you'll get in production, making it easy to test your workflows before deploying them. The only difference is that the `/org/{org}/project/{project}/environments/{env}` path is left out of the url for simplicity.

```
http://localhost:1337/workflows/{workflow}
```

Every workflow you export is automatically available as an API endpoint.

### Hot reloading

The development server watches your TypeScript files and automatically:

1. Recompiles when files change
2. Regenerates API schemas
3. Restarts the server with your updated code

This enables a fast development cycle without manual restarts.

### API documentation

The development server includes a built-in Swagger UI for exploring and testing your workflows:

```
http://localhost:1337/swagger-ui
```

![Swagger UI for local development](/cloud/local-swagger-ui.png)

The Swagger interface provides:

- Complete documentation of all your workflow APIs
- Interactive testing
- Request/response examples
- Schema information

## Running workflows locally

### Using the API

You can use any HTTP client to interact with your local API:

```bash
# Run a workflow synchronously
curl -X POST http://localhost:1337/workflows/ChatAgent \
  -H "Content-Type: application/json" \
  -d '{"input": {"prompt": "Tell me about GenSX"}}'

# Run asynchronously

curl -X POST http://localhost:1337/workflows/ChatAgent/start \
  -H "Content-Type: application/json" \
  -d '{"input": {"prompt": "Tell me about GenSX"}}'
```

The inputs and outputs of the APIs match exactly what you'll encounter in production.

### Using the Swagger UI

The built-in Swagger UI provides an easy way to inspect and test your workflows:

1. Navigate to `http://localhost:1337/swagger-ui`
2. Select the workflow you want to test
3. Click the "Try it out" button
4. Enter your input data
5. Execute the request and view the response

![Run a workflow from the Swagger UI](/cloud/swagger-execute.png)

## Local storage options

GenSX provides local implementations for cloud storage services, enabling you to develop and test stateful workflows without deploying to the cloud.

### Blob storage

When using `BlobProvider` in local development, data is stored in your local filesystem:

```tsx
import { BlobProvider, useBlob } from "@gensx/storage";

const StoreData = gensx.Component("StoreData", async ({ key, data }) => {
  // Locally, this will write to .gensx/blobs directory
  const blob = useBlob(`data/${key}.json`);
  await blob.putJSON(data);
  return { success: true };
});
```

Files are stored in the `.gensx/blobs` directory in your project, making it easy to inspect the stored data.

### SQL databases

When using `DatabaseProvider` locally, GenSX uses [libSQL](https://github.com/libsql/libsql) to provide a SQLite-compatible database:

```tsx
import { DatabaseProvider, useDatabase } from "@gensx/storage";

const QueryData = gensx.Component("QueryData", async ({ query }) => {
  // Locally, this creates a SQLite database in .gensx/databases
  const db = await useDatabase("my-database");
  const result = await db.execute(query);
  return result.rows;
});
```

Database files are stored in the `.gensx/databases` directory as SQLite files that you can inspect with any SQLite client.

### Vector search

For vector search operations with `SearchProvider`, your local environment connects to the cloud service:

```tsx
import { SearchProvider, useSearch } from "@gensx/storage";

const SearchDocs = gensx.Component("SearchDocs", async ({ query }) => {
  // Uses cloud vector search even in local development
  const namespace = await useSearch("documents");
  const results = await namespace.query({
    text: query,
    topK: 5,
  });
  return results;
});
```

## Next steps

- [Deploying to production](/docs/cloud/serverless-deployments)
- [Working with cloud storage](/docs/cloud/storage)
- [Setting up observability and tracing](/docs/cloud/observability)

# GenSX Cloud

GenSX Cloud provides everything you need to ship production-grade agents and workflows:

- **Serverless runtime**: One command to deploy all of your workflows and agents as REST APIs running on serverless infrastructure optimized for long-running agents and workflows. Support for synchronous and background invocation, streaming, and intermediate status included.
- **Cloud storage**: build stateful agents and workflows with builtin blob storage, SQL databases, and full-text + vector search indices -- all provisioned at runtime.
- **Tracing and observability**: Real-time tracing of all component inputs and outputs, tool calls, and LLM calls within your agents and workflows. Tools to visualize and debug all historic executions.
- **Collaboration**: Organize agents, workflows, and traces into projects and environments. Search and view traces and to debug historical executions.

Unlike traditional serverless offerings, GenSX Cloud is optimized for long-running workflows. Free tier workflows can run up to 5 minutes and Pro tier workflows can run for up to 60 minutes.

All of this is available on a free tier for individuals and with $20/developer pricing for teams.

## Serverless deployments

Serverless deployments allow you to turn your GenSX workflows and agents into APIs with a single command:

- **Generated REST APIs**: `gensx deploy` generates a REST API complete with schema and validation for every workflow in your project.
- **Long-running**: GenSX Cloud is optimized for long running LLM workloads. Workflows can run up to 5 minutes on the free tier and 60 minutes on the Pro tier.
- **Millisecond-level cold starts**: initial cold starts are on the order of 10s of milliseconds -- an order of magnitude faster than other serverless providers.

Serverless deployments are billed per-second, with 50,000 seconds included per month in the free tier for individuals.

Projects are deployed with a single CLI command:

```bash
$ npx gensx deploy ./src/workflows.tsx
```

```bash
✔ Building workflow using Docker
✔ Generating schema

✔ Successfully built project

ℹ Using project name from gensx.yaml: support-tools
✔ Deploying project to GenSX Cloud (Project: support-tools)

✔ Successfully deployed project to GenSX Cloud

Dashboard: https://app.gensx.com/gensx/support-tools/default/workflows

Available workflows:
- ChatAgent
- TextToSQLWorkflow
- RAGWorkflow
- AnalyzeDiscordWorkflow

Project: support-tools
```

Each workflow is available via both a synchronous and asynchronous API:

```
// For synchronous and streaming calls:
https://api.gensx.com/org/{orgName}/projects/{projectName}/environments/{environmentName}/workflows/{workflowName}
// For running workflows async in the background
https://api.gensx.com/org/{orgName}/projects/{projectName}/environments/{environmentName}/workflows/{workflowName}/start
```

For more details see the full [serverless deployments reference](/docs/cloud/serverless-deployments).

## Cloud storage

GenSX Cloud includes runtime-provisioned storage to build stateful agents and workflows:

- **Blob storage**: Store and retrieve JSON and binary data for things like conversation history, agent memory, and audio and image generation.
- **SQL databases**: Runtime provisioned databases for scenarios like text-to-SQL.
- **Full-text + vector search**: Store and query vector embeddings for semantic search and retrieval augmented generation (RAG).

State can be long-lived and shared across workflows and agents, or it can be provisioned ephemerally on a per-request basis.

### Blob storage

GenSX Cloud provides blob storage for persisting unstructured data like JSON, text, and binary files. With the `BlobProvider` component and `useBlob` hook, you can easily store and retrieve data across workflow executions.

Common scenarios enabled by blob storage include:

- Persistent chat thread history.
- Simple memory implementations.
- Storing generated audio, video, and photo files.

```tsx
import { BlobProvider, useBlob } from "@gensx/storage";

// Store and retrieve data with the useBlob hook
const ChatWithMemory = gensx.Component(
  "ChatWithMemory",
  async ({ userInput, threadId }) => {
    // Get access to a blob at a specific path
    const blob = useBlob(`chats/${threadId}.json`);

    // Load existing data (returns null if it doesn't exist)
    const history = (await blob.getJSON()) ?? [];

    // Add new data
    history.push({ role: "user", content: userInput });

    // Save updated data
    await blob.putJSON(history);

    return "Data stored successfully";
  },
);

// Just wrap your workflow with BlobProvider
const Workflow = gensx.Component("MyWorkflow", ({ userInput, threadId }) => (
  <BlobProvider>
    <ChatWithMemory userInput={userInput} threadId={threadId} />
  </BlobProvider>
));
```

Blob storage automatically adapts between local development (using filesystem) and cloud deployment with zero configuration changes.

For more details see the full [storage components reference](docs/component-reference/storage-components/blob-reference).

### SQL databases

GenSX Cloud provides SQLite-compatible databases powered by [Turso](https://turso.tech), enabling structured data storage with several properties important to agentic workloads:

- **Millisecond provisioning**: Databases are created on-demand in milliseconds, making them perfect for ephemeral workloads like parsing and querying user-uploaded CSVs or creating per-agent structured data stores.
- **Strong consistency**: All operations are linearizable, maintaining an ordered history, with writes fully serialized and subsequent writes awaiting transaction completion.
- **Zero configuration**: Like all GenSX storage components, databases work identically in both development and production.
- **Local development**: Uses libsql locally to enable a fast, isolated development loop without external dependencies.

```tsx
import { DatabaseProvider, useDatabase } from "@gensx/storage";

// Access a database with the useDatabase hook
const QueryTeamStats = gensx.Component("QueryTeamStats", async ({ team }) => {
  // Get access to a database (created on first use)
  const db = await useDatabase("baseball");

  // Execute SQL queries directly
  const result = await db.execute("SELECT * FROM players WHERE team = ?", [
    team,
  ]);

  return result.rows; // Returns the query results
});

// Just wrap your workflow with DatabaseProvider
const Workflow = ({ team }) => (
  <DatabaseProvider>
    <QueryTeamStats team={team} />
  </DatabaseProvider>
);
```

For more details see the full [storage components reference](docs/component-reference/storage-components/database-reference).

### Full-text and vector search

GenSX Cloud provides vector and full-text search capabilities powered by [turbopuffer](https://turbopuffer.com/), enabling semantic search and retrieval augmented generation (RAG) with minimal setup:

- **Vector search**: Store and query high-dimensional vectors for semantic similarity search with millisecond-level latency, perfect for RAG applications and finding content based on meaning rather than exact matches.
- **Full-text search**: Built-in BM25 search engine for string and string array fields, enabling traditional keyword search with low latency.
- **Hybrid search**: Combine vector similarity with full-text BM25 search to get both semantically relevant results and exact keyword matches in a single query.
- **Rich filtering**: Apply metadata filters to narrow down search results based on categories, timestamps, or any custom attributes, enhancing precision and relevance.

```tsx
import { SearchProvider, useNamespace } from "@gensx/storage";
import { OpenAIEmbedding } from "@gensx/openai";

// Perform semantic search with the useNamespace hook
const SearchDocuments = gensx.Component(
  "SearchDocuments",
  async ({ query }) => {
    // Get access to a vector search namespace
    const namespace = await useNamespace("documents");

    // Generate an embedding for the query
    const embedding = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: query,
    });

    // Search for similar documents
    const results = await namespace.query({
      vector: embedding.data[0].embedding,
      topK: 5,
    });

    return results.map((r) => r.attributes?.title);
  },
);

// Just wrap your workflow with SearchProvider
const Workflow = ({ query }) => (
  <SearchProvider>
    <SearchDocuments query={query} />
  </SearchProvider>
);
```

> **Note**: Unlike blob storage and SQL databases, vector search doesn't have a local development implementation. When using `SearchProvider` locally, you'll connect to the cloud service.

For more details see the full [storage components reference](docs/component-reference/storage-components/search-reference).

## Observability

GenSX Cloud provides comprehensive tracing and observability for all your workflows and agents.

![Workflow component tree](/cloud/trace.png)

- **Complete execution traces**: Every workflow execution generates a detailed trace that captures the entire flow from start to finish, allowing you to understand exactly what happened during execution.

- **Comprehensive component visibility**: Each component in your workflow automatically records its inputs and outputs, including:

  - All LLM calls with full prompts, parameters, and responses
  - Every tool invocation with input arguments and return values
  - All intermediate steps and state changes in your agents and workflows

- **Real-time monitoring**: Watch your workflows execute step by step in real time, which is especially valuable for debugging long-running agents or complex multi-step workflows.

- **Historical execution data**: Access and search through all past executions to diagnose issues, analyze performance patterns, and understand user interactions over time.

- **Project and environment organization**: Traces are automatically organized by project (a collection of related workflows in a codebase) and environment (such as development, staging, or production), making it easy to find relevant executions.

```tsx
// Traces are automatically captured when workflows are executed
// No additional instrumentation required
const result = await MyWorkflow.run(
  { input: "User query" },
  { printUrl: true }, // log the tracing URL
);
```

The trace viewer provides multiple ways to analyze workflow execution:

- **Timeline view**: See how long each component took and their sequence of execution
- **Component tree**: Navigate the hierarchical structure of your workflow
- **Input/output inspector**: Examine the exact data flowing between components
- **Error highlighting**: Quickly identify where failures occurred

![Component trace](/cloud/component-trace.png)

For more details see the full [observability reference](/docs/cloud/observability).

## Local development

GenSX provides a seamless development experience that mirrors the cloud environment, allowing you to build and test your workflows locally before deployment:

### Development server

The `gensx start` command launches a local development server that:

- Compiles your TypeScript workflows on the fly
- Automatically generates schemas for your workflows
- Creates local REST API endpoints identical to the cloud endpoints
- Hot-reloads your code when files change
- Provides the same API shape locally as in production

```bash
# Start the development server with a TypeScript file
npx gensx start ./src/workflows.tsx
```

When you start the development server, you'll see something like this:

```bash
🔍 Starting GenSX Dev Server...
ℹ Starting development server...
✔ Compilation completed
✔ Generating schema

🚀 GenSX Dev Server running at http://localhost:1337
🧪 Swagger UI available at http://localhost:1337/swagger-ui

📋 Available workflows:
- MyWorkflow: http://localhost:1337/workflows/MyWorkflow

✅ Server is running. Press Ctrl+C to stop.
```

### Local storage providers

GenSX provides local implementations for most storage providers, enabling development without cloud dependencies:

- **BlobProvider**: Uses local filesystem storage (`.gensx/blobs`) for development
- **DatabaseProvider**: Uses local SQLite databases (`.gensx/databases`) for development
- **SearchProvider**: Connects to the cloud vector search service even in development mode

The local APIs mirror the cloud APIs exactly, so code that works locally will work identically when deployed:

```tsx
// This component works the same locally and in the cloud
const SaveData = gensx.Component<{ key: string; data: any }, null>(
  "SaveData",
  async ({ key, data }) => {
    // Blob storage works the same locally (filesystem) and in cloud
    const blob = useBlob(`data/${key}.json`);
    await blob.putJSON(data);
    return null;
  },
);
```

For more details see the full [local development reference](/docs/cloud/local-development).

## Projects & environments

GenSX Cloud organizes your workflows and deployments using a flexible structure of projects and environments:

**Projects** are a collection of related workflows that are deployed together, typically corresponding to a codebase or application. Projects help you organize and manage your AI components as cohesive units.

Projects are defined by the `projectName` field in your `gensx.yaml` configuration file at the root of your codebase:

```yaml
# gensx.yaml
projectName: my-chatbot-app
```

**Environments** are sub-groupings within a project that allow you to deploy multiple instances of the same workflows with different configuration. This supports the common development pattern of separating dev, staging, and production environments.

```bash
# Deploy to the default environment
npx gensx deploy ./src/workflows.tsx

# Deploy to a specific environment
npx gensx deploy ./src/workflows.tsx --env production
```

Each environment can have its own configuration and environment variables to match the rest of your deployed infrastructure.

Traces and observability data are also separated by project and environment, making it easier to:

- Distinguish between development testing and production traffic
- Isolate and debug issues specific to a particular environment
- Compare performance or behavior between environments

This organizational structure is designed to be flexible and adaptable, allowing you to customize it to fit with the rest of your development, testing, and deployment lifecycle.

For more details see the full [projects and environments reference](/docs/cloud/projects-environments).

## Pricing

GenSX Cloud offers simple, predictable pricing designed to scale with your needs, including a free tier for individuals:

| Resource           | Free Tier              | Pro Tier ($20/month/dev) | Overage/Action   |
| ------------------ | ---------------------- | ------------------------ | ---------------- |
| Serverless Compute | 50K sec                | 500K sec                 | $0.00003/sec     |
| Traces (events)    | 100K events            | 1M events                | $0.20/10K        |
| Blob Storage       | 500MB                  | 5GB                      | $0.25/GB         |
| SQLite Storage     | 500MB                  | 1GB                      | $1.50/GB         |
| Vector Storage     | 250MB                  | 1GB                      | $1.00/GB         |
| Execution time     | Up to 5 minutes        | Up to 60 minutes         | Custom           |
| Observability      | 7 days trace retention | 30 days trace retention  | Custom retention |

For more details, visit our [pricing page](/docs/cloud/pricing) or [contact us](mailto:contact@gensx.com) for enterprise needs.

## Get started

Ready to build AI agents and workflows with GenSX Cloud? Follow our step-by-step [quickstart guide](/docs/quickstart) to create and deploy your first project in minutes:

1. Install the GenSX CLI: `npm install -g gensx`
2. Create a new project: `gensx new my-project`
3. Run it locally: `gensx start src/workflows.tsx`
4. Deploy to the cloud: `gensx deploy src/workflows.tsx`

# gensx start

The `gensx start` command starts a local development server that enables you to test and debug your GenSX workflows.

## Usage

```bash
gensx start <file> [options]
```

## Arguments

| Argument | Description                                             |
| -------- | ------------------------------------------------------- |
| `<file>` | The workflow file to serve (e.g., `src/workflows.tsx`). |

## Options

| Option                 | Description                        |
| ---------------------- | ---------------------------------- |
| `--port <port>`        | Port to run the server on.         |
| `-q, --quiet`          | Suppress output.                   |
| `-h, --help`           | Display help for the command.      |

## Description

This command starts a local development server that:

- Watches your workflow file for changes and automatically reloads
- Provides a web interface to test and debug your workflows
- Simulates the cloud environment locally
- Runs your workflow components in a development mode

The development server includes:

- A web UI for testing your workflows
- Real-time logs and execution visibility
- Access to the GenSX development dashboard

## Examples

```bash
# Start server with a specific workflow file
gensx start src/workflows.tsx

<<<<<<< HEAD
# Start server with minimal output
gensx start src/workflows.tsx --quiet
=======
# Start server with a custom project name
gensx start src/workflows.tsx --project my-custom-name

# Start server on port 3000
gensx start src/workflows.tsx --port 3000
>>>>>>> 4c75b171c6cd6b0bd9779d07cc1ca5b9e1679e0b
```

## Notes

- The server runs on port 1337 by default
- You can access the development UI at `http://localhost:1337/swagger-ui`
- Environment variables from your local environment are available to the workflow
- For more complex environment variable setups, consider using a `.env` file in your project root

# gensx run

The `gensx run` command executes a workflow that has been deployed to GenSX Cloud. By default it infers your project from the `gensx.yaml` file in the current working directory.

## Usage

```bash
gensx run <workflow> [options]
```

## Arguments

| Argument     | Description                  |
| ------------ | ---------------------------- |
| `<workflow>` | Name of the workflow to run. |

## Options

| Option                 | Description                                                  |
| ---------------------- | ------------------------------------------------------------ |
| `-i, --input <input>`  | Input to pass to the workflow (as JSON).                     |
| `--no-wait`            | Do not wait for the workflow to finish (run asynchronously). |
| `-p, --project <name>` | Project name where the workflow is deployed.                 |
| `-e, --env <name>`     | Environment name where the workflow is deployed.              |
| `-o, --output <file>`  | Output file to write the workflow result to.                 |
| `-h, --help`           | Display help for the command.                                |

## Description

This command triggers execution of a deployed workflow on GenSX Cloud with the specified input. By default, it waits for the workflow to complete and displays the result.

When running a workflow, you can:

- Provide input data as JSON
- Choose whether to wait for completion or run asynchronously
- Save the output to a file

## Examples

```bash
# Run a workflow with no input
gensx run MyWorkflow

# Run a workflow with JSON input
gensx run MyWorkflow --input '{"text": "Hello, world!"}'

# Run a workflow in a specific project and environment
gensx run MyWorkflow --project my-project --env prod

# Run a workflow asynchronously (don't wait for completion)
gensx run MyWorkflow --no-wait

# Run a workflow and save output to a file
gensx run MyWorkflow --output result.json
```

## Notes

- You must be logged in to GenSX Cloud to run workflows (`gensx login`)
- The workflow must have been previously deployed using `gensx deploy`
- When using `--input`, the input must be valid JSON
- When using `--no-wait`, the command returns immediately with a workflow ID that can be used to check status later
- Error handling: if the workflow fails, the command will return with a non-zero exit code and display the error

# gensx new

The `gensx new` command creates a new GenSX project with a predefined structure and dependencies.

## Usage

```bash
gensx new <project-directory> [options]
```

## Arguments

| Argument              | Description                                                                  |
| --------------------- | ---------------------------------------------------------------------------- |
| `<project-directory>` | Directory to create the project in. If it doesn't exist, it will be created. |

## Options

| Option                     | Description                                                                                     |
| -------------------------- | ----------------------------------------------------------------------------------------------- |
| `-t, --template <type>`    | Template to use. Currently supports `ts` (TypeScript).                                          |
| `-f, --force`              | Overwrite existing files in the target directory.                                               |
| `--skip-ide-rules`         | Skip IDE rules selection.                                                                       |
| `--ide-rules <rules>`      | Comma-separated list of IDE rules to install. Options: `cline`, `windsurf`, `claude`, `cursor`. |
| `-d, --description <desc>` | Optional project description.                                                                   |
| `-h, --help`               | Display help for the command.                                                                   |

## Description

This command scaffolds a new GenSX project with the necessary files and folder structure. It sets up:

- Project configuration files (`package.json`, `tsconfig.json`)
- Basic project structure with example workflows
- Development dependencies
- IDE integrations based on selected rules

## Examples

```bash
# Create a basic project
gensx new my-gensx-app

# Create a project with a specific template and description
gensx new my-gensx-app --template ts --description "My AI workflow app"

# Create a project with specific IDE rules
gensx new my-gensx-app --ide-rules cursor,claude

# Force create even if directory has existing files
gensx new my-gensx-app --force
```

## Notes

- If no template is specified, `ts` (TypeScript) is used by default.
- The command will install all required dependencies, so make sure you have npm installed.
- After creation, you can navigate to the project directory and start the development server with `gensx start`.

# gensx login

The `gensx login` command authenticates you with GenSX Cloud, allowing you to deploy and run workflows remotely.

## Usage

```bash
gensx login
```

## Description

When you run this command, it will:

1. Open your default web browser to the GenSX authentication page
2. Prompt you to log in with your GenSX account or create a new one
3. Store your authentication credentials locally for future CLI commands

After successful login, you can use other commands that require authentication, such as `deploy` and `run`.

## Examples

```bash
# Log in to GenSX Cloud
gensx login
```

## Notes

- Your authentication token is stored in your user directory (typically `~/.gensx/config.json`)
- The token is valid until you log out or revoke it from the GenSX dashboard
- If you're behind a corporate firewall or using strict network policies, ensure that outbound connections to `api.gensx.com` are allowed

# GenSX CLI reference

The GenSX command-line interface (CLI) provides a set of commands to help you build, deploy, and manage your GenSX applications.

## Installation

The GenSX CLI is included when you install the main GenSX package:

```bash
npm install -g gensx
```

## Available commands

### Auth
| Command                    | Description                      |
| -------------------------- | -------------------------------- |
| [`gensx login`](./login)   | Log in to GenSX Cloud            |

### Development
| Command                    | Description                      |
| -------------------------- | -------------------------------- |
| [`gensx new`](./new)       | Create a new GenSX project       |
| [`gensx start`](./start)   | Start a local development server |
| [`gensx build`](./build)   | Build a workflow for deployment  |

### Deployment & Execution
| Command                    | Description                      |
| -------------------------- | -------------------------------- |
| [`gensx deploy`](./deploy) | Deploy a workflow to GenSX Cloud |
| [`gensx run`](./run)       | Run a workflow on GenSX Cloud    |

### Environment Management
| Command                          | Description                                  |
| -------------------------------- | -------------------------------------------- |
| [`gensx env`](./env/show)     | Show the current environment details        |
| [`gensx env create`](./env/create) | Create a new environment                    |
| [`gensx env ls`](./env/ls)         | List all environments for a project          |
| [`gensx env select`](./env/select) | Select an environment as active             |
| [`gensx env unselect`](./env/unselect) | Unselect the current environment           |

## Common Workflows

### Starting a New Project
```bash
# Log in to GenSX Cloud
gensx login

# Create a new project
gensx new my-project
cd my-project

# Start local development
gensx start src/workflows.tsx
```

### Managing Environments
```bash
# Create and switch to a development environment
gensx env create dev
gensx env select dev

# View current environment
gensx env
```

### Deploying and Running Workflows
```bash
# Build and deploy your workflow
gensx deploy src/workflows.tsx

# Run a workflow
gensx run my-workflow --input '{"message": "Hello, world!"}'
```

For detailed information about each command, please refer to the corresponding documentation pages.

# gensx deploy

The `gensx deploy` command uploads and deploys a workflow to GenSX Cloud, making it available for remote execution.

## Usage

```bash
gensx deploy <file> [options]
```

## Arguments

| Argument | Description                                                                                |
| -------- | ------------------------------------------------------------------------------------------ |
| `<file>` | File to deploy. This should be a TypeScript file that exports a GenSX workflow. |

## Options

| Option                  | Description                                                                  |
| ----------------------- | ---------------------------------------------------------------------------- |
| `-ev, --env-var <KEY=value>` | Environment variable to include with deployment. Can be used multiple times. |
| `-p, --project <name>`  | Project name to deploy to.                                                   |
| `-e, --env <name>`      | Environment name to deploy to.                                               |
| `-h, --help`            | Display help for the command.                                                |

## Description

This command:

1. Builds your workflow
2. Uploads it to GenSX Cloud
3. Creates or updates the deployment
4. Sets up any environment variables specified

After successful deployment, your workflow will be available for remote execution via the [GenSX Cloud console](https://app.gensx.com) or through the `gensx run` command.

## Examples

```bash
# Deploy a workflow
gensx deploy src/workflows.tsx

# Deploy to a specific project and environment
gensx deploy src/workflows.tsx --project my-production-project --env dev

# Deploy with environment variables
gensx deploy src/workflows.tsx -ev API_KEY=abc123 -ev DEBUG=true

# Deploy with an environment variable taken from your local environment
gensx deploy src/workflows.tsx -ev OPENAI_API_KEY
```

## Notes

- You must be logged in to GenSX Cloud to deploy (`gensx login`)
- `gensx deploy` requires Docker to be running
- If your workflow requires API keys or other secrets, provide them using the `-ev` or `--env-var` option
- For environment variables without a specified value, the CLI will use the value from your local environment
- After deployment, you can manage your workflows from the GenSX Cloud console
- The deployment process automatically handles bundling dependencies

# gensx build

The `gensx build` command compiles and bundles a GenSX workflow for deployment to GenSX Cloud.

## Usage

```bash
gensx build <file> [options]
```

## Arguments

| Argument | Description                                                                                                    |
| -------- | -------------------------------------------------------------------------------------------------------------- |
| `<file>` | Workflow file to build (e.g., `src/workflows.tsx`). This should export an object with one or more GenSX workflows |

## Options

| Option                  | Description                                     |
| ----------------------- | ----------------------------------------------- |
| `-o, --out-dir <dir>`   | Output directory for the built files.           |
| `-t, --tsconfig <file>` | Path to a custom TypeScript configuration file. |
| `-h, --help`            | Display help for the command.                   |

## Description

This command builds your GenSX workflow into an optimized bundle that can be deployed to GenSX Cloud. It:

- Transpiles TypeScript to JavaScript
- Bundles all dependencies
- Optimizes the code for production
- Prepares the workflow for deployment

After building, the command outputs the path to the bundled file, which can be used with the [`gensx deploy`](/docs/cli-reference/deploy) command.

## Examples

```bash
# Build a workflow with default options
gensx build src/workflows.tsx

# Build a workflow with a custom output directory
gensx build src/workflows.tsx --out-dir ./dist

# Build a workflow with a custom TypeScript configuration
gensx build src/workflows.tsx --tsconfig ./custom-tsconfig.json
```

## Notes

- The build process requires that your workflow file exports an object with one or more GenSX workflows.
- `gensx build` requires Docker to be running
- If no output directory is specified, the build files will be placed in a `.gensx` directory
- The build process does not include environment variables - these should be provided during deployment

# Search reference

API reference for GenSX Cloud search components. Search is powered by turbopuffer, and their documentation for [query](https://turbopuffer.com/docs/query) and [upsert operations](https://turbopuffer.com/docs/write) is a useful reference to augment this document.

## Installation

```bash
npm install @gensx/storage
```

## SearchProvider

Provides vector search capabilities to its child components.

### Import

```tsx
import { SearchProvider } from "@gensx/storage";
```

### Example

```tsx
import { SearchProvider } from "@gensx/storage";

const Workflow = gensx.Component("SearchWorkflow", ({ input }) => (
  <SearchProvider>
    <YourComponent input={input} />
  </SearchProvider>
));
```

## useSearch

Hook that provides access to vector search for a specific namespace.

### Import

```tsx
import { useSearch } from "@gensx/storage";
```

### Signature

```tsx
function useSearch(name: string): Namespace;
```

### Parameters

| Parameter | Type     | Description                  |
| --------- | -------- | ---------------------------- |
| `name`    | `string` | The namespace name to access |

### Returns

Returns a namespace object with methods to interact with vector search.

### Example

```tsx
const namespace = await useSearch("documents");
const results = await namespace.query({
  vector: queryEmbedding,
  includeAttributes: true,
});
```

## Namespace methods

The namespace object returned by `useSearch` provides these methods:

### write

Inserts, updates, or deletes vectors in the namespace.

```tsx
async write(options: WriteParams): Promise<number>
```

#### Parameters

| Parameter         | Type             | Default     | Description                                 |
| ----------------- | ---------------- | ----------- | ------------------------------------------- |
| `upsertColumns`   | `UpsertColumns`  | `undefined` | Column-based format for upserting documents |
| `upsertRows`      | `UpsertRows`     | `undefined` | Row-based format for upserting documents    |
| `patchColumns`    | `PatchColumns`   | `undefined` | Column-based format for patching documents  |
| `patchRows`       | `PatchRows`      | `undefined` | Row-based format for patching documents     |
| `deletes`         | `Id[]`           | `undefined` | Array of document IDs to delete             |
| `deleteByFilter`  | `Filters`        | `undefined` | Filter to match documents for deletion      |
| `distanceMetric`  | `DistanceMetric` | `undefined` | Distance metric for similarity calculations |
| `schema`          | `Schema`         | `undefined` | Optional schema definition for attributes   |

#### Example

```tsx
// Upsert documents in column-based format
await namespace.write({
  upsertColumns: {
    id: ["doc-1", "doc-2"],
    vector: [[0.1, 0.2, 0.3], [0.4, 0.5, 0.6]],
    text: ["Document 1", "Document 2"],
    category: ["article", "blog"]
  },
  distanceMetric: "cosine_distance",
  schema: {
    text: { type: "string" },
    category: { type: "string" }
  }
});

// Upsert documents in row-based format
await namespace.write({
  upsertRows: [
    {
      id: "doc-1",
      vector: [0.1, 0.2, 0.3],
      text: "Document 1",
      category: "article"
    },
    {
      id: "doc-2",
      vector: [0.4, 0.5, 0.6],
      text: "Document 2",
      category: "blog"
    }
  ],
  distanceMetric: "cosine_distance"
});

// Delete documents by ID
await namespace.write({
  deletes: ["doc-1", "doc-2"]
});

// Delete documents by filter
await namespace.write({
  deleteByFilter: [
    "And",
    [
      ["category", "Eq", "article"],
      ["createdAt", "Lt", "2023-01-01"]
    ]
  ]
});

// Patch documents (update specific fields)
await namespace.write({
  patchRows: [
    {
      id: "doc-1",
      category: "updated-category"
    }
  ]
});
```

#### Return value

Returns the number of rows affected by the operation.

### query

Searches for similar vectors based on a query vector.

```tsx
async query(options: QueryOptions): Promise<QueryResults>
```

#### Parameters

| Parameter           | Type                                     | Default     | Description                              |
| ------------------- | ---------------------------------------- | ----------- | ---------------------------------------- |
| `vector`            | `number[]`                               | Required    | Query vector for similarity search       |
| `topK`              | `number`                                 | `10`        | Number of results to return              |
| `includeVectors`    | `boolean`                                | `false`     | Whether to include vectors in results    |
| `includeAttributes` | `boolean \| string[]`                    | `true`      | Include all attributes or specified ones |
| `filters`           | `Filters`                                | `undefined` | Metadata filters                         |
| `rankBy`            | `RankBy`                                 | `undefined` | Attribute-based ranking or text ranking  |
| `consistency`       | `string`                                 | `undefined` | Consistency level for reads              |

#### Example

```tsx
const results = await namespace.query({
  vector: [0.1, 0.2, 0.3, ...],     // Query vector
  topK: 10,                         // Number of results to return
  includeVectors: false,            // Whether to include vectors in results
  includeAttributes: true,          // Include all attributes or specific ones
  filters: [                        // Optional metadata filters
    "And",
    [
      ["category", "Eq", "article"],
      ["createdAt", "Gte", "2023-01-01"]
    ]
  ],
  rankBy: ["attributes.importance", "asc"],  // Optional attribute-based ranking
});
```

#### Return value

Returns an array of matched documents with similarity scores:

```tsx
[
  {
    id: "doc-1",            // Document ID
    score: 0.87,            // Similarity score (0-1)
    vector?: number[],      // Original vector (if includeVectors=true)
    attributes?: {          // Metadata (if includeAttributes=true)
      text: "Document content",
      category: "article",
      createdAt: "2023-07-15"
    }
  },
  // ...more results
]
```

### getSchema

Retrieves the current schema for the namespace.

```tsx
async getSchema(): Promise<Schema>
```

#### Example

```tsx
const schema = await namespace.getSchema();
console.log(schema);
// {
//   text: "string",
//   category: "string",
//   createdAt: "string"
// }
```

### updateSchema

Updates the schema for the namespace.

```tsx
async updateSchema(options: { schema: Schema }): Promise<Schema>
```

#### Parameters

| Parameter | Type     | Description           |
| --------- | -------- | --------------------- |
| `schema`  | `Schema` | New schema definition |

#### Example

```tsx
const updatedSchema = await namespace.updateSchema({
  schema: {
    text: "string",
    category: "string",
    createdAt: "string",
    newField: "number", // Add new field
    tags: "string[]", // Add array field
  },
});
```

#### Return value

Returns the updated schema.

### getMetadata

Retrieves metadata about the namespace.

```tsx
async getMetadata(): Promise<NamespaceMetadata>
```

#### Example

```tsx
const metadata = await namespace.getMetadata();
console.log(metadata);
// {
//   vectorCount: 1250,
//   dimensions: 1536,
//   distanceMetric: "cosine_distance",
//   created: "2023-07-15T12:34:56Z"
// }
```

## Namespace management

Higher-level operations for managing namespaces (these are accessed directly from the search object, not via `useSearch`):

```tsx
import { SearchClient } from "@gensx/storage";

const search = new SearchClient();

// List all namespaces
const namespaces = await search.listNamespaces({
  prefix: "docs-", // Optional prefix filter
});

// Check if namespace exists
const exists = await search.namespaceExists("my-namespace");

// Create namespace if it doesn't exist
const { created } = await search.ensureNamespace("my-namespace");

// Delete a namespace
const { deleted } = await search.deleteNamespace("old-namespace");

// Get a namespace directly for vector operations
const namespace = search.getNamespace("products");

// Write vectors using the namespace
await namespace.write({
  upsertRows: [
    {
      id: "product-1",
      vector: [0.1, 0.3, 0.5, ...], // embedding vector
      name: "Ergonomic Chair",
      category: "furniture",
      price: 299.99
    },
    {
      id: "product-2",
      vector: [0.2, 0.4, 0.6, ...],
      name: "Standing Desk",
      category: "furniture",
      price: 499.99
    }
  ],
  distanceMetric: "cosine_distance",
  schema: {
    name: { type: "string" },
    category: { type: "string" },
    price: { type: "number" }
  }
});

// Query vectors directly with the namespace
const searchResults = await namespace.query({
  vector: [0.15, 0.35, 0.55, ...], // query vector
  topK: 5,
  includeAttributes: true,
  filters: [
    "And",
    [
      ["category", "Eq", "furniture"],
      ["price", "Lt", 400]
    ]
  ]
});
```

The `SearchClient` is a standard typescript library and can be used outside of GenSX workflows in your normal application code as well.

## useSearchStorage

Hook that provides direct access to the search storage instance, which includes higher-level namespace management functions.

### Import

```tsx
import { useSearchStorage } from "@gensx/storage";
```

### Signature

```tsx
function useSearchStorage(): SearchStorage;
```

### Example

```tsx
const searchStorage = useSearchStorage();
```

The search storage object provides these management methods:

### getNamespace

Get a namespace object for direct interaction.

```tsx
// Get a namespace directly (without calling useSearch)
const searchStorage = useSearchStorage();
const namespace = searchStorage.getNamespace("documents");

// Usage example
await namespace.write({
  upsertRows: [...],
  distanceMetric: "cosine_distance"
});
```

### listNamespaces

List all namespaces in your project.

```tsx
const searchStorage = useSearchStorage();
const namespaces = await searchStorage.listNamespaces({
  prefix: "docs-" // Optional prefix filter
});
console.log(namespaces); // ["docs-articles", "docs-products"]
```

### ensureNamespace

Create a namespace if it doesn't exist.

```tsx
const searchStorage = useSearchStorage();
const { created } = await searchStorage.ensureNamespace("documents");
if (created) {
  console.log("Namespace was created");
} else {
  console.log("Namespace already existed");
}
```

### deleteNamespace

Delete a namespace and all its data.

```tsx
const searchStorage = useSearchStorage();
const { deleted } = await searchStorage.deleteNamespace("old-namespace");
if (deleted) {
  console.log("Namespace was deleted");
} else {
  console.log("Namespace could not be deleted");
}
```

### namespaceExists

Check if a namespace exists.

```tsx
const searchStorage = useSearchStorage();
const exists = await searchStorage.namespaceExists("documents");
if (exists) {
  console.log("Namespace exists");
} else {
  console.log("Namespace does not exist");
}
```

### hasEnsuredNamespace

Check if a namespace has been ensured in the current session.

```tsx
const searchStorage = useSearchStorage();
const isEnsured = searchStorage.hasEnsuredNamespace("documents");
if (isEnsured) {
  console.log("Namespace has been ensured in this session");
} else {
  console.log("Namespace has not been ensured yet");
}
```

## SearchClient

The `SearchClient` class provides a way to interact with GenSX vector search capabilities outside of the GenSX workflow context, such as from regular Node.js applications or server endpoints.

### Import

```tsx
import { SearchClient } from "@gensx/storage";
```

### Constructor

```tsx
constructor()
```

#### Example

```tsx
const searchClient = new SearchClient();
```

### Methods

#### getNamespace

Get a namespace instance and ensure it exists first.

```tsx
async getNamespace(name: string): Promise<Namespace>
```

##### Example

```tsx
const namespace = await searchClient.getNamespace("products");

// Then use the namespace to upsert or query vectors
await namespace.write({
  upsertRows: [
    {
      id: "product-1",
      vector: [0.1, 0.2, 0.3, ...],
      name: "Product 1",
      category: "electronics"
    }
  ],
  distanceMetric: "cosine_distance"
});
```

#### ensureNamespace

Create a namespace if it doesn't exist.

```tsx
async ensureNamespace(name: string): Promise<EnsureNamespaceResult>
```

##### Example

```tsx
const { created } = await searchClient.ensureNamespace("products");
if (created) {
  console.log("Namespace was created");
}
```

#### listNamespaces

List all namespaces.

```tsx
async listNamespaces(options?: { prefix?: string }): Promise<string[]>
```

##### Example

```tsx
const namespaces = await searchClient.listNamespaces({
  prefix: "customer-" // Optional prefix filter
});
console.log("Available namespaces:", namespaces);
```

#### deleteNamespace

Delete a namespace.

```tsx
async deleteNamespace(name: string): Promise<DeleteNamespaceResult>
```

##### Example

```tsx
const { deleted } = await searchClient.deleteNamespace("temp-namespace");
if (deleted) {
  console.log("Namespace was removed");
}
```

#### namespaceExists

Check if a namespace exists.

```tsx
async namespaceExists(name: string): Promise<boolean>
```

##### Example

```tsx
if (await searchClient.namespaceExists("products")) {
  console.log("Products namespace exists");
} else {
  console.log("Products namespace doesn't exist yet");
}
```

### Usage in applications

The SearchClient is particularly useful when you need to access vector search functionality from:

- Regular Express.js or Next.js API routes
- Background jobs or workers
- Custom scripts or tools
- Any Node.js application outside the GenSX workflow context

```tsx
// Example: Using SearchClient in an Express handler
import express from 'express';
import { SearchClient } from '@gensx/storage';
import { OpenAI } from 'openai';

const app = express();
const searchClient = new SearchClient();
const openai = new OpenAI();

app.post('/api/search', async (req, res) => {
  try {
    const { query } = req.body;

    // Generate embedding for the query
    const embedding = await openai.embeddings.create({
      model: "text-embedding-3-small",
      input: query
    });

    // Search for similar documents
    const namespace = await searchClient.getNamespace('documents');
    const results = await namespace.query({
      vector: embedding.data[0].embedding,
      topK: 5,
      includeAttributes: true
    });

    res.json(results);
  } catch (error) {
    console.error('Search error:', error);
    res.status(500).json({ error: 'Search error' });
  }
});

app.listen(3000, () => {
  console.log('Server running on port 3000');
});
```

## Filter operators

Filters use a structured array format with the following pattern:

```tsx
// Basic filter structure
[
  "Operation",      // And, Or, Not
  [                 // Array of conditions
    ["field", "Operator", value]
  ]
]
```

Available operators:

| Operator      | Description            | Example                                      |
| ------------- | ---------------------- | -------------------------------------------- |
| `Eq`          | Equals                 | `["field", "Eq", "value"]`                   |
| `Ne`          | Not equals             | `["field", "Ne", "value"]`                   |
| `Gt`          | Greater than           | `["field", "Gt", 10]`                        |
| `Gte`         | Greater than or equal  | `["field", "Gte", 10]`                       |
| `Lt`          | Less than              | `["field", "Lt", 10]`                        |
| `Lte`         | Less than or equal     | `["field", "Lte", 10]`                       |
| `In`          | In array               | `["field", "In", ["a", "b"]]`                |
| `Nin`         | Not in array           | `["field", "Nin", ["a", "b"]]`               |
| `Contains`    | String contains        | `["field", "Contains", "text"]`              |
| `ContainsAny` | Contains any of values | `["tags", "ContainsAny", ["news", "tech"]]`  |
| `ContainsAll` | Contains all values    | `["tags", "ContainsAll", ["imp", "urgent"]]` |

## RankBy options

The `rankBy` parameter can be used in two primary ways:

### Attribute-based ranking

Sorts by a field in ascending or descending order:

```tsx
// Sort by the createdAt attribute in ascending order
rankBy: ["createdAt", "asc"]

// Sort by price in descending order (highest first)
rankBy: ["price", "desc"]
```

### Text-based ranking

For full-text search relevance scoring:

```tsx
// Basic BM25 text ranking
rankBy: ["text", "BM25", "search query"]

// BM25 with multiple search terms
rankBy: ["text", "BM25", ["term1", "term2"]]

// Combined text ranking strategies
rankBy: ["Sum", [
  ["text", "BM25", "search query"],
  ["text", "BM25", "another term"]
]]

// Weighted text ranking (multiply BM25 score by 0.5)
rankBy: ["Product", [["text", "BM25", "search query"], 0.5]]

// Alternative syntax for weighted ranking
rankBy: ["Product", [0.5, ["text", "BM25", "search query"]]]
```

Use these options to fine-tune the relevance and ordering of your search results.

# Database reference

API reference for GenSX Cloud SQL database components.

## Installation

```bash
npm install @gensx/storage
```

## DatabaseProvider

Provides SQL database capabilities to its child components.

### Import

```tsx
import { DatabaseProvider } from "@gensx/storage";
```

### Props

| Prop            | Type                  | Default     | Description                                      |
| --------------- | --------------------- | ----------- | ------------------------------------------------ |
| `kind`          | `"filesystem" \| "cloud"` | Auto-detected | The storage backend to use. Defaults filesystem when running locally and cloud when deployed to the serverless runtime.                   |
| `rootDir`       | `string`              | `".gensx/databases"` | Root directory for storing database files (filesystem only) |

### Example

```tsx
import { DatabaseProvider } from "@gensx/storage";

// Cloud storage (production)
const Workflow = gensx.Component("DatabaseWorkflow", ({ input }) => (
  <DatabaseProvider>
    <YourComponent input={input} />
  </DatabaseProvider>
));

// Local filesystem storage (development)
const DevWorkflow = gensx.Component("DevDatabaseWorkflow", ({ input }) => (
  <DatabaseProvider kind="filesystem" rootDir="./data">
    <YourComponent input={input} />
  </DatabaseProvider>
));
```

## useDatabase

Hook that provides access to a specific SQL database.

### Import

```tsx
import { useDatabase } from "@gensx/storage";
```

### Signature

```tsx
function useDatabase(name: string): Database;
```

### Parameters

| Parameter | Type     | Description                 |
| --------- | -------- | --------------------------- |
| `name`    | `string` | The database name to access |

### Returns

Returns a database object with methods to interact with SQL database.

### Example

```tsx
const db = await useDatabase("users");
const result = await db.execute("SELECT * FROM users WHERE id = ?", [
  "user-123",
]);
```

## Database methods

The database object returned by `useDatabase` provides these methods:

### execute

Executes a single SQL statement with optional parameters.

```tsx
async execute(sql: string, params?: InArgs): Promise<DatabaseResult>
```

#### Parameters

| Parameter | Type     | Description                                |
| --------- | -------- | ------------------------------------------ |
| `sql`     | `string` | SQL statement to execute                   |
| `params`  | `InArgs` | Optional parameters for prepared statement |

> `InArgs` can be provided as an array of values or as a record with named parameters. Values can be primitives, booleans, Uint8Array, or Date objects.

#### Example

```tsx
// Query with parameters
const result = await db.execute("SELECT * FROM users WHERE email = ?", [
  "user@example.com",
]);

// Insert data
await db.execute("INSERT INTO users (id, name, email) VALUES (?, ?, ?)", [
  "user-123",
  "John Doe",
  "john@example.com",
]);

// Update data
await db.execute("UPDATE users SET last_login = ? WHERE id = ?", [
  new Date().toISOString(),
  "user-123",
]);
```

#### Return value

Returns a result object with the following properties:

```tsx
{
  columns: string[];        // Column names from result set
  rows: unknown[][];        // Array of result rows as arrays
  rowsAffected: number;     // Number of rows affected by statement
  lastInsertId?: number;    // ID of last inserted row (for INSERT statements)
}
```

### batch

Executes multiple SQL statements in a single transaction.

```tsx
async batch(statements: DatabaseStatement[]): Promise<DatabaseBatchResult>
```

#### Parameters

| Parameter    | Type                  | Description                                      |
| ------------ | --------------------- | ------------------------------------------------ |
| `statements` | `DatabaseStatement[]` | Array of SQL statements with optional parameters |

#### DatabaseStatement format

```tsx
{
  sql: string;     // SQL statement
  params?: InArgs; // Optional parameters
}
```

#### Example

```tsx
const results = await db.batch([
  {
    sql: "INSERT INTO users (id, name) VALUES (?, ?)",
    params: ["user-123", "John Doe"],
  },
  {
    sql: "INSERT INTO user_preferences (user_id, theme) VALUES (?, ?)",
    params: ["user-123", "dark"],
  },
]);
```

#### Return value

Returns a result object containing an array of individual results:

```tsx
{
  results: [
    {
      columns: [],
      rows: [],
      rowsAffected: 1,
      lastInsertId: 42
    },
    {
      columns: [],
      rows: [],
      rowsAffected: 1,
      lastInsertId: 43
    }
  ]
}
```

### executeMultiple

Executes multiple SQL statements as a script (without transaction semantics).

```tsx
async executeMultiple(sql: string): Promise<DatabaseBatchResult>
```

#### Parameters

| Parameter | Type     | Description                                     |
| --------- | -------- | ----------------------------------------------- |
| `sql`     | `string` | Multiple SQL statements separated by semicolons |

#### Example

```tsx
const results = await db.executeMultiple(`
  CREATE TABLE IF NOT EXISTS users (
    id TEXT PRIMARY KEY,
    name TEXT NOT NULL,
    created_at TEXT DEFAULT CURRENT_TIMESTAMP
  );

  CREATE INDEX IF NOT EXISTS idx_users_name ON users(name);
`);
```

#### Return value

Returns a result object containing an array of individual results, one for each statement executed.

### migrate

Executes SQL migration statements with foreign keys disabled.

```tsx
async migrate(sql: string): Promise<DatabaseBatchResult>
```

#### Parameters

| Parameter | Type     | Description              |
| --------- | -------- | ------------------------ |
| `sql`     | `string` | SQL migration statements |

#### Example

```tsx
const results = await db.migrate(`
  -- Migration v1: Initial schema
  CREATE TABLE IF NOT EXISTS users (
    id TEXT PRIMARY KEY,
    name TEXT NOT NULL,
    email TEXT UNIQUE,
    created_at TEXT DEFAULT CURRENT_TIMESTAMP
  );

  -- Migration v2: Add last_login field
  ALTER TABLE users ADD COLUMN last_login TEXT;
`);
```

#### Return value

Returns a result object containing an array of individual results, one for each statement executed.

### getInfo

Retrieves metadata about the database.

```tsx
async getInfo(): Promise<DatabaseInfo>
```

#### Example

```tsx
const info = await db.getInfo();
console.log(info);
// {
//   name: "users",
//   size: 12800,
//   lastModified: Date("2023-07-15T12:34:56Z"),
//   tables: [
//     {
//       name: "users",
//       columns: [
//         {
//           name: "id",
//           type: "TEXT",
//           notNull: true,
//           primaryKey: true
//         },
//         {
//           name: "name",
//           type: "TEXT",
//           notNull: true,
//           primaryKey: false
//         }
//       ]
//     }
//   ]
// }
```

## Database management

Higher-level operations for managing databases are available through the `useDatabaseStorage` hook:

### useDatabaseStorage

Hook that provides access to the database storage instance, which includes higher-level database management functions.

```tsx
import { useDatabaseStorage } from "@gensx/storage";

// Get access to database management functions
const dbStorage = useDatabaseStorage();
```

The database storage object provides these management methods:

### listDatabases

Lists all databases in your project.

```tsx
import { useDatabaseStorage } from "@gensx/storage";

const dbStorage = useDatabaseStorage();
const databases = await dbStorage.listDatabases();
console.log(databases); // ["users", "products", "analytics"]
```

### ensureDatabase

Creates a database if it doesn't exist.

```tsx
const dbStorage = useDatabaseStorage();
const { created } = await dbStorage.ensureDatabase("new-database");
if (created) {
  console.log("Database was created");
} else {
  console.log("Database already existed");
}
```

### deleteDatabase

Deletes a database and all its data.

```tsx
const dbStorage = useDatabaseStorage();
const { deleted } = await dbStorage.deleteDatabase("old-database");
if (deleted) {
  console.log("Database was deleted");
} else {
  console.log("Database could not be deleted");
}
```

### hasEnsuredDatabase

Checks if a database has been ensured in the current session.

```tsx
const dbStorage = useDatabaseStorage();
const isEnsured = dbStorage.hasEnsuredDatabase("my-database");

if (isEnsured) {
  console.log("Database has been ensured in this session");
} else {
  console.log("Database has not been ensured yet");
}
```

### getDatabase

Get a database instance directly (without calling useDatabase).

```tsx
const dbStorage = useDatabaseStorage();

// Get a database directly
// Note: This doesn't ensure the database exists, unlike useDatabase
const db = dbStorage.getDatabase("users");

// You may want to ensure it exists first
await dbStorage.ensureDatabase("users");
const db = dbStorage.getDatabase("users");
```

## DatabaseClient

The `DatabaseClient` class provides a way to interact with GenSX databases outside of the GenSX workflow context, such as from regular Node.js applications or server endpoints.

### Import

```tsx
import { DatabaseClient } from "@gensx/storage";
```

### Constructor

```tsx
constructor(props?: DatabaseProviderProps)
```

#### Parameters

| Parameter | Type                  | Default     | Description                                      |
| --------- | --------------------- | ----------- | ------------------------------------------------ |
| `props`   | `DatabaseProviderProps` | `{}` | Optional configuration properties                |

#### Example

```tsx
// Default client (uses filesystem locally, cloud in production)
const dbClient = new DatabaseClient();

// Explicitly use filesystem storage
const localClient = new DatabaseClient({
  kind: "filesystem",
  rootDir: "./my-data"
});

// Explicitly use cloud storage
const cloudClient = new DatabaseClient({ kind: "cloud" });
```

### Methods

#### getDatabase

Get a database instance and ensure it exists first.

```tsx
async getDatabase(name: string): Promise<Database>
```

##### Example

```tsx
const db = await dbClient.getDatabase("users");
const results = await db.execute("SELECT * FROM users LIMIT 10");
```

#### ensureDatabase

Create a database if it doesn't exist.

```tsx
async ensureDatabase(name: string): Promise<EnsureDatabaseResult>
```

##### Example

```tsx
const { created } = await dbClient.ensureDatabase("analytics");
if (created) {
  console.log("Database was created");
}
```

#### listDatabases

List all databases.

```tsx
async listDatabases(): Promise<string[]>
```

##### Example

```tsx
const databases = await dbClient.listDatabases();
console.log("Available databases:", databases);
```

#### deleteDatabase

Delete a database.

```tsx
async deleteDatabase(name: string): Promise<DeleteDatabaseResult>
```

##### Example

```tsx
const { deleted } = await dbClient.deleteDatabase("temp-db");
if (deleted) {
  console.log("Database was removed");
}
```

#### databaseExists

Check if a database exists.

```tsx
async databaseExists(name: string): Promise<boolean>
```

##### Example

```tsx
if (await dbClient.databaseExists("users")) {
  console.log("Users database exists");
} else {
  console.log("Users database doesn't exist yet");
}
```

### Usage in applications

The DatabaseClient is particularly useful when you need to access GenSX databases from:

- Regular Express.js or Next.js API routes
- Background jobs or workers
- Custom scripts or tools
- Any Node.js application outside the GenSX workflow context

```tsx
// Example: Using DatabaseClient in an Express handler
import express from 'express';
import { DatabaseClient } from '@gensx/storage';

const app = express();
const dbClient = new DatabaseClient();

app.get('/api/users', async (req, res) => {
  try {
    const db = await dbClient.getDatabase('users');
    const result = await db.execute('SELECT * FROM users');
    res.json(result.rows);
  } catch (error) {
    console.error('Database error:', error);
    res.status(500).json({ error: 'Database error' });
  }
});

app.listen(3000, () => {
  console.log('Server running on port 3000');
});
```

# Blob storage reference

API reference for GenSX Cloud blob storage components.

## Installation

```bash
npm install @gensx/storage
```

## BlobProvider

Provides blob storage capabilities to its child components.

### Import

```tsx
import { BlobProvider } from "@gensx/storage";
```

### Props

| Prop            | Type                      | Default        | Description                           |
| --------------- | ------------------------- | -------------- | ------------------------------------- |
| `kind`          | `"filesystem" \| "cloud"` | Auto-detected  | Storage backend to use. Defaults filesystem when running locally and cloud when deployed to the serverless runtime.                |
| `rootDir`       | `string`                  | `.gensx/blobs` | Root directory for filesystem storage |
| `defaultPrefix` | `string`                  | `undefined`    | Optional prefix for all blob keys     |

### Example

```tsx
import { BlobProvider } from "@gensx/storage";

const Workflow = gensx.Component("Workflow", ({ input }) => (
  <BlobProvider kind="cloud">
    <YourComponent input={input} />
  </BlobProvider>
));
```

## useBlob

Hook that provides access to blob storage for a specific key.

### Import

```tsx
import { useBlob } from "@gensx/storage";
```

### Signature

```tsx
function useBlob<T = unknown>(key: string): Blob<T>;
```

### Parameters

| Parameter | Type         | Description                      |
| --------- | ------------ | -------------------------------- |
| `key`     | `string`     | The unique key for the blob      |
| `T`       | Generic type | Type of the JSON data (optional) |

### Returns

Returns a blob object with methods to interact with blob storage.

### Example

```tsx
const blob = useBlob<UserProfile>("users/123.json");
const profile = await blob.getJSON();
```

## Blob methods

The blob object returned by `useBlob` provides these methods:

### JSON operations

```tsx
// Get JSON data
const data = await blob.getJSON(); // Returns null if not found

// Save JSON data
await blob.putJSON(data, options); // Returns { etag: string }
```

### String operations

```tsx
// Get string content
const text = await blob.getString(); // Returns null if not found

// Save string content
await blob.putString("Hello world", options); // Returns { etag: string }
```

### Binary operations

```tsx
// Get binary data with metadata
const result = await blob.getRaw(); // Returns null if not found
// Returns { content, contentType, etag, lastModified, size, metadata }

// Save binary data
await blob.putRaw(buffer, options); // Returns { etag: string }
```

### Stream operations

```tsx
// Get data as a stream
const stream = await blob.getStream();

// Save data from a stream
await blob.putStream(readableStream, options); // Returns { etag: string }
```

### Metadata operations

```tsx
// Check if blob exists
const exists = await blob.exists(); // Returns boolean

// Delete blob
await blob.delete();

// Get metadata
const metadata = await blob.getMetadata(); // Returns null if not found

// Update metadata
await blob.updateMetadata({
  key1: "value1",
  key2: "value2",
});
```

## Options object

Many methods accept an options object with these properties:

```tsx
{
  contentType?: string,         // MIME type of the content
  etag?: string,                // For optimistic concurrency control
  metadata?: {                  // Custom metadata key-value pairs
    [key: string]: string
  }
}
```

## useBlobStorage

Hook that provides direct access to the blob storage instance, allowing you to perform blob operations across multiple keys.

### Import

```tsx
import { useBlobStorage } from "@gensx/storage";
```

### Signature

```tsx
function useBlobStorage(): BlobStorage;
```

### Example

```tsx
const blobStorage = useBlobStorage();
```

The blob storage object provides these methods:

### getBlob

Get a blob object for a specific key.

```tsx
const blobStorage = useBlobStorage();
const userBlob = blobStorage.getBlob<UserProfile>("users/123.json");
```

### listBlobs

List all blob keys with an optional prefix filter.

```tsx
const blobStorage = useBlobStorage();
const userBlobKeys = await blobStorage.listBlobs("users/");
console.log(userBlobKeys); // ["users/123.json", "users/456.json"]
```

### blobExists

Check if a blob exists.

```tsx
const blobStorage = useBlobStorage();
const exists = await blobStorage.blobExists("users/123.json");
if (exists) {
  console.log("User profile exists");
}
```

### deleteBlob

Delete a blob.

```tsx
const blobStorage = useBlobStorage();
const { deleted } = await blobStorage.deleteBlob("temp/file.json");
if (deleted) {
  console.log("Temporary file deleted");
}
```

## BlobClient

The `BlobClient` class provides a way to interact with GenSX blob storage outside of the GenSX workflow context, such as from regular Node.js applications or server endpoints.

### Import

```tsx
import { BlobClient } from "@gensx/storage";
```

### Constructor

```tsx
constructor(props?: BlobProviderProps)
```

#### Parameters

| Parameter | Type               | Default | Description                           |
| --------- | ------------------ | ------- | ------------------------------------- |
| `props`   | `BlobProviderProps` | `{}`   | Optional configuration properties     |

#### Example

```tsx
// Default client (uses filesystem locally, cloud in production)
const blobClient = new BlobClient();

// Explicitly use filesystem storage
const localClient = new BlobClient({
  kind: "filesystem",
  rootDir: "./my-data"
});

// Explicitly use cloud storage with a prefix
const cloudClient = new BlobClient({
  kind: "cloud",
  defaultPrefix: "app-data/"
});
```

### Methods

#### getBlob

Get a blob instance for a specific key.

```tsx
getBlob<T = unknown>(key: string): Blob<T>
```

##### Example

```tsx
const userBlob = blobClient.getBlob<UserProfile>("users/123.json");
const profile = await userBlob.getJSON();

// Update the profile
profile.lastLogin = new Date().toISOString();
await userBlob.putJSON(profile);
```

#### listBlobs

List all blob keys with an optional prefix.

```tsx
async listBlobs(prefix?: string): Promise<string[]>
```

##### Example

```tsx
const chatHistory = await blobClient.listBlobs("chats/");
console.log("Chat histories:", chatHistory);
```

#### blobExists

Check if a blob exists.

```tsx
async blobExists(key: string): Promise<boolean>
```

##### Example

```tsx
if (await blobClient.blobExists("settings.json")) {
  console.log("Settings file exists");
} else {
  console.log("Need to create settings file");
}
```

#### deleteBlob

Delete a blob.

```tsx
async deleteBlob(key: string): Promise<DeleteBlobResult>
```

##### Example

```tsx
const { deleted } = await blobClient.deleteBlob("temp/cache.json");
if (deleted) {
  console.log("Cache file was deleted");
}
```

### Usage in applications

The BlobClient is particularly useful when you need to access blob storage from:

- Express.js or Next.js API routes
- Background jobs or workers
- Custom scripts or tools
- Any Node.js application outside the GenSX workflow context

```tsx
// Example: Using BlobClient in an Express handler
import express from 'express';
import { BlobClient } from '@gensx/storage';

const app = express();
const blobClient = new BlobClient();

// Save user data endpoint
app.post('/api/users/:userId', async (req, res) => {
  try {
    const { userId } = req.params;
    const userBlob = blobClient.getBlob(`users/${userId}.json`);

    // Get existing profile or create new one
    const existingProfile = await userBlob.getJSON() || {};

    // Merge with updated data
    const updatedProfile = {
      ...existingProfile,
      ...req.body,
      updatedAt: new Date().toISOString()
    };

    // Save the updated profile
    await userBlob.putJSON(updatedProfile);

    res.json({ success: true });
  } catch (error) {
    console.error('Error saving user data:', error);
    res.status(500).json({ error: 'Failed to save user data' });
  }
});

app.listen(3000, () => {
  console.log('Server running on port 3000');
});
```

# SQL database

GenSX's SQL database service provides zero-configuration SQLite databases. It enables you to create, query, and manage relational data without worrying about infrastructure or database administration. Because new databases can be provisioned in milliseconds, they are perfect for per-agent or per workflow state.

Cloud databases are powered by [Turso](https://turso.tech), with several properties that make them ideal for AI agents and workflows:

- **Millisecond provisioning**: Databases are created on-demand in milliseconds, making them perfect for ephemeral workloads like parsing and querying user-uploaded CSVs or creating per-agent structured data stores.
- **Strong consistency**: All operations are linearizable, maintaining an ordered history, with writes fully serialized and subsequent writes awaiting transaction completion.
- **Zero configuration**: Like all GenSX storage components, databases work identically in both development and production environments with no setup required.
- **Local development**: Uses libsql locally to enable a fast, isolated development loop without external dependencies.

## Basic usage

To use SQL databases in your GenSX application:

1. Install the storage package:

   ```bash
   npm install @gensx/storage
   ```

2. Add the `DatabaseProvider` to your workflow:

   ```tsx
   import { DatabaseProvider } from "@gensx/storage";

   const Workflow = ({ input }) => (
     <DatabaseProvider>
       <YourComponent input={input} />
     </DatabaseProvider>
   );
   ```

3. Access databases within your components using the `useDatabase` hook:

   ```tsx
   import { useDatabase } from "@gensx/storage";

   const db = await useDatabase("my-database");
   ```

### Executing queries

The simplest way to interact with a database is by executing SQL queries:

```tsx
import * as gensx from "@gensx/core";
import { useDatabase } from "@gensx/storage";

const QueryTeamStats = gensx.Component("QueryTeamStats", async ({ team }) => {
  // Get access to a database (creates it if it doesn't exist)
  const db = await useDatabase("baseball");

  // Execute SQL queries with parameters
  const result = await db.execute("SELECT * FROM players WHERE team = ?", [
    team,
  ]);

  // Access query results
  console.log(result.columns); // Column names
  console.log(result.rows); // Data rows
  console.log(result.rowsAffected); // Number of rows affected

  return result.rows;
});
```

### Creating tables and initializing data

You can create database schema and populate it with data:

```tsx
const InitializeDatabase = gensx.Component("InitializeDatabase", async () => {
  const db = await useDatabase("baseball");

  // Create table if it doesn't exist
  await db.execute(`
      CREATE TABLE IF NOT EXISTS baseball_stats (
        player TEXT,
        team TEXT,
        position TEXT,
        at_bats INTEGER,
        hits INTEGER,
        runs INTEGER,
        home_runs INTEGER,
        rbi INTEGER,
        batting_avg REAL
      )
    `);

  // Check if data already exists
  const result = await db.execute("SELECT COUNT(*) FROM baseball_stats");
  const count = result.rows[0][0] as number;

  if (count === 0) {
    // Insert sample data
    await db.execute(`
        INSERT INTO baseball_stats (player, team, position, at_bats, hits, runs, home_runs, rbi, batting_avg)
        VALUES
          ('Marcus Bennett', 'Portland Pioneers', '1B', 550, 85, 25, 32, 98, 0.312),
          ('Ethan Carter', 'San Antonio Stallions', 'SS', 520, 92, 18, 24, 76, 0.298)
      `);
  }

  return "Database initialized";
});
```

## Practical examples

### Text-to-SQL agent

One of the most powerful applications is building a natural language to SQL interface:

```tsx
import * as gensx from "@gensx/core";
import { GSXChatCompletion, GSXTool } from "@gensx/openai";
import { useDatabase } from "@gensx/storage";
import { z } from "zod";

// Create a tool that executes SQL queries
const queryTool = new GSXTool({
  name: "execute_query",
  description: "Execute a SQL query against the baseball database",
  schema: z.object({
    query: z.string().describe("The SQL query to execute"),
  }),
  run: async ({ query }) => {
    const db = await useDatabase("baseball");
    const result = await db.execute(query);
    return JSON.stringify(result, null, 2);
  },
});

// SQL Copilot component that answers questions using SQL
const SqlCopilot = gensx.Component("SqlCopilot", ({ question }) => (
  <GSXChatCompletion
    messages={[
      {
        role: "system",
        content: `You are a SQL assistant. The database has a baseball_stats table with
          columns: player, team, position, at_bats, hits, runs, home_runs, rbi, batting_avg.
          Use the execute_query tool to run SQL queries.`,
      },
      { role: "user", content: question },
    ]}
    model="gpt-4o-mini"
    tools={[queryTool]}
  >
    {(result) => result.choices[0].message.content}
  </GSXChatCompletion>
));
```

### Transactions with batch operations

For operations that need to be performed atomically, you can use batch operations:

```tsx
const TransferFunds = gensx.Component(
  "TransferFunds",
  async ({ fromAccount, toAccount, amount }) => {
    const db = await useDatabase("banking");

    try {
      // Execute multiple statements as a transaction
      const result = await db.batch([
        {
          sql: "UPDATE accounts SET balance = balance - ? WHERE account_id = ?",
          params: [amount, fromAccount],
        },
        {
          sql: "UPDATE accounts SET balance = balance + ? WHERE account_id = ?",
          params: [amount, toAccount],
        },
      ]);

      return { success: true, rowsAffected: result.rowsAffected };
    } catch (error) {
      return { success: false, error: error.message };
    }
  },
);
```

### Multi-statement scripts

For complex database changes, you can execute multiple statements at once:

```tsx
const SetupUserSystem = gensx.Component("SetupUserSystem", async () => {
  const db = await useDatabase("users");

  // Execute a SQL script with multiple statements
  await db.executeMultiple(`
      CREATE TABLE IF NOT EXISTS users (
        id TEXT PRIMARY KEY,
        name TEXT NOT NULL,
        email TEXT UNIQUE
      );

      CREATE TABLE IF NOT EXISTS user_preferences (
        user_id TEXT PRIMARY KEY,
        theme TEXT DEFAULT 'light',
        notifications BOOLEAN DEFAULT 1,
        FOREIGN KEY (user_id) REFERENCES users(id)
      );

      CREATE INDEX IF NOT EXISTS idx_users_email ON users(email);
    `);

  return "User system set up successfully";
});
```

### Database schema migrations

When you need to update your database schema, use migrations:

```tsx
const MigrateDatabase = gensx.Component(
  "MigrateDatabase",
  async ({ version }) => {
    const db = await useDatabase("app_data");

    if (version === "v2") {
      // Run migrations with foreign key checks disabled
      await db.migrate(`
        ALTER TABLE products ADD COLUMN category TEXT;
        CREATE TABLE product_categories (
          id INTEGER PRIMARY KEY,
          name TEXT NOT NULL,
          description TEXT
        );
      `);

      return "Database migrated to v2";
    }

    return "No migration needed";
  },
);
```

## Development vs. production

GenSX SQL databases work identically in both local development and cloud environments:

- **Local development**: Databases are stored as SQLite files in the `.gensx/databases` directory by default
- **Cloud deployment**: Databases are automatically provisioned in the cloud

If you don't specify a "kind" that the framework auto-infers this value for you based on the runtime environment.

No code changes are needed when moving from development to production.

## Use cases

### Data-backed agents

Create agents that can query and update structured data, using the components defined above:

```tsx
const DataAnalyst = gensx.Component("DataAnalyst", async ({ query }) => {
  // Initialize the database with the baseball stats
  await InitializeDatabase();

  // Use the SQL Copilot to answer the question
  return <SqlCopilot question={query} />;
});
```

### User data storage

Store user data and preferences in a structured format:

```tsx
const UserPreferences = gensx.Component(
  "UserPreferences",
  async ({ userId, action, data }) => {
    const db = await useDatabase("user_data");

    if (action === "get") {
      const result = await db.execute(
        "SELECT * FROM preferences WHERE user_id = ?",
        [userId],
      );
      return result.rows.length > 0 ? result.rows[0] : null;
    } else if (action === "set") {
      await db.execute(
        "INSERT OR REPLACE INTO preferences (user_id, settings) VALUES (?, ?)",
        [userId, JSON.stringify(data)],
      );
      return { success: true };
    }
  },
);
```

### Collaborative workflows

Build workflows that share structured data between steps:

```tsx
const DataCollector = gensx.Component("DataCollector", async ({ source }) => {
  const db = await useDatabase("workflow_data");
  // Collect data from source and store in database
  // ...
  return { success: true };
});

const DataAnalyzer = gensx.Component("DataAnalyzer", async () => {
  const db = await useDatabase("workflow_data");
  // Analyze data from database
  // ...
  return { results: "..." };
});
```

## Reference

See the [database component reference](docs/component-reference/storage-components/database-reference) for full details.

# Search

GenSX's Cloud search service provides full-text and vector search for AI applications. It enables you to store, query, and manage vector embeddings for semantic search, retrieval-augmented generation (RAG), and other AI use cases.

Search is powered by [turbopuffer](https://turbopuffer.com/), fully featured and ready for AI workloads:

- **Combined vector and keyword search**: Perform hybrid searches using both semantic similarity (vectors) and keyword matching (BM25).
- **Millisecond query latency**: Get results quickly, even with large vector collections.
- **Flexible filtering**: Apply metadata filters to narrow down search results based on categories, timestamps, or any custom attributes.

## Basic usage

To use search in your GenSX application:

1. Install the storage package:

   ```bash
   npm install @gensx/storage
   ```

2. Add the `SearchProvider` to your workflow:

   ```tsx
   import { SearchProvider } from "@gensx/storage";

   const Workflow = gensx.Component("SearchWorkflow", { input }) => (
     <SearchProvider>
       <YourComponent input={input} />
     </SearchProvider>
   );
   ```

3. Access search namespaces within your components using the `useSearch` hook:

   ```tsx
   import { useSearch } from "@gensx/storage";

   const search = await useSearch("documents");
   ```

### Storing vector embeddings

The first step in using search is to convert your data into vector embeddings and store them:

```tsx
import * as gensx from "@gensx/core";
import { OpenAIEmbedding } from "@gensx/openai";
import { useSearch } from "@gensx/storage";

const IndexDocuments = gensx.Component(
  "IndexDocuments",
  async ({ documents }) => {
    // Get access to a search namespace
    const search = await useSearch("documents");

    // Generate embeddings for the documents
    const embeddings = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: documents.map((doc) => doc.text),
    });

    // Store the embeddings with original text as metadata
    await search.write({
      upsertRows: documents.map((doc, index) => ({
        id: doc.id,
        vector: embeddings.data[index].embedding,
        text: doc.text,
        category: doc.category,
        createdAt: new Date().toISOString(),
      })),
      distanceMetric: "cosine_distance",
    });

    return { success: true, count: documents.length };
  },
);
```

### Searching for similar documents

Once you've stored embeddings, you can search for semantically similar content:

```tsx
const SearchDocuments = gensx.Component(
  "SearchDocuments",
  async ({ query, category }) => {
    // Get access to the search namespace
    const search = await useSearch("documents");

    // Generate an embedding for the query
    const embedding = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: query,
    });

    // Build query options
    const queryOptions = {
      vector: embedding.data[0].embedding,
      includeAttributes: true,
      topK: 5, // Return top 5 results
    };

    // Add filters if category is specified
    if (category) {
      queryOptions.filters = {
        where: { category: { $eq: category } },
      };
    }

    // Perform the search
    const results = await search.query(queryOptions);

    // Process and return results
    return results.map((result) => ({
      id: result.id,
      text: result.attributes?.text,
      score: result.score,
    }));
  },
);
```

## Building a RAG application

Retrieval-Augmented Generation (RAG) is one of the most common use cases for vector search. Here's how to build a complete RAG workflow:

### Step 1: Index your documents

First, create a component to prepare and index your documents:

```tsx
const PrepareDocuments = gensx.Component("PrepareDocuments", async () => {
  // Sample baseball player data
  const documents = [
    {
      id: "1",
      text: "Marcus Bennett is a first baseman for the Portland Pioneers. He has 32 home runs this season.",
      category: "player",
    },
    {
      id: "2",
      text: "Ethan Carter plays shortstop for the San Antonio Stallions with 24 home runs.",
      category: "player",
    },
    {
      id: "3",
      text: "The Portland Pioneers are leading the Western Division with a 92-70 record.",
      category: "team",
    },
  ];

  // Index the documents
  return <IndexDocuments documents={documents} />;
});
```

### Step 2: Create a query tool

Next, create a tool that can access your search index:

```tsx
import { GSXTool } from "@gensx/openai";
import { z } from "zod";

// Define a tool to query the search index
const queryTool = new GSXTool({
  name: "query",
  description: "Query the baseball knowledge base",
  schema: z.object({
    query: z.string().describe("The text query to search for"),
  }),
  run: async ({ query }) => {
    // Access search index
    const search = await useSearch("baseball");

    // Generate query embedding
    const embedding = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: query,
    });

    // Search for relevant documents
    const results = await search.query({
      vector: embedding.data[0].embedding,
      includeAttributes: true,
    });

    // Return formatted results
    return JSON.stringify(
      results.map((r) => r.attributes?.text),
      null,
      2,
    );
  },
});
```

### Step 3: Create the RAG agent

Now, create an agent that uses the query tool to access relevant information:

```tsx
const RagAgent = gensx.Component("RagAgent", ({ question }) => (
  <GSXChatCompletion
    messages={[
      {
        role: "system",
        content: `You are a baseball expert assistant. Use the query tool to
          look up relevant information before answering questions.`,
      },
      { role: "user", content: question },
    ]}
    model="gpt-4o-mini"
    tools={[queryTool]}
  >
    {(result) => result.choices[0].message.content}
  </GSXChatCompletion>
));
```

### Step 4: Combine Everything in a Workflow

Finally, put it all together in a workflow:

```tsx
const RagWorkflow = gensx.Component(
  "RagWorkflow",
  async ({ question, shouldReindex }) => {
    // Optionally reindex documents
    if (shouldReindex) {
      await PrepareDocuments();
    }

    // Use the RAG agent to answer the question
    return <RagAgent question={question} />;
  },
);
```

## Practical examples

### Agent memory system

One powerful application of vector search is creating a long-term memory system for AI agents:

```tsx
import * as gensx from "@gensx/core";
import { OpenAIEmbedding } from "@gensx/openai";
import { useSearch } from "@gensx/storage";

// Component to store a memory
const StoreMemory = gensx.Component(
  "StoreMemory",
  async ({ userId, memory, importance = "medium" }) => {
    const search = await useSearch(`memories-${userId}`);

    // Generate embedding for this memory
    const embedding = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: memory,
    });

    // Store the memory with metadata
    await search.write({
      upsertRows: [
        {
          id: `memory-${Date.now()}`,
          vector: embedding.data[0].embedding,
          content: memory,
          timestamp: new Date().toISOString(),
          importance: importance, // "high", "medium", "low"
          source: "user-interaction",
        },
      ],
      distanceMetric: "cosine_distance",
    });

    return { success: true };
  },
);

// Component to recall relevant memories
const RecallMemories = gensx.Component(
  "RecallMemories",
  async ({ userId, context, maxResults = 5 }) => {
    const search = await useSearch(`memories-${userId}`);

    // Generate embedding for the context
    const embedding = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: context,
    });

    // Query for relevant memories, prioritizing important ones
    const results = await search.query({
      vector: embedding.data[0].embedding,
      topK: maxResults,
      includeAttributes: true,
      // Optional: rank by both relevance and importance
      rankBy: ["attributes.importance", "asc"],
    });

    // Format memories for the agent
    return results.map((result) => ({
      content: result.attributes?.content,
      timestamp: result.attributes?.timestamp,
      relevance: result.score.toFixed(3),
    }));
  },
);

// Component that uses memories in a conversation
const MemoryAwareAgent = gensx.Component(
  "MemoryAwareAgent",
  async ({ userId, userMessage }) => {
    // Recall relevant memories based on the current conversation
    const memories = await RecallMemories({
      userId,
      context: userMessage,
      maxResults: 3,
    });

    // Use memories to inform the response
    const response = await ChatCompletion.run({
      model: "gpt-4o-mini",
      messages: [
        {
          role: "system",
          content: `You are an assistant with memory. Consider these relevant memories about this user:
          ${memories.map((m) => `[${m.timestamp}] ${m.content} (relevance: ${m.relevance})`).join("\n")}`,
        },
        { role: "user", content: userMessage },
      ],
    });

    // Store this interaction as a new memory
    await StoreMemory({
      userId,
      memory: `User asked: "${userMessage}". I replied: "${response}"`,
      importance: "medium",
    });

    return response;
  },
);
```

### Knowledge base search

Another powerful application is a knowledge base with faceted search capabilities:

```tsx
const SearchKnowledgeBase = gensx.Component(
  "SearchKnowledgeBase",
  async ({ query, filters = {} }) => {
    const search = await useSearch("knowledge-base");

    // Generate embedding for the query
    const embedding = await OpenAIEmbedding.run({
      model: "text-embedding-3-small",
      input: query,
    });

    // Build filter conditions from user-provided filters
    let filterConditions = ["And", []];

    if (filters.category) {
      filterConditions[1].push(["category", "Eq", filters.category]);
    }

    if (filters.dateRange) {
      filterConditions[1].push(["publishedDate", "Gte", filters.dateRange.start]);
      filterConditions[1].push(["publishedDate", "Lte", filters.dateRange.end]);
    }

    if (filters.tags && filters.tags.length > 0) {
      filterConditions[1].push(["tags", "ContainsAny", filters.tags]);
    }

    // Perform hybrid search (vector + keyword) with filters
    const results = await search.query({
      vector: embedding.data[0].embedding,
      rankBy: ["text", "BM25", query],
      includeAttributes: true,
      topK: 10,
      filters: filterConditions[1].length > 0 ? filterConditions : undefined,
    });

    // Return formatted results
    return results.map((result) => ({
      title: result.attributes?.title,
      snippet: result.attributes?.snippet,
      url: result.attributes?.url,
      category: result.attributes?.category,
      tags: result.attributes?.tags,
      score: result.score,
    }));
  },
);
```

## Advanced usage

### Filtering by metadata

Use filters to narrow down search results:

```tsx
const search = await useSearch("articles");

// Search with filters
const results = await search.query({
  vector: queryEmbedding,
  filters: [
    "And",
    [
      ["category", "Eq", "sports"],
      ["publishDate", "Gte", "2023-01-01"],
      ["publishDate", "Lt", "2024-01-01"],
      ["author", "In", ["Alice", "Bob", "Carol"]],
    ],
  ],
});
```

### Updating schema

Manage your vector collection's schema:

```tsx
const search = await useSearch("products");

// Get current schema
const currentSchema = await search.getSchema();

// Update schema to add new fields
await search.updateSchema({
  ...currentSchema,
  newField: { type: "number" },
  anotherField: { type: "string[]" },
});
```

## Reference

See the [search component reference](docs/component-reference/storage-components/search-reference) for full details.

# Blob storage

Blob storage provides zero-configuration persistent storage for your GenSX applications. It enables you to store JSON, text, or binary data for your agents and workflows without worrying about managing infrastructure.

## Basic usage

To use blob storage in your GenSX application:

1. Install the storage package:

   ```bash
   npm install @gensx/storage
   ```

2. Add the `BlobProvider` to your workflow:

   ```tsx
   import { BlobProvider } from "@gensx/storage";

   const Workflow = ({ input }) => (
     <BlobProvider>
       <YourComponent input={input} />
     </BlobProvider>
   );
   ```

3. Access blobs within your components using the `useBlob` hook:

   ```tsx
   import { useBlob } from "@gensx/storage";

   const blob = useBlob("your-key.json");
   ```

### Reading blobs

The `useBlob` hook provides simple methods to read different types of data:

```tsx
import { useBlob } from "@gensx/storage";

// Read JSON data
const profileBlob = useBlob("users/profile.json");
const profile = await profileBlob.getJSON();
console.log(profile?.name);

// Read text data
const notesBlob = useBlob("notes/meeting.txt");
const notes = await notesBlob.getString();

// Read binary data
const imageBlob = useBlob("images/photo.jpg");
const image = await imageBlob.getRaw();
console.log(image?.contentType); // "image/jpeg"
```

### Writing blobs

You can write data in various formats:

```tsx
import { useBlob } from "@gensx/storage";

// Write JSON data
const profileBlob = useBlob("users/profile.json");
await profileBlob.putJSON({ name: "Alice", preferences: { theme: "dark" } });

// Write text data
const notesBlob = useBlob("notes/meeting.txt");
await notesBlob.putString("Meeting agenda:\n1. Project updates\n2. Action items");

// Write binary data
const imageBlob = useBlob("images/photo.jpg");
await imageBlob.putRaw(imageBuffer, {
  contentType: "image/jpeg",
  metadata: { originalName: "vacation.jpg" }
});
```

## Practical examples

### Persistent chat threads

One of the most common use cases for blob storage is maintaining conversation history across multiple interactions:

```tsx
import * as gensx from "@gensx/core";
import { ChatCompletion } from "@gensx/openai";
import { useBlob } from "@gensx/storage";

interface ChatMessage {
  role: "system" | "user" | "assistant";
  content: string;
}

const ChatWithMemory = gensx.Component(
  "ChatWithMemory",
  async ({ userInput, threadId }) => {
    // Get a reference to the thread's storage
    const blob = useBlob<ChatMessage[]>(`chats/${threadId}.json`);

    // Load existing messages or start with a system prompt
    const messages = (await blob.getJSON()) ?? [
      {
        role: "system",
        content: "You are a helpful assistant.",
      },
    ];

    // Add the new user message
    messages.push({ role: "user", content: userInput });

    // Generate a response using the full conversation history
    const response = await ChatCompletion.run({
      model: "gpt-4o-mini",
      messages,
    });

    // Save the assistant's response to the history
    messages.push({ role: "assistant", content: response });
    await blob.putJSON(messages);

    return response;
  },
);
```

### Memory for agents

For more complex agents, you can store structured memory:

```tsx
interface AgentMemory {
  facts: string[];
  tasks: { description: string; completed: boolean }[];
  lastUpdated: string;
}

const AgentWithMemory = gensx.Component(
  "AgentWithMemory",
  async ({ input, agentId }) => {
    // Load agent memory
    const memoryBlob = useBlob<AgentMemory>(`agents/${agentId}/memory.json`);
    const memory = (await memoryBlob.getJSON()) ?? {
      facts: [],
      tasks: [],
      lastUpdated: new Date().toISOString(),
    };

    // Process input using memory
    // ...

    // Update and save memory
    memory.facts.push("New fact learned from input");
    memory.tasks.push({ description: "Follow up on X", completed: false });
    memory.lastUpdated = new Date().toISOString();

    await memoryBlob.putJSON(memory);

    return "Response that uses memory context";
  },
);
```

### Saving files

You can use blob storage to save and retrieve binary files like images:

```tsx
const StoreImage = gensx.Component(
  "StoreImage",
  async ({ imageBuffer, filename }) => {
    const imageBlob = useBlob(`images/${filename}`);

    // Save image with metadata
    await imageBlob.putRaw(imageBuffer, {
      contentType: "image/png",
      metadata: {
        uploadedAt: new Date().toISOString(),
        pixelSize: "800x600",
      },
    });

    return { success: true, path: `images/${filename}` };
  },
);

const GetImage = gensx.Component("GetImage", async ({ filename }) => {
  const imageBlob = useBlob(`images/${filename}`);

  // Check if image exists
  const exists = await imageBlob.exists();
  if (!exists) {
    return { found: false };
  }

  // Get the image with metadata
  const image = await imageBlob.getRaw();

  return {
    found: true,
    data: image?.content,
    contentType: image?.contentType,
    metadata: image?.metadata,
  };
});
```

### Optimistic concurrency control

For scenarios where multiple processes might update the same data, you can use ETags to prevent conflicts:

```tsx
const UpdateCounter = gensx.Component(
  "UpdateCounter",
  async ({ counterName }) => {
    const blob = useBlob(`counters/${counterName}.json`);

    // Get current value and metadata
    const counter = (await blob.getJSON<{ value: number }>()) ?? { value: 0 };
    const metadata = await blob.getMetadata();

    // Update counter
    counter.value += 1;

    try {
      // Save with ETag to prevent conflicts
      await blob.putJSON(counter, {
        etag: metadata?.etag,
      });
      return { success: true, value: counter.value };
    } catch (error) {
      if (error.name === "BlobConflictError") {
        return {
          success: false,
          message: "Counter was updated by another process",
        };
      }
      throw error;
    }
  },
);
```

## Development vs. production

GenSX blob storage works identically in both local development and cloud environments:

- **Local development**: Blobs are stored in the `.gensx/blobs` directory by default
- **Cloud deployment**: Blobs are automatically stored in cloud storage

If you don't specify a "kind" that the framework auto-infers this value for you based on the runtime environment.

No code changes are needed when moving from development to production.

## Reference

See the [blob storage component reference](docs/component-reference/storage-components/blob-reference) for full details.

# gensx env unselect

The `gensx env unselect` command de-selects the currently selected environment for your project. This means subsequent commands will require explicit environment specification.

## Usage

```bash
gensx env unselect [options]
```

## Options

| Option                  | Description                                                                  |
| ----------------------- | ---------------------------------------------------------------------------- |
| `-p, --project <name>`  | Project name to unselect the environment in.                                 |
| `-h, --help`            | Display help for the command.                                                |

## Examples

```bash
# Unselect the current environment
gensx env unselect

# Unselect environment in a specific project
gensx env unselect --project my-app
```

## Notes

- You must be logged in to GenSX Cloud to unselect environments (`gensx login`)
- Unselecting an environment does not delete it, it just removes the selection.
- You can check if an environment is selected using `gensx env`
- To select a new environment, use `gensx env select`
- After unselecting, you'll need to specify the environment for each command that requires one

# gensx env

The `gensx env` command displays the name of the currently selected environment.

## Usage

```bash
gensx env [options]
```

## Options

| Option                  | Description                                                                  |
| ----------------------- | ---------------------------------------------------------------------------- |
| `-p, --project <name>`  | Project name to show environment details for.                                |
| `-h, --help`            | Display help for the command.                                                |


## Examples

```bash
# Show the current environment
gensx env

# Show the current environment for a specific project
gensx env --project my-app
```

## Notes

- You must be logged in to GenSX Cloud to show environment details (`gensx login`)
- You can use this command to verify your current environment before running important operations
- If no environment is selected, the command will indicate this

# gensx env select

The `gensx env select` command sets a specific environment as the active environment for your current project. This environment will be used by default for subsequent commands like `deploy` and `run`.

## Usage

```bash
gensx env select <name> [options]
```

## Arguments

| Argument | Description                                                                                |
| -------- | ------------------------------------------------------------------------------------------ |
| `<name>` | Name of the environment to select. |

## Options

| Option                  | Description                                                                  |
| ----------------------- | ---------------------------------------------------------------------------- |
| `-p, --project <name>`  | Project name to select the environment in.                                   |
| `-h, --help`            | Display help for the command.                                                |

## Description

This command:

1. Sets the specified environment as active for your current project
2. Updates your local configuration to remember this selection
3. Makes this environment the default target for subsequent commands

After selecting an environment:
- `gensx deploy` will deploy to this environment by default
- `gensx run` will run workflows in this environment by default
- You can still override the environment for specific commands using the `--env` option

## Examples

```bash
# Select the development environment
gensx env select dev

# Select a production environment in a specific project
gensx env select production --project my-app
```

## Notes

- You must be logged in to GenSX Cloud to select environments (`gensx login`)
- The selected environment persists across CLI sessions
- You can check the currently selected environment using `gensx env show`
- To unselect an environment, use `gensx env unselect`

# gensx env ls

The `gensx env ls` command lists all environments in your GenSX project.

## Usage

```bash
gensx env ls [options]
```

## Options

| Option                  | Description                                                                  |
| ----------------------- | ---------------------------------------------------------------------------- |
| `-p, --project <name>`  | Project name to list environments for.                                       |
| `-h, --help`            | Display help for the command.                                                |

## Examples

```bash
# List all environments in the current project
gensx env ls

# List environments in a specific project
gensx env ls --project my-app
```

## Notes

- You must be logged in to GenSX Cloud to list environments (`gensx login`)


# gensx env create

The `gensx env create` command creates a new environment in your GenSX project. Environments allow you to manage different deployment configurations (like development, staging, and production) for your workflows.

## Usage

```bash
gensx env create <name> [options]
```

## Arguments

| Argument | Description                                                                                |
| -------- | ------------------------------------------------------------------------------------------ |
| `<name>` | Name of the environment to create (e.g., "dev", "staging", "production"). |

## Options

| Option                  | Description                                                                  |
| ----------------------- | ---------------------------------------------------------------------------- |
| `-p, --project <name>`  | Project name to create the environment in.                                    |
| `-h, --help`            | Display help for the command.                                                |

## Examples

```bash
# Create a development environment
gensx env create dev

# Create a production environment in a specific project
gensx env create production --project my-app
```

## Notes

- You must be logged in to GenSX Cloud to create environments (`gensx login`)
- Each project can have multiple environments
- Environment names should be descriptive and follow a consistent naming convention
